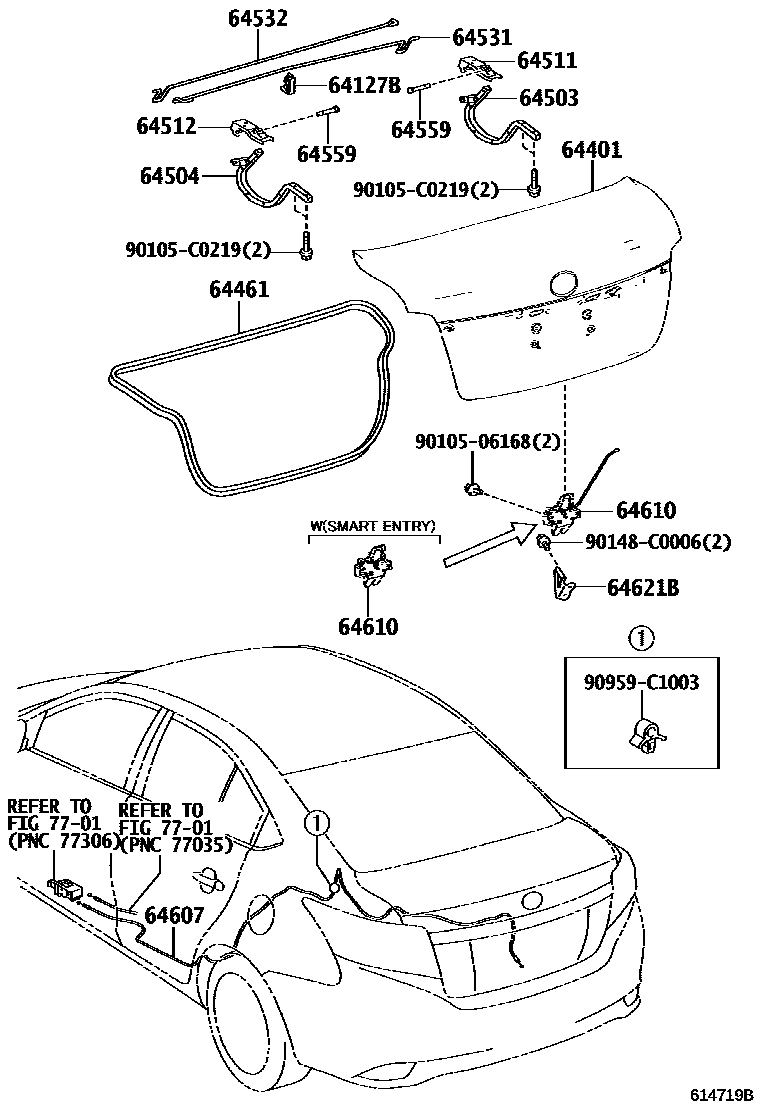

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D050iNSP15#201311-202008

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0D150iNSP15#201311-202008

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0D080iNSP15#201311-202008

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-0D030iNSP15#201311-202008

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-0D030iNSP15#201311-202008

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-0D120iNSP15#201311-202008

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64511-0D120iNSP15#201311-202008

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-0D160iNSP15#201311-202008

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-0D160iNSP150..4D201311-202008

64559PIN, LUGGAGE DOOR HINGE

main64559-12040iNSP15#201311-202008

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-0D190iNSP15#201311-201811

main64607-0D191iNSP151..4D201812-202008

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-02121iNSP151..4D..G201803-202008

main64600-0D030iNSP151..4D..G201311-201802

main64610-0D070iNSP150..4D201311-202008

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-0D040iNSP15#201311-202008

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010506168

main90105-06168

90105C0219

main90105-C0219

90148C0006

main90148-C0006

90959C1003

main90959-C1003

18 parts on this diagram · 1 diagram in section
