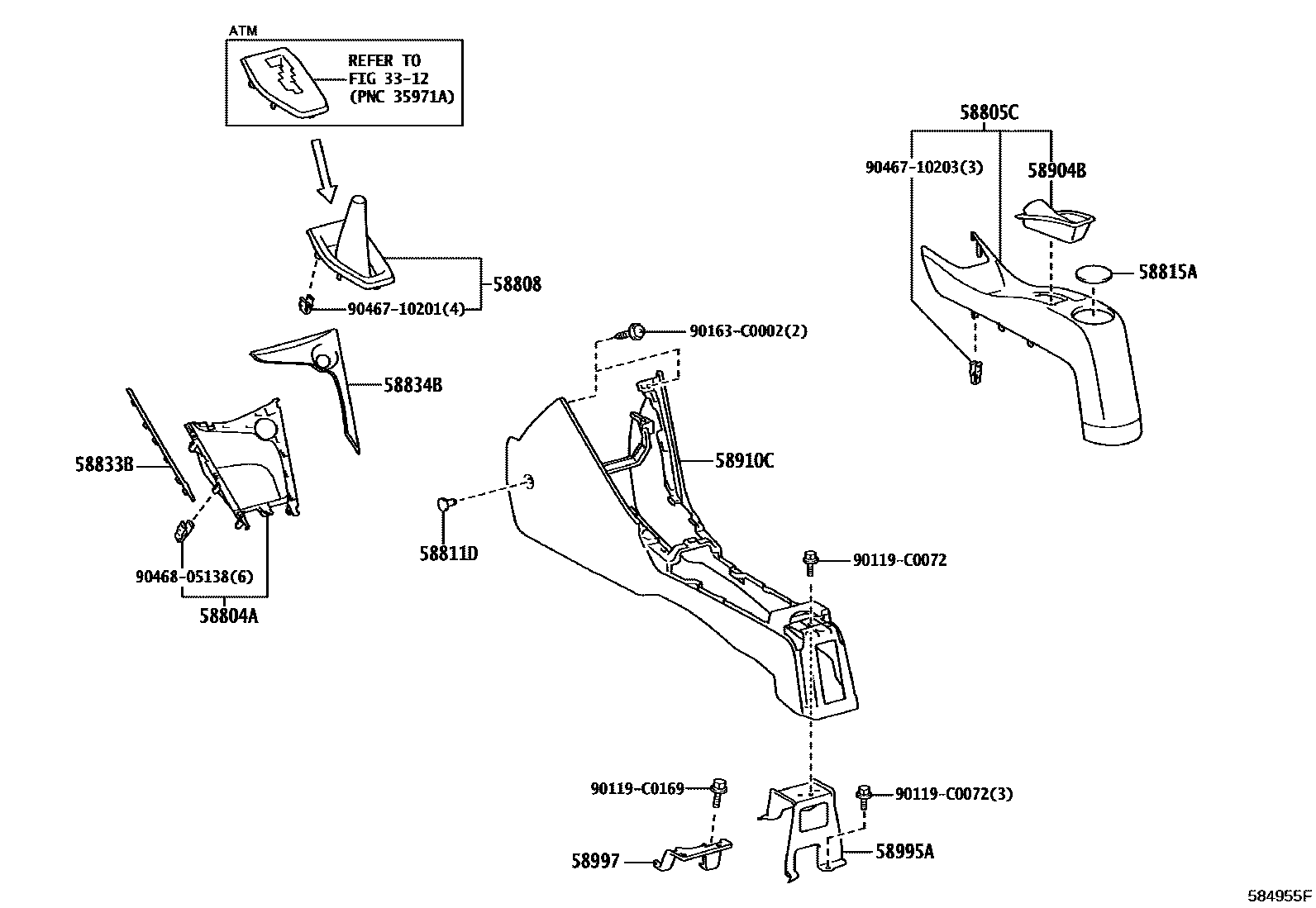

CONSOLE BOX & BRACKET
3312
58804APANEL SUB-ASSY, CONSOLE, UPPER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
WITH(ALUMINUM WHEEL),IVORY,TRIM0#
IVORY,TRIM0#
TWO-TONE PACKAGE,IVORY,TRIM0#
BLACK,TRIM2#
TWO-TONE PACKAGE,BLACK,TRIM2#
WITH(ALUMINUM WHEEL),BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM1#,2#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
DK. BROWN,TRIM0#,2#
58811DCLIP(FOR CONSOLE BOX)
58815ACARPET, CONSOLE BOX
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM1#,2#
58910CBOX ASSY, CONSOLE, REAR
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM1#,2#
BLACK,TRIM2#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
90119C0072
main90119-C0072
90119C0169
main90119-C0169
90163C0002
main90163-C0002
9046710201
main90467-10201
9046710203
main90467-10203
9046805138
main90468-05138
18 parts on this diagram · 2 diagrams in section
