FLOOR SIDE MEMBER
51096BHOOK SUB-ASSY, TRANSPORT, REAR LH
51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51902BHANGER SUB-ASSY, EXHAUST PIPE, NO.2
51963FHOOK, TRANSPORT
51964FHOOK, TRANSPORT, LH
53273CREINFORCEMENT, RADIATOR SUPPORT, RH
53274CREINFORCEMENT, RADIATOR SUPPORT, LH
5701HOLE PLUG
57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH
57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH
57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH
57413AMEMBER, FLOOR SIDE, INNER REAR RH
57414AMEMBER, FLOOR SIDE, INNER REAR LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57611AMEMBER, REAR FLOOR SIDE, RH
57612AMEMBER, REAR FLOOR SIDE, LH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57705EBRACKET SUB-ASSY, REAR SUSPENSHION MEMBER MOUNTING, RR RH
57706BBRACKET SUB-ASSY, REAR SUSPENSION ARM, REAR LH
57771PLATE, REAR SPRING, RH
57772PLATE, REAR SPRING, LH
58289DBRACKET, FLOOR BRAKE HOSE, REAR
RH
LH
90105C0186
main90105-C0186
9011506166
main90115-06166
90115C0014
main90115-C0014
90119C0146
main90119-C0146

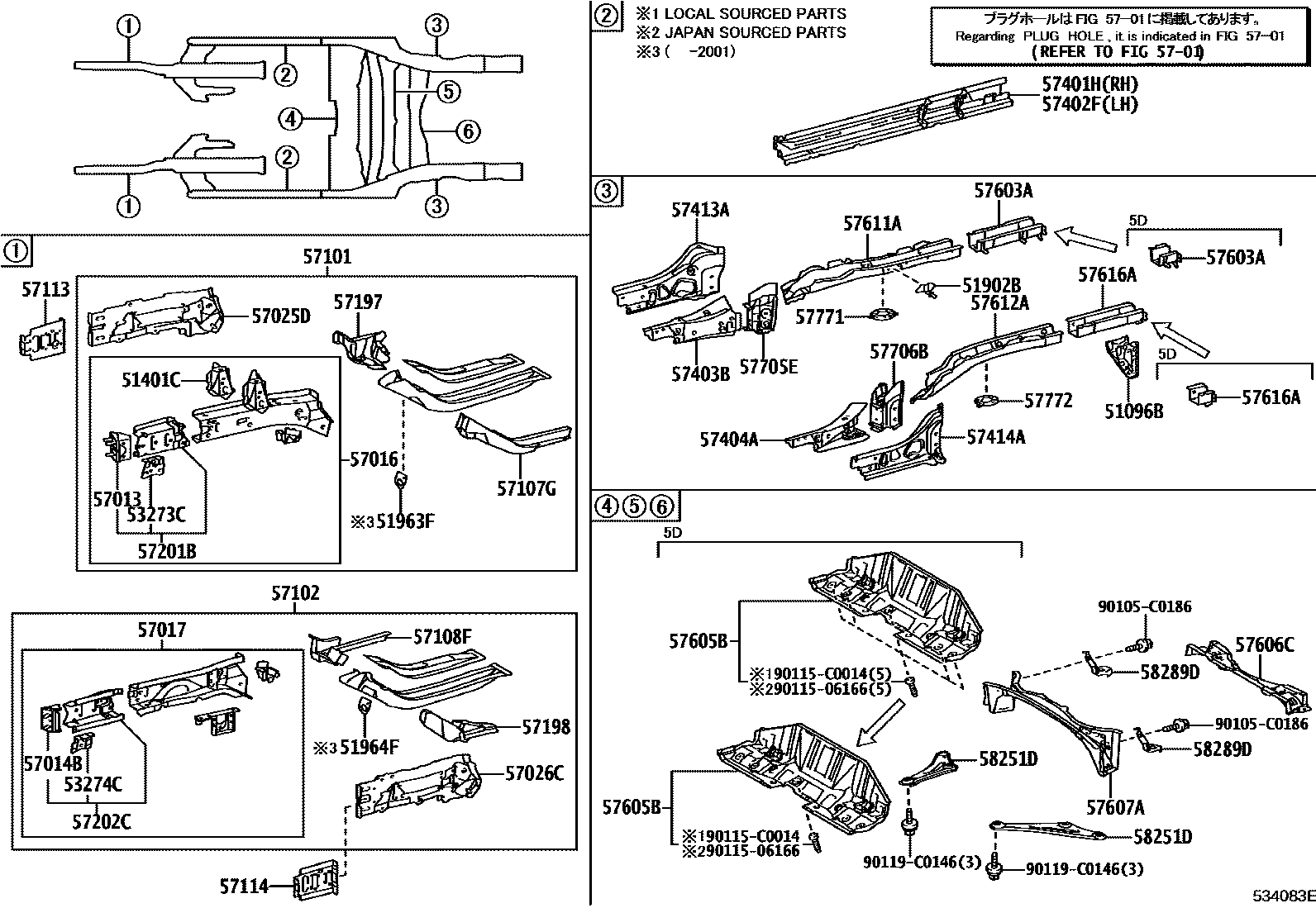

47 parts on this diagram · 1 diagram in section
