FRONT BUMPER & BUMPER STAY

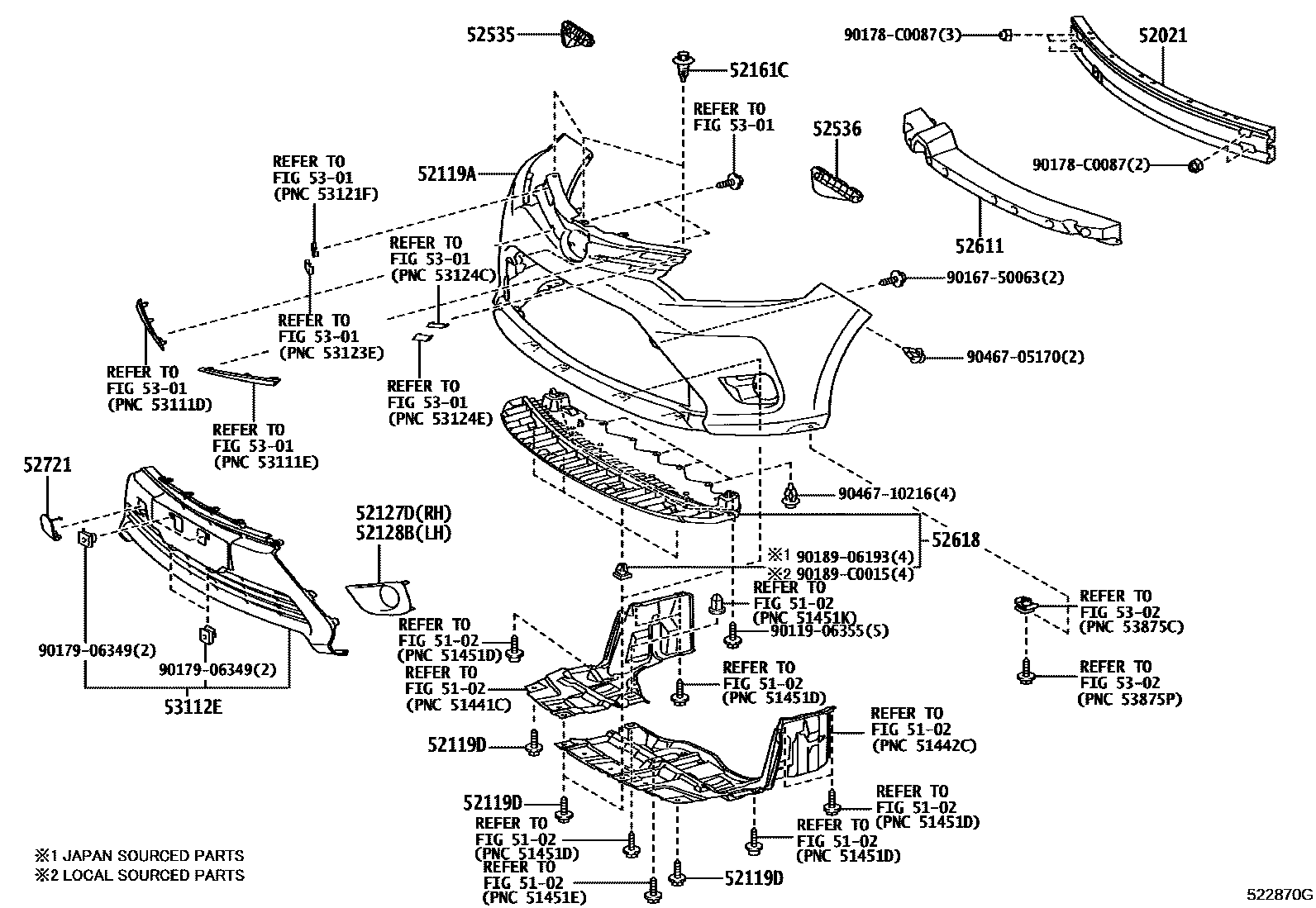

Parts diagram
5102SUSPENSION CROSSMEMBER & UNDER COVER
→ Go to FIG 51-02
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
main52021-0D130i201609-202004
52119ACOVER, FRONT BUMPER
main52119-0U924i201311-201609
PAINT REQ.
main52119-0U944i202008
PAINT REQ.
main52119-0Z987i201609-202004
PAINT REQ.
52119DSCREW, NO.1
main90159-60477×4i202008
(J)
main90159-C0049×4i202008
(L)
52127DCOVER, FRONT BUMPER HOLE, RH
main52127-0D300i201311-201609
NO PAINT REQ.
main52127-0D310i201311-201609
NO PAINT REQ.
main52127-0D610i201609-202008
NO PAINT REQ.
main52127-0D630i201609-202008
NO PAINT REQ.
main52127-0DB50i201703-202004
NO PAINT REQ.
main52127-0DB60i201703-202008
NO PAINT REQ.
main52127-0DF10i202008
NO PAINT REQ.
main52127-0DF20i202207
NO PAINT REQ.,20TH ANNIVERSARY PACKAGE
main52127-0DF90supersedes 52127-0DF20i202008
NO PAINT REQ.,MOON ROOF PACKAGE
52128BCOVER, FRONT BUMPER HOLE, LH
main52128-0D120i201311-201609
main52128-0D130i201311-201609
main52128-0D370i201609-202008
main52128-0D390i201609-202008
main52128-0D760i201703-202004
main52128-0D770i201703-202008
main52128-0DE80i202008
main52128-0DE90i202207
20TH ANNIVERSARY PACKAGE
main52128-0DF20supersedes 52128-0DE90i202008
MOON ROOF PACKAGE
52161CPIECE, FRONT BUMPER
main52161-02040×3i201311-201609
52535RETAINER, FRONT BUMPER SIDE, RH
main52535-0D110i201311-201609
52536RETAINER, FRONT BUMPER SIDE, LH
main52536-0D110i201311-201609
52611ABSORBER, FRONT BUMPER ENERGY
main52611-0D030i201311-201609
main52611-0D090i201609-202004
52618ABSORBER, FRONT BUMPER, LOWER
main52618-0D050i201311-201609
main52618-0D090i201609-202004
52721MOULDING, FRONT BUMPER EXTENSION, RH
main52721-0D050i201311-201609
main52721-0D130i201703-202004
main52721-0D180i201609-202004
main52721-0D190i201609-202008
main52721-0D720i202008
main52721-0D730i202008
main52721-0D740i202008
main52721-0D750i202008
5301RADIATOR GRILLE
→ Go to FIG 53-01
5302HOOD & FRONT FENDER
→ Go to FIG 53-02
53112EGRILLE, RADIATOR, LOWER NO.1
main53112-0D270i201311-201609
NO PAINT REQ.
main53112-0D480i201609-202004
NO PAINT REQ.
main53112-0D520i201609-202008
NO PAINT REQ.
main53112-0D790i201703-202004
NO PAINT REQ.
main53112-0DE10i202008
NO PAINT REQ.
main53112-0DE20i202008
NO PAINT REQ.
main53112-0DE30i202008
NO PAINT REQ.
main53112-0DE40i202008
NO PAINT REQ.
9011906355
main90119-06355
9016750063
main90167-50063
90178C0087
main90178-C0087
9017906349
main90179-06349
9018906193
main90189-06193
90189C0015
main90189-C0015
9046705170
main90467-05170
9046710216
main90467-10216

23 parts on this diagram · 5 diagrams in section
