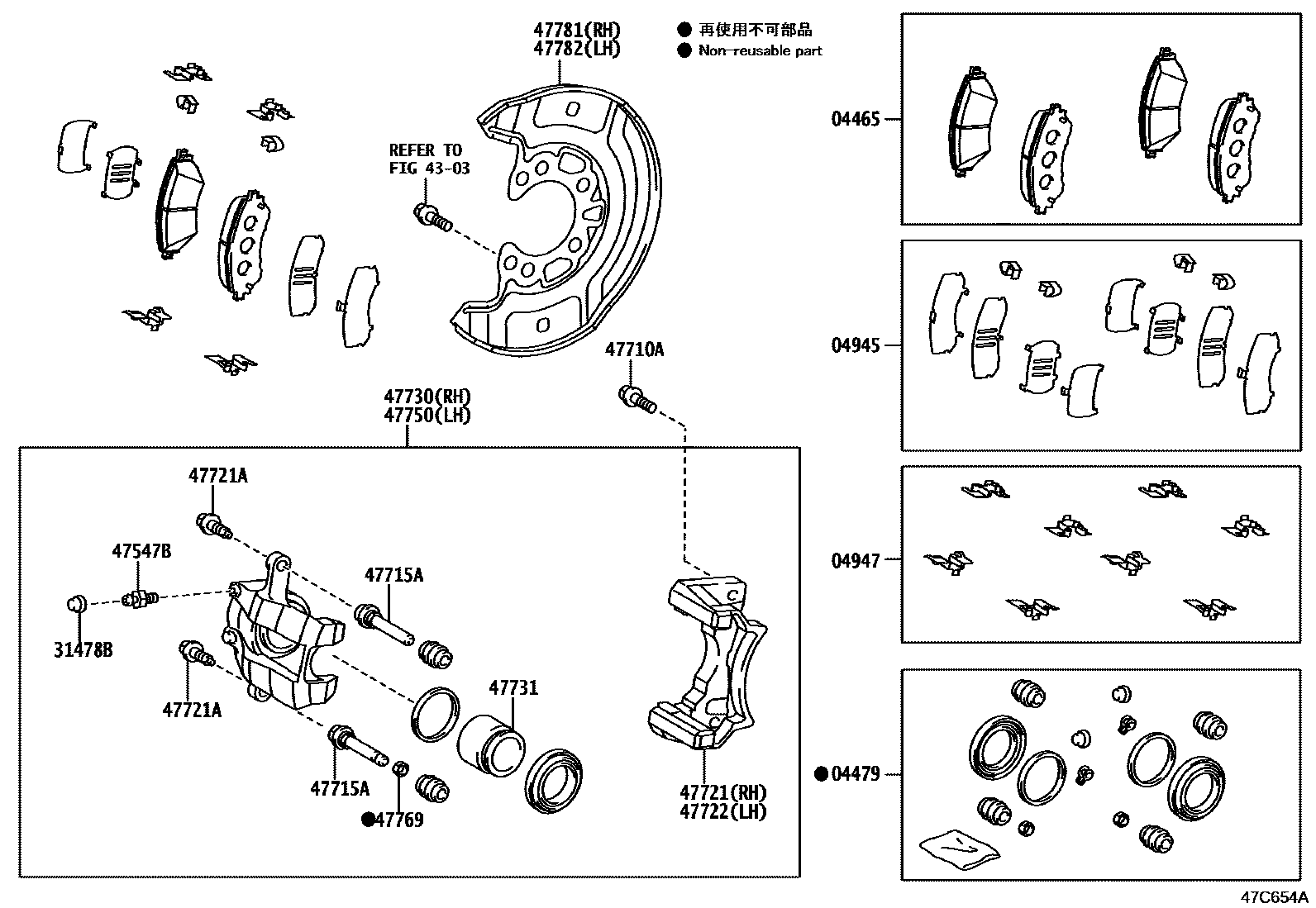

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0004 1 0005 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-09020iNSP150..5F201311-202004

MARK AK PA563H

main04465-0D190iNSP151201604-202008

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D210iNSP150..5F201311-202004

main04478-0D230iNSP151201604-202008

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0D110iNSP151201311-202004

main04945-0D120iNSP151201604-202008

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0D060iNSP150..5F201311-202004

main04947-0R020iNSP150..CVT201604-202008

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010iNSP15#201311-202008

4303FRONT AXLE HUB

→ Go to FIG 43-03

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNSP15#201311-202008

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-C0021iNSP151201311-202008

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0R020iNSP150..CVT201604-202008

main47715-0D210iNSP150..4FC201311-202004

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0D210iNSP150..4FC201311-202004

main47721-0D280iNSP151201604-202008

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA608iNSP151201311-202008

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0D150iNSP150..5F201311-202004

main47722-0D270iNSP151201604-202008

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D210iNSP151201311-202004

main47730-0D280iNSP151201604-202008

47731PISTON, FRONT DISC BRAKE

main47731-0D210iNSP151201311-202004

main47731-0D270iNSP151201604-202008

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D150iNSP151;NSP150..5F201311-202004

main47750-0D270iNSP151201604-202008

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0P010iNSP151201311-202004

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D140iNSP15#201311-202008

47782COVER, DISC BRAKE DUST, FRONT LH

main47781-0D140iNSP15#201311-202008

18 parts on this diagram · 3 diagrams in section
