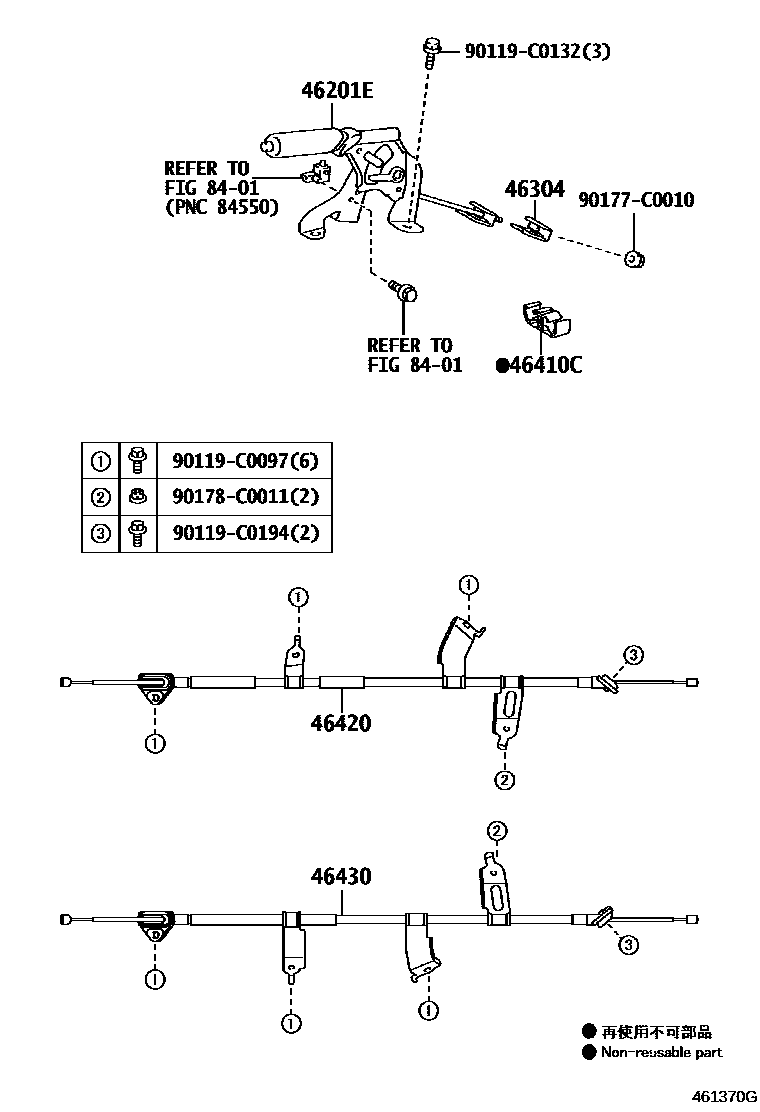

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0D300-A0iNSP15#201311-201609

IVORY,TRIM0#

main46201-0D300-C0iNSP150201609-202004

BLACK,TRIM2#

main46201-0D470-A0iNSP151..G,N201609-202008

IVORY,TRIM0#

main46201-0D470-C0iNSP151..N202008

BLACK,TRIM1#,2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0D020iNSP151201609-202008

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0D040iNSP15#201311-201609

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D250iNSP15#201311-201609

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D250iNSP15#201311-201609

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119C0097

main90119-C0097

90119C0132

main90119-C0132

90119C0194

main90119-C0194

90177C0010

main90177-C0010

90178C0011

main90178-C0011

11 parts on this diagram · 1 diagram in section
