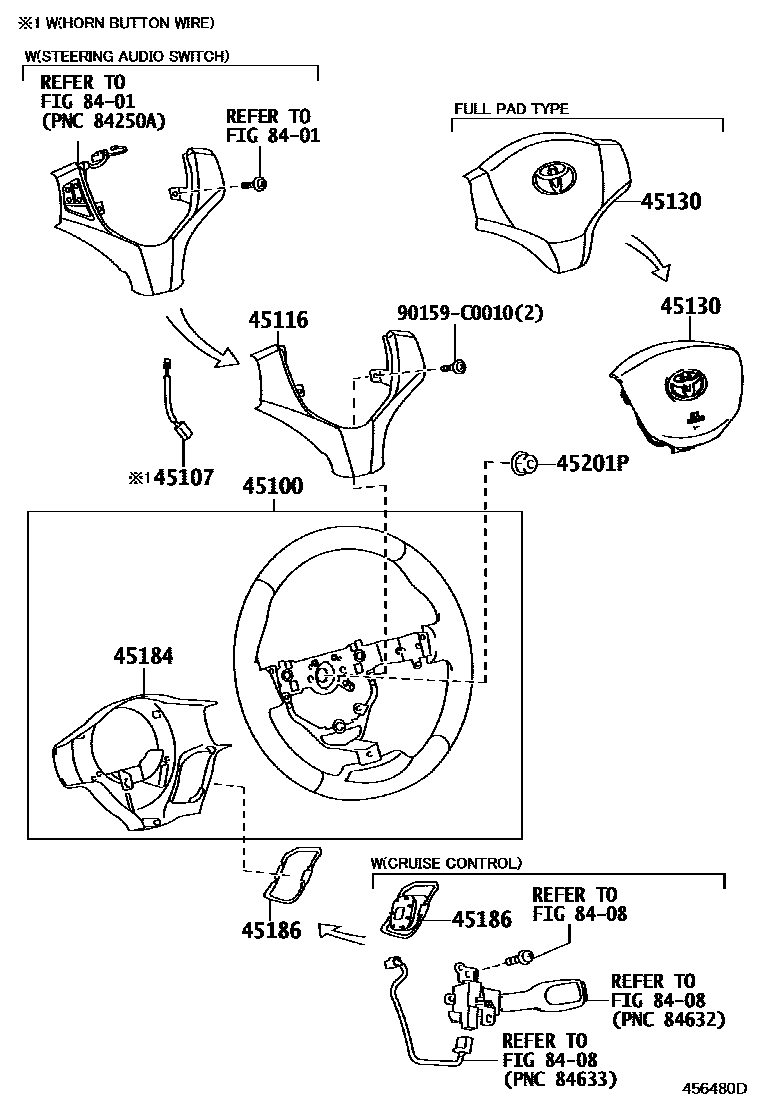

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0D530-C0iNSP151202008

3-SPOKE,URETHANE,BLACK,TRIM1#,2#

main45100-0D530-E0iNSP15#..N,R201311-201609

3-SPOKE,URETHANE,DK. BROWN,TRIM0#,2#

main45100-0D540-C0iNSP151..5D..G201703-202008

3-SPOKE,LEATHER,BLACK,TRIM0#,2#

main45100-0D540-E0iNSP151..G201311-201609

3-SPOKE,LEATHER,DK. BROWN,TRIM0#,2#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-02030iNSP15#..N,R; NSP151..N201609-202008

MOON ROOF-WITH

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-0D090-C0iNSP151..N201609-202008

BLACK,TRIM0#,2#

main45116-0D090-E0iNSP15#..N201311-201609

DK. BROWN,TRIM0#,2#

45130BUTTON ASSY, HORN

main45130-0D380-C0iNSP150201609-202004

BLACK,TRIM0#,2#

main45130-0D380-E0iNSP15#..R201311-201609

DK. BROWN,TRIM0#,2#

main45130-0D390-C0iNSP151..4D..G; NSP151..4D..N;NSP151..5D..(G,N)201609-202008

BLACK,TRIM0#; BLACK,TRIM0#,2#

main45130-0D390-E0iNSP15#..G,N201311-201609

DK. BROWN,TRIM0#,2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-0D100-C0iNSP150201609-202004

BLACK,TRIM0#,2#

main45184-0D100-E0iNSP15#201311-201609

DK. BROWN,TRIM0#,2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-0D040-C0iNSP151202008

BLACK,TRIM1#,2#

main45186-0D040-E0iNSP15#..N,R201311-201609

DK. BROWN,TRIM0#,2#

main45186-0D100-C0iNSP151..G201609-202008

BLACK,TRIM0#

main45186-0D100-E0iNSP151..G201311-201609

DK. BROWN,TRIM0#,2#

45201PNUT, STEERING WHEEL SET

main90178-C0025iNSP151202008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

90159C0010

main90159-C0010

10 parts on this diagram · 1 diagram in section
