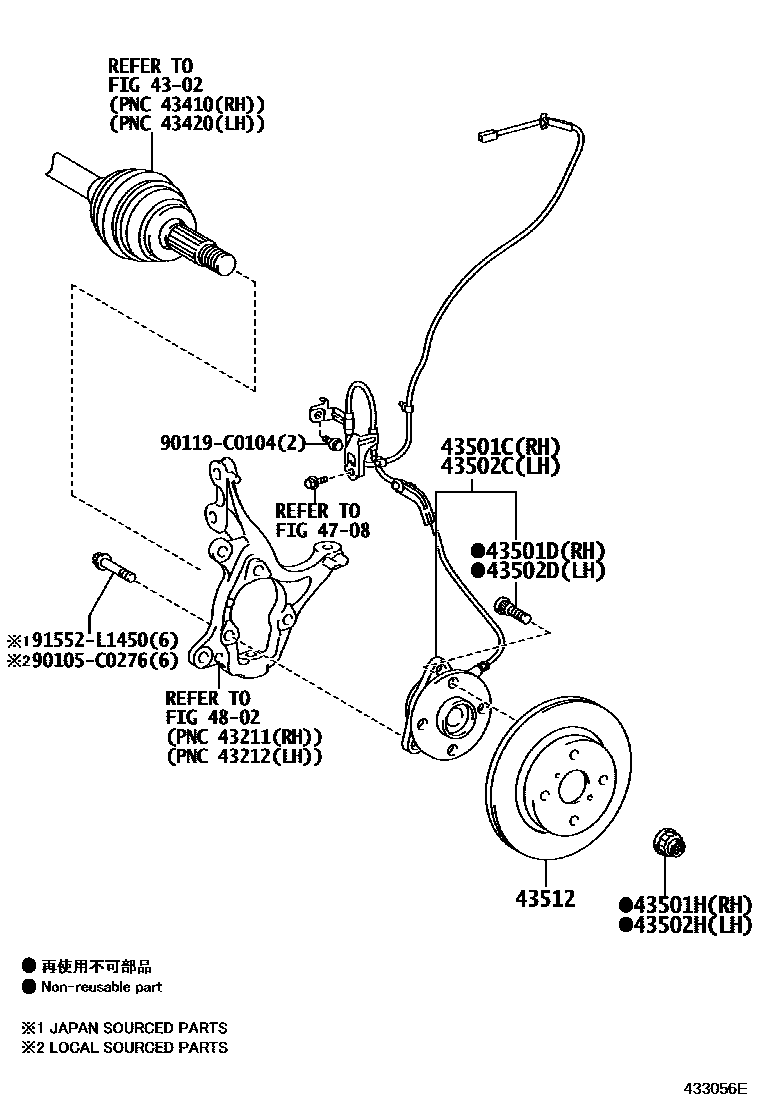

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0D090iNSP151201311-202008

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02082iNSP151201311-202008

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNSP15#201311-201403

main90177-22001iNSP15#201403-202008

(J)

main90177-C0004iNSP15#201403-202008

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-0D080iNSP15#201311-202008

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02082iNSP15#201311-202008

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNSP151201403-202008

(J)

main90177-22001iNSP15#201311-201403

main90177-C0004iNSP151201403-202008

(L)

43512DISC, FRONT

main43512-0D200iNSP151201604-202008

main43512-0D220iNSP150..4FC201311-202004

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

90105C0276

main90105-C0276

90119C0104

main90119-C0104

91552L1450

main91552-L1450

13 parts on this diagram · 1 diagram in section
