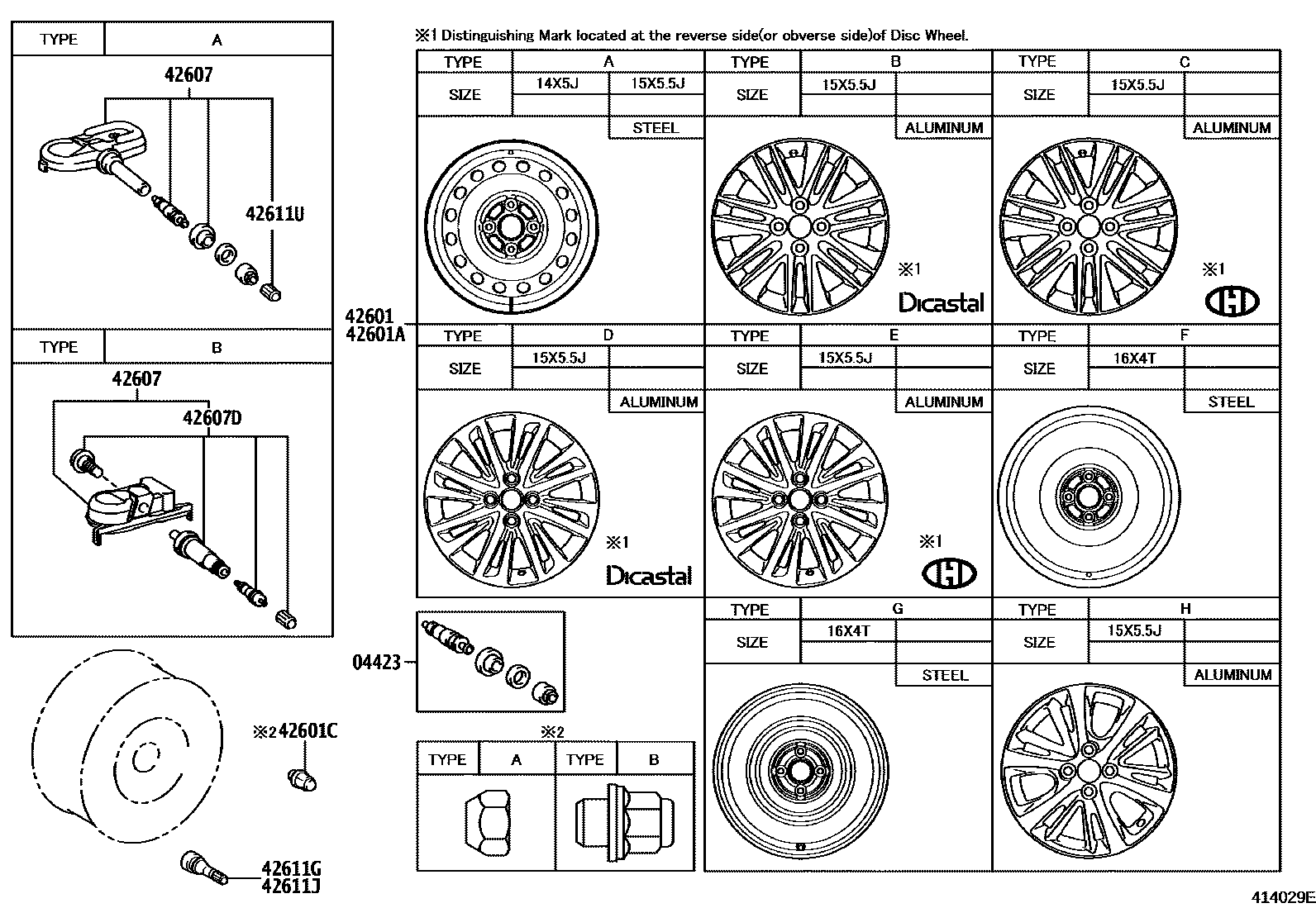

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
14X5J, #,TYPE A:REFER ILLUST.
14X5J, #,TYPE A:REFER ILLUST.
15X5.5J, #,TYPE B:REFER ILLUST.
15X5.5J, #,TYPE C:REFER ILLUST.
14X5J, #,TYPE A:REFER ILLUST.
15X5.5J, #,TYPE A:REFER ILLUST.
15X5.5J, #,MOON ROOF PACKAGE,TYPE A:REFER ILLUST.
15X5.5J, #,TYPE A:REFER ILLUST.
15X5.5J, #,TYPE D:REFER ILLUST.
15X5.5J, #,TYPE D:REFER ILLUST.
15X5.5J, #,TYPE E:REFER ILLUST.
15X5.5J, #,TYPE E:REFER ILLUST.
15X5.5J, #,TYPE H:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
14X5J, #,TYPE A:REFER ILLUST.
15X5.5J, #,TYPE A:REFER ILLUST.
16X4T,TYPE F:REFER ILLUST.
16X4T,TYPE F:REFER ILLUST.
16X4T,TYPE G:REFER ILLUST.
16X4T,TYPE G:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
(J),T/P A:REF.ILLUST
MOON ROOF PACKAGE,(J),T/P A:REF.ILLUST
(J),T/P B:REF.ILLUST
(L),T/P B:REF.ILLUST
TYPE B:REFER ILLUST.
(L),T/P A:REF.ILLUST
MOON ROOF PACKAGE,(L),T/P A:REF.ILLUST
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42607DVALVE, TIRE PRESSURE MONITOR
TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
(J)
(L)
42611JVALVE (FOR TUBELESS TIRE SPARE)
(J)
(L)
42611UCAP, TIRE VALVE
9 parts on this diagram · 3 diagrams in section
