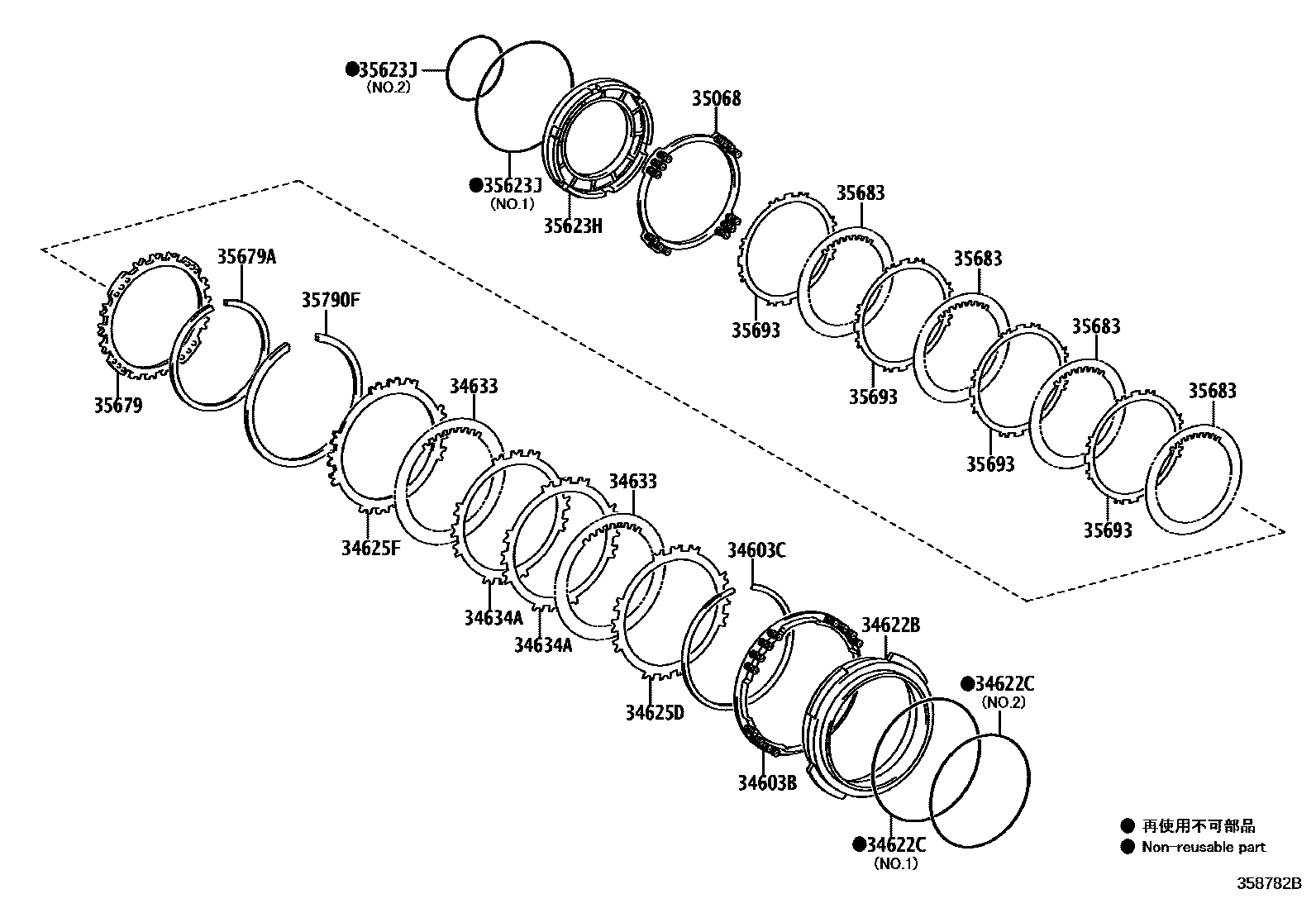

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

34603BSPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-0D010iNSP15#..4FC201405

main34603-52030iNSP15#..4FC201311-201405

34603CRING, HOLE SNAP(FOR OVERDRIVE BRAKE RETURN SPRING)

main90520-C0010iNSP15#..4FC201311

34622BPISTON, 2ND COAST & OVERDRIVE BRAKE

main34622-0D010iNSP15#..4FC201311

34622CRING, O(FOR 2ND COAST & OVERDRIVE)

main90301-C0051iNSP15#..4FC201311

NO.1:REFER ILLUST.

main90301-C0054iNSP15#..4FC201311

NO.2:REFER ILLUST.

34625DFLANGE, 2ND COAST & OVERDRIVE BRAKE

main34625-52010iNSP15#..4FC201311

T=1.8, MARK 1

main34625-52020iNSP15#..4FC201311

T=2.0, MARK 2

main34625-52030iNSP15#..4FC201311

T=2.2, MARK 3

main34625-52040iNSP15#..4FC201311

T=2.4, MARK 4

main34625-52050iNSP15#..4FC201311

T=2.6, MARK 5

34625FFLANGE, 2ND COAST & OVERDRIVE BRAKE, NO.2

main34625-52100iNSP15#..4FC201311

34633DISC, 2ND COAST & OVERDRIVE BRAKE

main34633-0D010×2iNSP15#..4FC201311

34634APLATE, 2ND COAST & OVERDRIVE BRAKE

main34634-0D010×2iNSP15#..4FC201311

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-0D010iNSP15#..4FC201405

main35068-52070iNSP15#..4FC201311-201404

35623HPISTON, 1ST & REVERSE BRAKE

main35623-0D010iNSP15#..4FC201311

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-C0042iNSP15#..4FC201311

NO.1:REFER ILLUST.

main90301-C0046iNSP15#..4FC201311

NO.2:REFER ILLUST.

35679FLANGE, BRAKE(FOR 1ST & REVERSE)

main35679-52010iNSP15#..4FC201311

T=3.4

35679ARING, HOLE SNAP(FOR BRAKE FLANGE)

main90520-C0005iNSP15#..4FC201311

35683DISC, BRAKE(FOR 1ST & REVERSE)

main35683-0D010×4iNSP15#..4FC201311

35693PLATE, BRAKE (FOR 1ST & REVERSE)

main35693-0D010×4iNSP15#..4FC201311

35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)

main90520-C0005iNSP15#..4FC201311

16 parts on this diagram · 1 diagram in section
