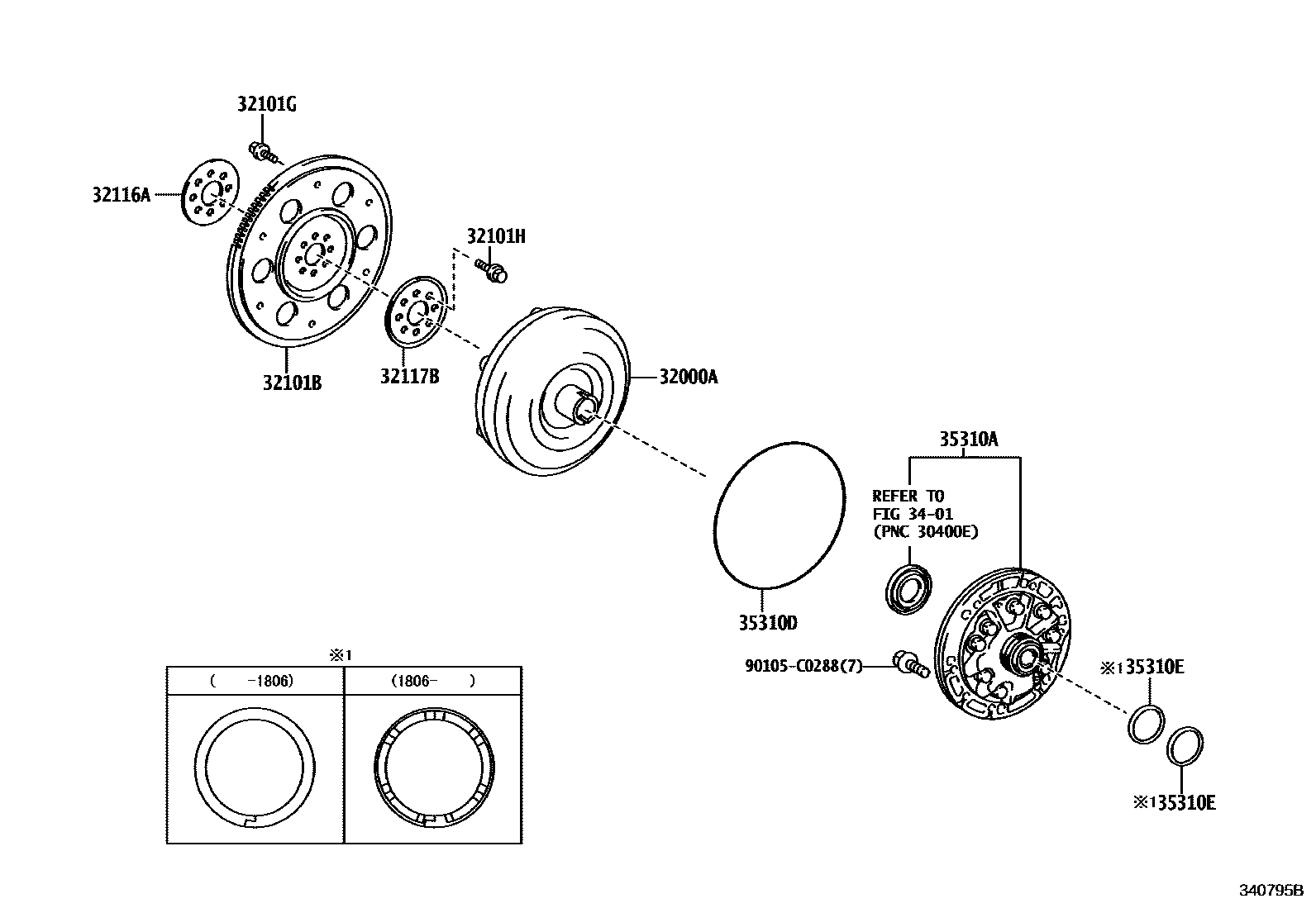

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-0D020iNSP151..CVT201609-201911

main32000-0D021iNSP151..CVT201912-202008

main32000-0D030iNSP150..CVT201609-201905

main32000-0D031iNSP150..CVT201906-202004

main32000-0D040iNSP151..CVT202008

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0D040iNSP151..CVT202008

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNSP150..CVT201609-202004

*8-1.25PX12-8.4,BLACK

main90119-08498×5iNSP150..CVT201609-202004

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iNSP151..CVT201609-202008

32116ASPACER, DRIVE PLATE, FRONT

main32116-02020iNSP150..CVT201609-202004

32117BSPACER, DRIVE PLATE, REAR

main32117-02020iNSP150..CVT201609-202004

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-02020iNSP150..CVT201609-202004

35310DRING, O (FOR FRONT OIL PUMP)

main90301-C0067iNSP15#..CVT201609-202008

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-02020×2iNSP15#..CVT201609-201806

main35617-02030×2iNSP15#..CVT201806-202008

90105C0288

main90105-C0288

11 parts on this diagram · 1 diagram in section
