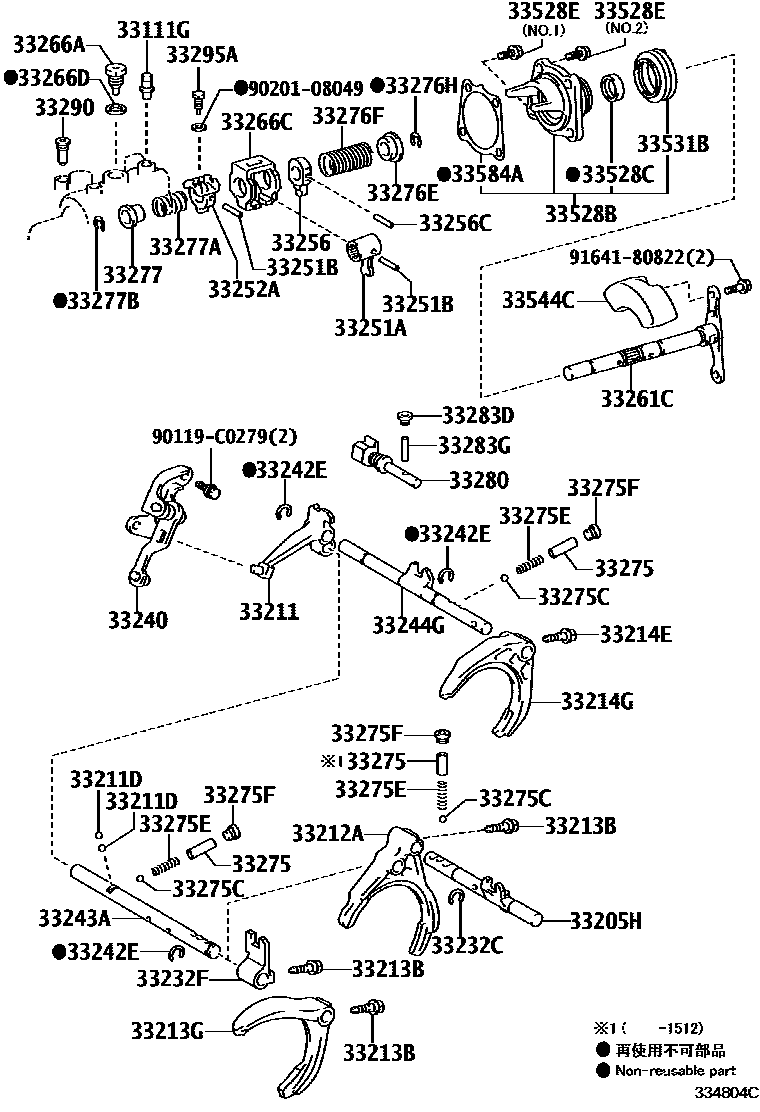

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33205HSHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1
33211FORK, REVERSE SHIFT
33211DBALL(FOR REVERSE SHIFT FORK)
OD=6.35
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214EBOLT(FOR GEAR SHIFT FORK LOCK)
33214GFORK, GEAR SHIFT, NO.3
33232CRING, SNAP (FOR 1ST & 2ND SHIFT HEAD)
33232FHEAD, GEAR SHIFT, NO.1
33240BRACKET ASSY, REVERSE SHIFT ARM
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244GSHAFT, GEAR SHIFT FORK, NO.3
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=25.5
33252ALEVER, SHIFT, INNER NO.2
33256LEVER, SELECT INNER
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
33266ABOLT (FOR SHIFT INTERLOCK PLATE)
33266CPLATE, SHIFT INTERLOCK
33266DGASKET (FOR SHIFT INTERLOCK PLATE)
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=10.7
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
33276ESEAT, SELECT SPRING, NO.1
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
33280PIN ASSY, REVERSE RESTRICT
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33290BALL ASSY, LOCK, NO.1
33295ASHAFT, REVERSE RESTRICT
33528BCOVER, CONTROL SHAFT
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528EBOLT (FOR CONTROL SHAFT COVER)
*10-1.25PX25-19.8,NO.1:REFER ILLUST.
*10-1.25PX25-19.8,NO.2:REFER ILLUST.
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33544CDAMPER, SHIFT LEVER
33584AGASKET, CONTROL SHIFT LEVER RETAINER
90119C0279
main90119-C0279
9020108049
main90201-08049
9164180822
main91641-80822
48 parts on this diagram · 2 diagrams in section
