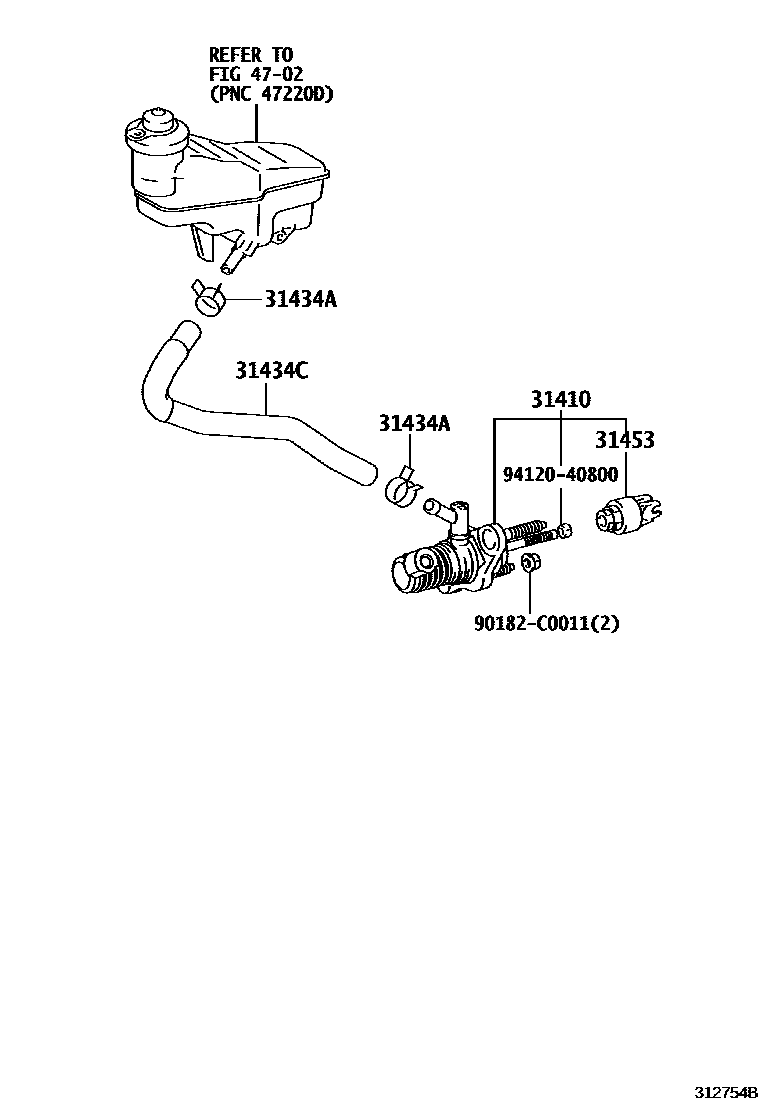

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0D210iNSP150..5F201609-202004

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-C0021×2iNSP151..5F202008

main96136-41801×2iNSP151..5F201609-202008

(J)

31434CTUBE, CLUTCH RESERVOIR

main31434-52300iNSP15#..5F201311-201609

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-52010iNSP15#..5F201311-201609

4702

90182C0011

main90182-C0011

9412040800

main94120-40800

7 parts on this diagram · 1 diagram in section
