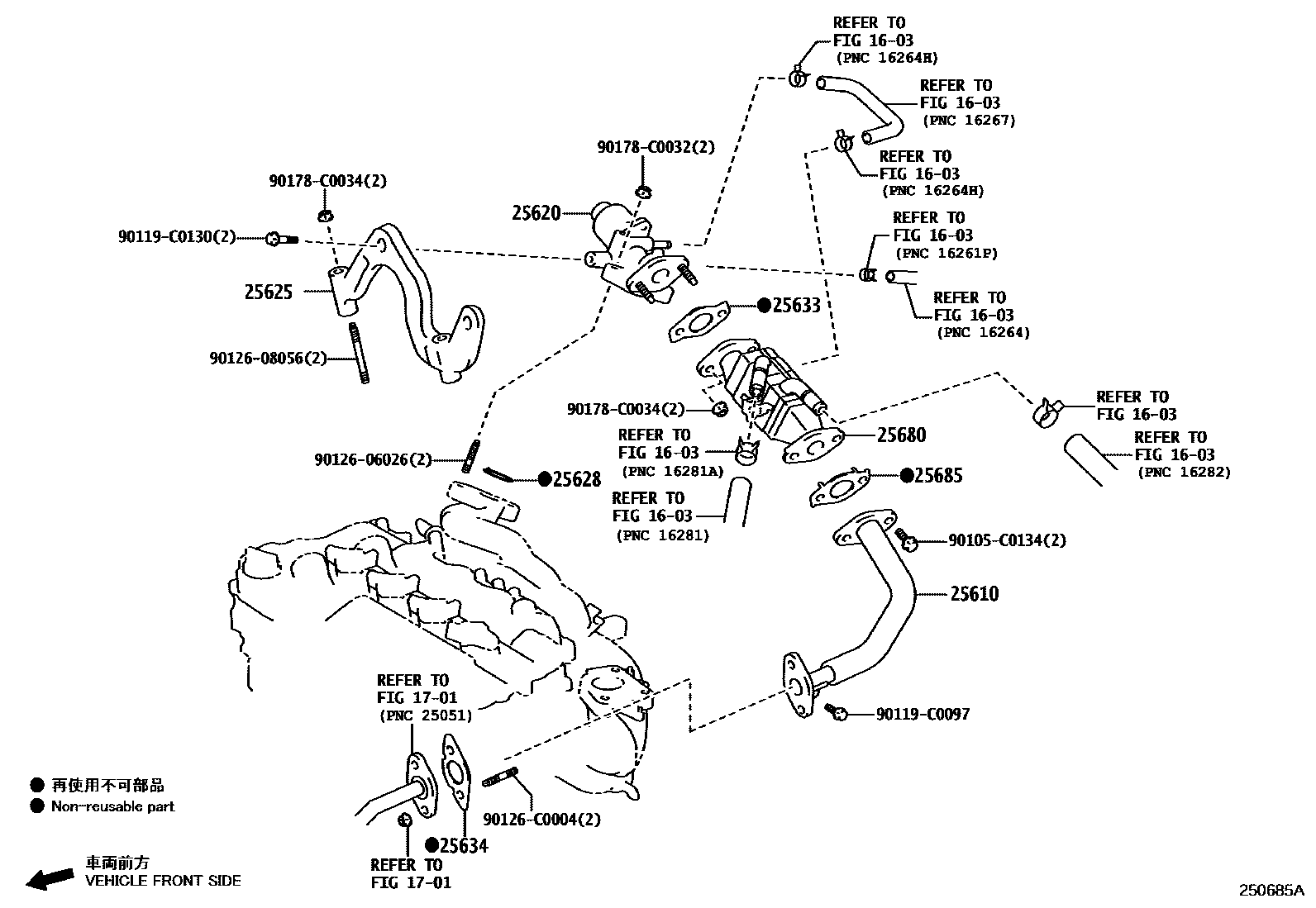

EXHAUST GAS RECIRCULATION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25610PIPE ASSY, EGR

main25610-0Y020i5NRF..NSP151201811-202008

25620VALVE ASSY, EGR

main25620-47040i5NRF..NSP151201811-202008

25625BRACKET, EGR VALVE

main25625-0Y010i5NRF..NSP151201811-202008

25628GASKET, EGR INLET

main25628-25010i5NRF..NSP151202008

main25628-36010i5NRF..NSP151201811-201909

25633GASKET, EGR VALVE

main25633-0Y010i5NRF..NSP151201811-202008

25634GASKET, EGR PIPE

main25685-0Y010i5NRF..NSP151201811-202008

25680COOLER ASSY, EGR

main25680-47020i5NRF..NSP151201811-202008

25685GASKET, EGR COOLER, NO.1

main25685-0Y030i5NRF..NSP151201811-202008

90105C0134

main90105-C0134

90119C0097

main90119-C0097

90119C0130

main90119-C0130

9012606026

main90126-06026

9012608056

main90126-08056

90126C0004

main90126-C0004

90178C0032

main90178-C0032

90178C0034

main90178-C0034

18 parts on this diagram · 1 diagram in section
