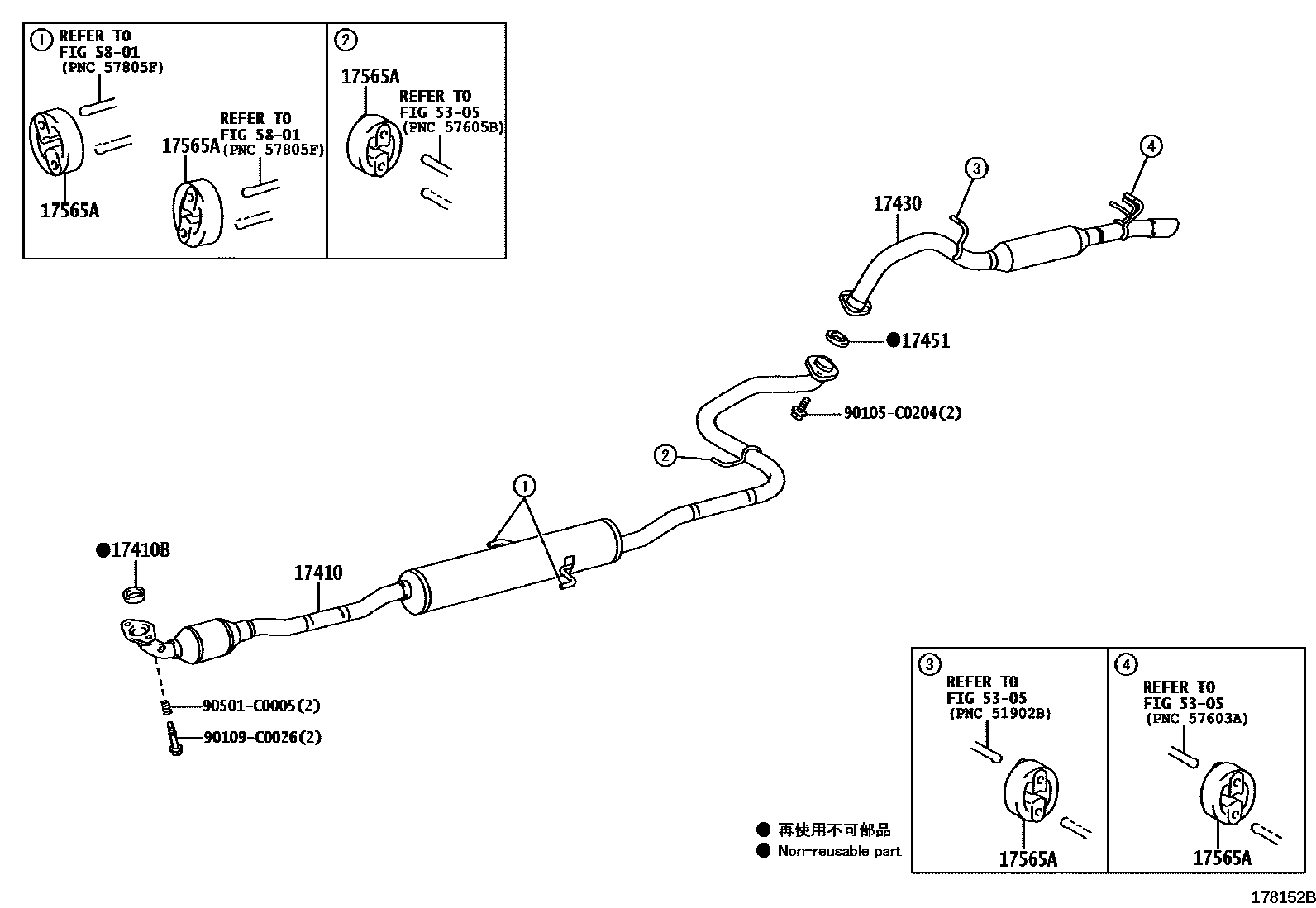

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0Y220supersedes 17410-0Y210i4NRFE,5NRF..NSP15#201609-201612

main17410-0Y450i4NRFE,5NRF..NSP15#201612-201801

main17410-0Y451i5NRF..NSP151201802-201811

main17410-0Y850i5NRF..NSP151201811-202008

17410BGASKET, EXHAUST PIPE

main17451-0J050i4NRFE,5NRF..NSP15#201311-201609

17430PIPE ASSY, EXHAUST, TAIL

main17430-0Y050i4NRFE,5NRF..NSP15#201311-201609

main17430-0Y180i5NRF..NSP151..5D201703-202008

main17430-0Y380i4NRFE,5NRF..NSP15#201609-201612

main17430-0Y381i5NRF..NSP151..4D202008

17451GASKET, EXHAUST PIPE

main17451-0T031i5NRF..NSP151201612-202008

main90917-06039i4NRFE,5NRF..NSP15#201311-201609

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0T050×5i5NRF..NSP151..4D; 5NRF..NSP151..5D202008

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

90105C0204

main90105-C0204

90109C0026

main90109-C0026

90501C0005

main90501-C0005

10 parts on this diagram · 2 diagrams in section
