Toyota 140320 — CRANKSHAFT & PISTON

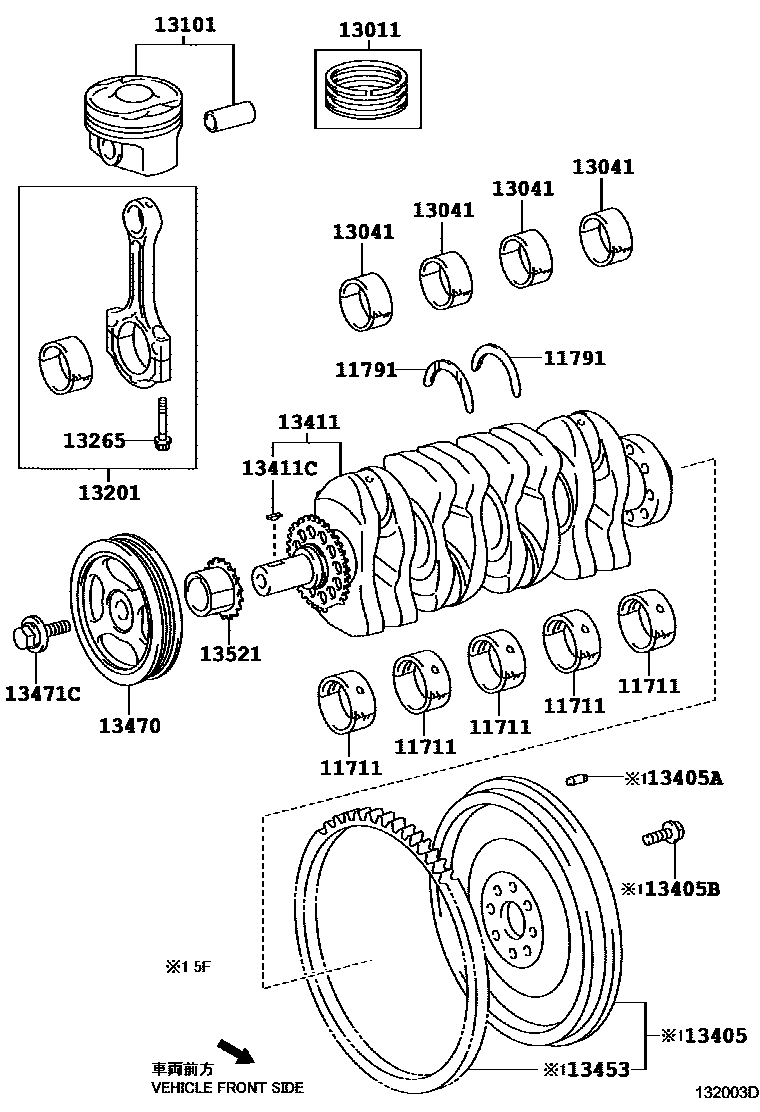

Parts diagram

11711BEARING, CRANKSHAFT

11791WASHER, CRANKSHAFT THRUST, UPPER

13011RING SET, PISTON

13041BEARING, CONNECTING ROD

13101PISTON SUB-ASSY, W/PIN

13201ROD SUB-ASSY, CONNECTING

13265BOLT, CONNECTING ROD

13405FLYWHEEL SUB-ASSY

13405APIN, STRAIGHT(FOR FLYWHEEL)

13405BBOLT, FLYWHEEL SETTING

13411CRANKSHAFT

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

13453GEAR, FLYWHEEL RING

13470PULLEY ASSY, CRANKSHAFT

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

16 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota 140320

This section contains 16 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota 140320. Key components include: BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD, PISTON SUB-ASSY, W/PIN.
