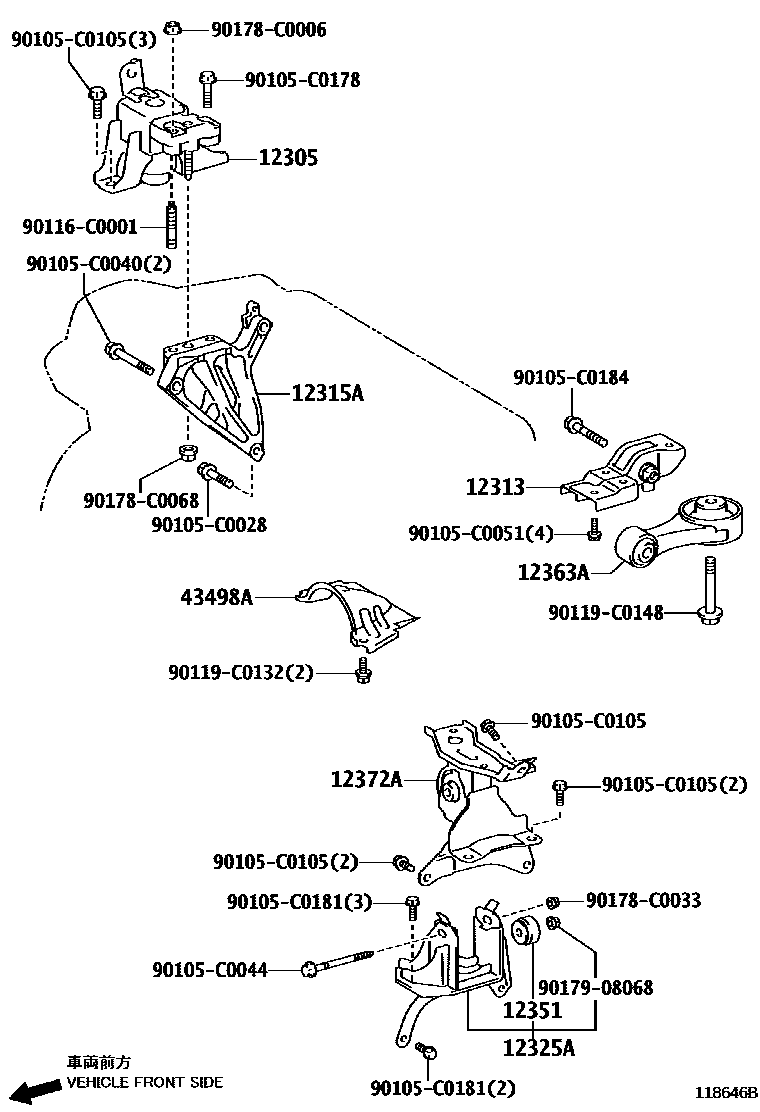

MOUNTING

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0Y100i4NRFE,5NRF..NSP15#201311-201609

main12305-0Y240i5NRF..NSP151201811-202008

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-0Y050i4NRFE,5NRF..NSP15#..5F201311-201609

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0Y030i4NRFE,5NRF..NSP15#201311-201408

main12315-0Y040i4NRFE,5NRF..NSP15#201409-201609

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-0Y090i4NRFE,5NRF..NSP15#..5F201311-201609

main12325-0Y110i4NRFE,5NRF..NSP15#..4FC201311-201609

main12325-0Y250i4NRFE,5NRF..NSP15#..CVT201609-201811

main12325-0Y251i4NRFE..NSP150..CVT201811-202004

12351DAMPER, ENGINE MOUNTING

main12351-0Y050i4NRFE,5NRF..NSP15#..5F201311-201609

12363AROD, ENGINE MOVING CONTROL

main12363-0Y060i4NRFE,5NRF..NSP15#..5F201311-201609

main12363-0Y070i4NRFE,5NRF..NSP15#..4FC201311-201609

main12363-0Y180i5NRF..NSP151..CVT202008

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0Y100i4NRFE..NSP150..5F201609-202004

main12372-0Y110i4NRFE,5NRF..NSP15#..4FC201311-201609

main12372-0Y220i5NRF..NSP151..CVT201609-202008

43498AINSULATOR, DRIVE SHAFT HEAT, NO.1

main43498-0D100iNSP15#201311-201609

main43498-0D250iNSP151201811-202008

90105C0028

main90105-C0028

90105C0040

main90105-C0040

90105C0044

main90105-C0044

90105C0051

main90105-C0051

90105C0105

main90105-C0105

90105C0178

main90105-C0178

90105C0181

main90105-C0181

90105C0184

main90105-C0184

90116C0001

main90116-C0001

90119C0132

main90119-C0132

90119C0148

main90119-C0148

90178C0006

main90178-C0006

90178C0033

main90178-C0033

90178C0068

main90178-C0068

9017908068

main90179-08068

23 parts on this diagram · 6 diagrams in section
