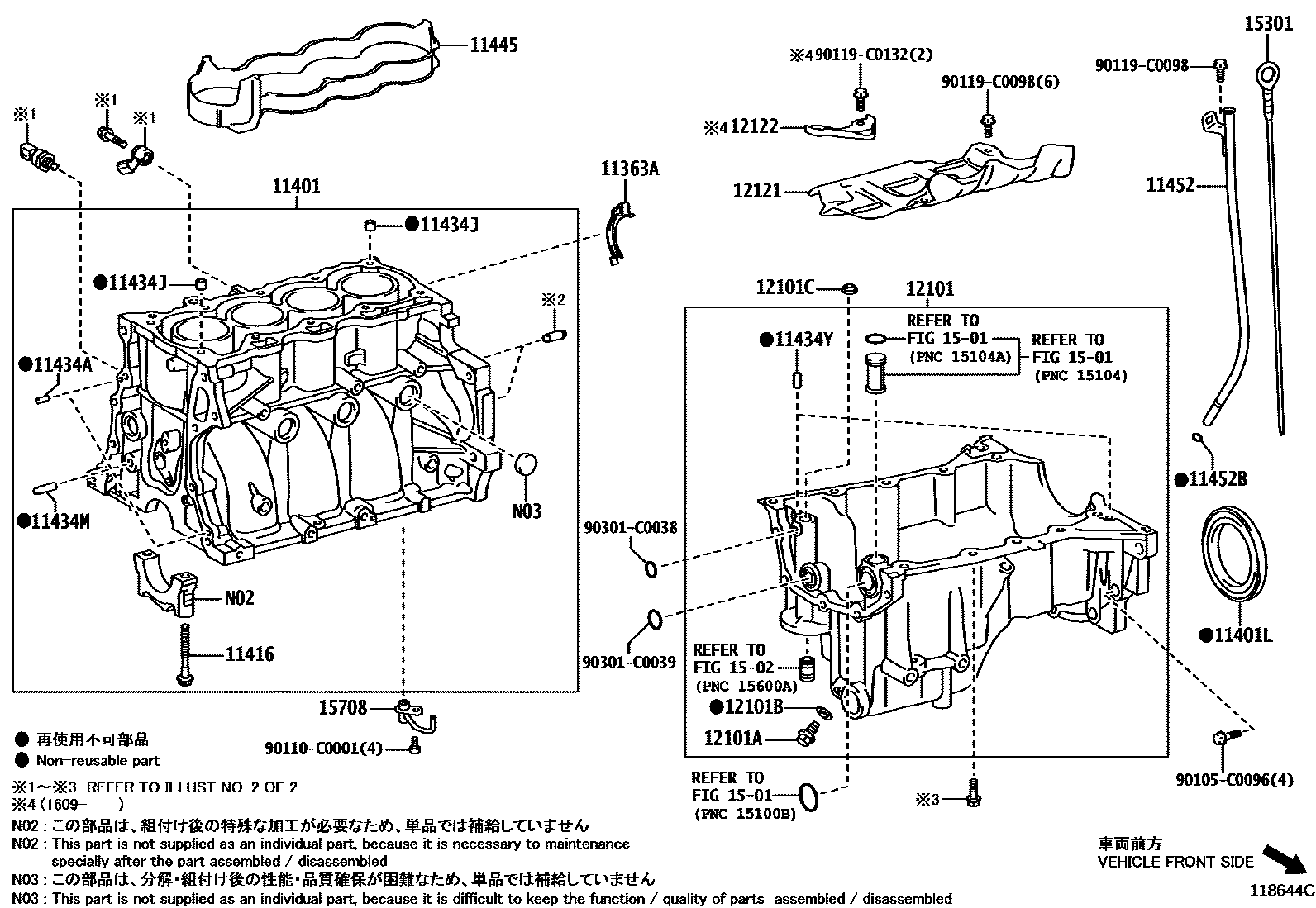

CYLINDER BLOCK

0001 1 0003 1 0004 1 0006 1

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-40010i5NRF..NSP151201311-202008

11401BLOCK SUB-ASSY, CYLINDER

main11410-09590i4NRFE..NSP150201311-201605

main11410-09591i4NRFE..NSP150201605-202004

main11410-09600i5NRF..NSP151201311-201605

main11410-09601i5NRF..NSP151201605-202008

11401LSEAL, ENGINE REAR OIL

main90311-C0019i5NRF..NSP151201311-202008

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02175i4NRFE,5NRF..NSP15#201311-202008

(J)

main90910-C2008i4NRFE,5NRF..NSP15#201605-202008

(L)

main90910-C2008i5NRF..NSP151202008

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-C0009i4NRFE,5NRF..NSP15#201311-202008

L=12,OD=4.0

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-C0006i4NRFE,5NRF..NSP15#201311-202008

11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)

main90250-C0006i4NRFE,5NRF..NSP15#201311-202008

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-C0011i4NRFE,5NRF..NSP15#201311-202008

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0Y010i5NRF..NSP151201311-202008

11452GUIDE, OIL LEVEL GAGE

main11452-0Y010i4NRFE,5NRF..NSP15#201311-202004

main11452-0Y060i5NRF..NSP151201811-202008

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-C0007i4NRFE,5NRF..NSP15#201311-202008

12101PAN SUB-ASSY, OIL

main12101-0Y020i4NRFE,5NRF..NSP15#201311-201609

main12101-0Y110i5NRF..NSP151201609-202004

main12101-0Y130i5NRF..NSP151201811-202008

12101APLUG(FOR OIL PAN DRAIN)

main90341-12032i4NRFE,5NRF..NSP15#201311-202008

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-C0005i4NRFE,5NRF..NSP15#201311-202008

12101CRING, O(FOR OIL PAN)

main90430-C0003i4NRFE,5NRF..NSP15#201311-202008

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0Y010i4NRFE,5NRF..NSP15#201311-202004

main12121-0Y070i5NRF..NSP151201811-202008

12122PLATE, OIL PAN BAFFLE, NO.2

main12122-0Y030i4NRFE..NSP150201609-202008

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1502OIL FILTER

→ Go to FIG 15-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0Y030i4NRFE,5NRF..NSP15#201311-202004

main15301-0Y090i5NRF..NSP151201811-202008

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-47031i4NRFE,5NRF..NSP15#201311-201609

main15708-47080i4NRFE,5NRF..NSP15#201609-201805

main15708-47081i4NRFE..NSP150201806-202008

90105C0096

main90105-C0096

90110C0001

main90110-C0001

90119C0098

main90119-C0098

90119C0132

main90119-C0132

90301C0038

main90301-C0038

90301C0039

main90301-C0039

27 parts on this diagram · 4 diagrams in section
