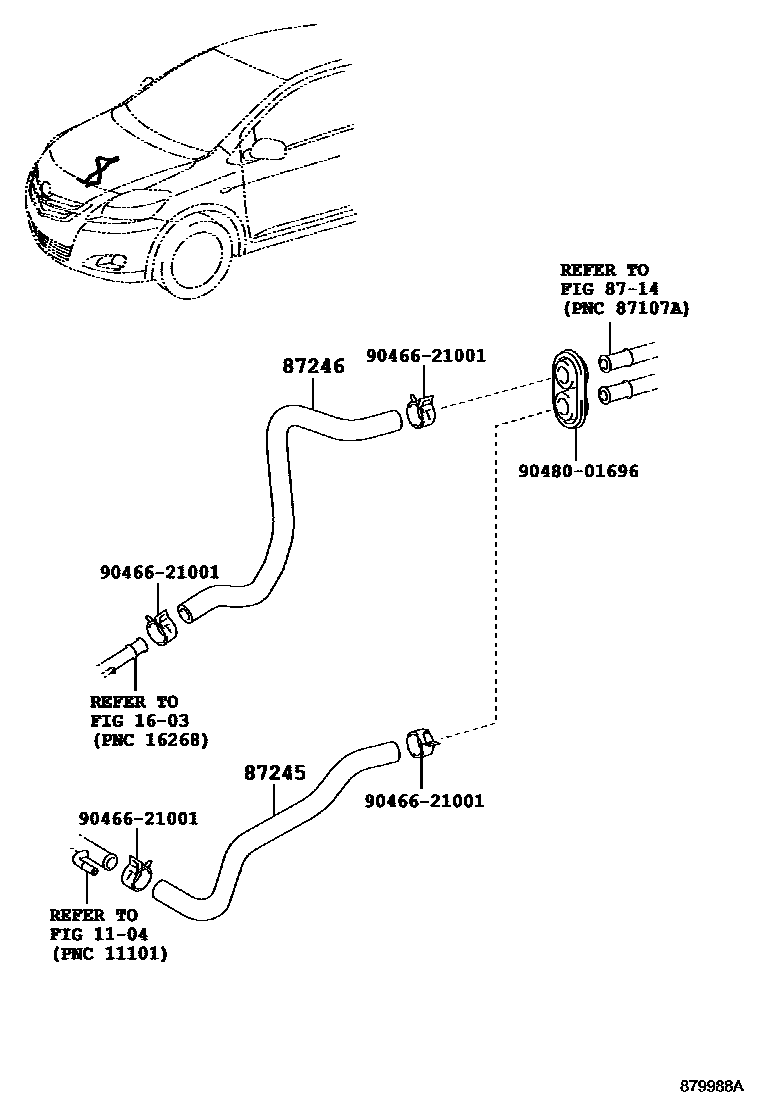

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-0D170iNCP92200802-201008

main87245-0D190iZSP92200802-201008

87246HOSE, HEATER WATER, OUTLET

main87245-0D180iNCP92200802-201008

main87245-0D200iZSP92..GLS201008-201303

9046621001

main90466-21001

9048001696

main90480-01696

7 parts on this diagram · 2 diagrams in section
