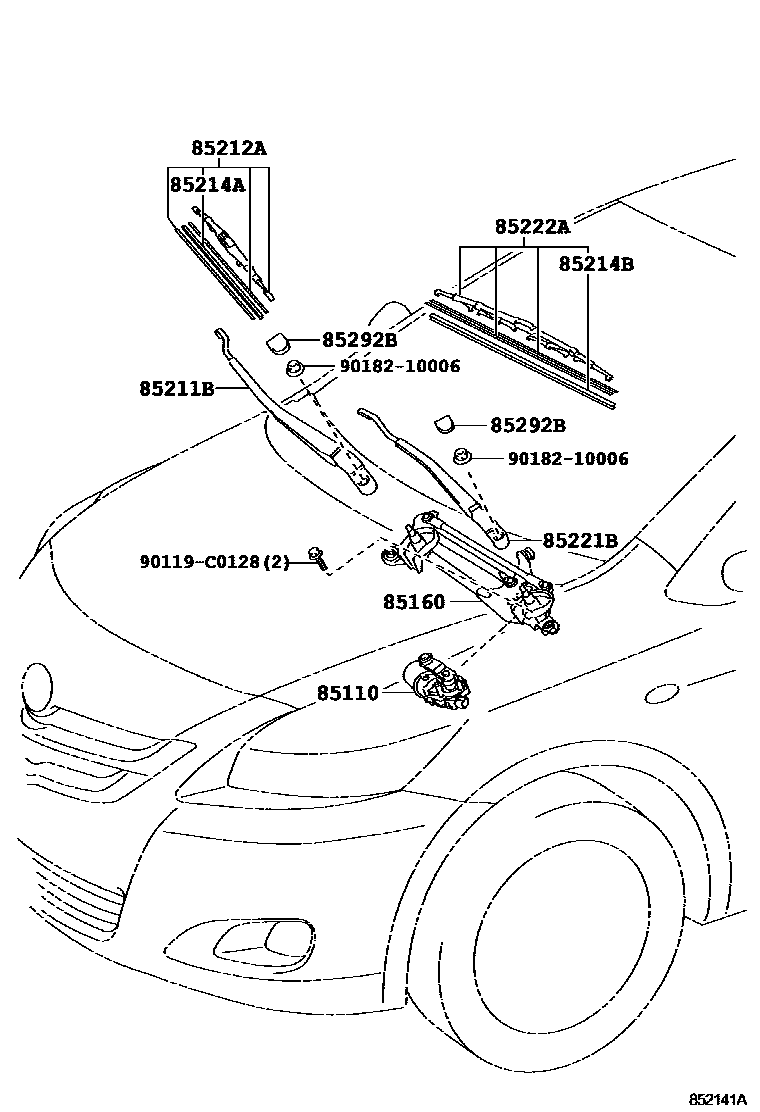

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D140iNCP92,ZSP92200802-201008

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D140iNCP92,ZSP92200802-201008

85211BARM, FRONT WIPER, RH

main85211-0D120iNCP92,ZSP92200802-201008

85212ABLADE, FR WIPER, RH

main85212-0D081iNCP92,ZSP92200802-201008

85214ARUBBER, WIPER, RH

main85214-0D121iNCP92,ZSP92200802-201008

85214BRUBBER, WIPER, LH

main85214-02180iNCP92,ZSP92200802-201008

85221BARM, FRONT WIPER, LH

main85221-0D120iNCP92,ZSP92200802-201008

85222ABLADE, FR WIPER, LH

main85222-0D080iNCP92,ZSP92200802-201008

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030×2iNCP92,ZSP92200802-201008

90119C0128

main90119-C0128

9018210006

main90182-10006

11 parts on this diagram · 1 diagram in section
