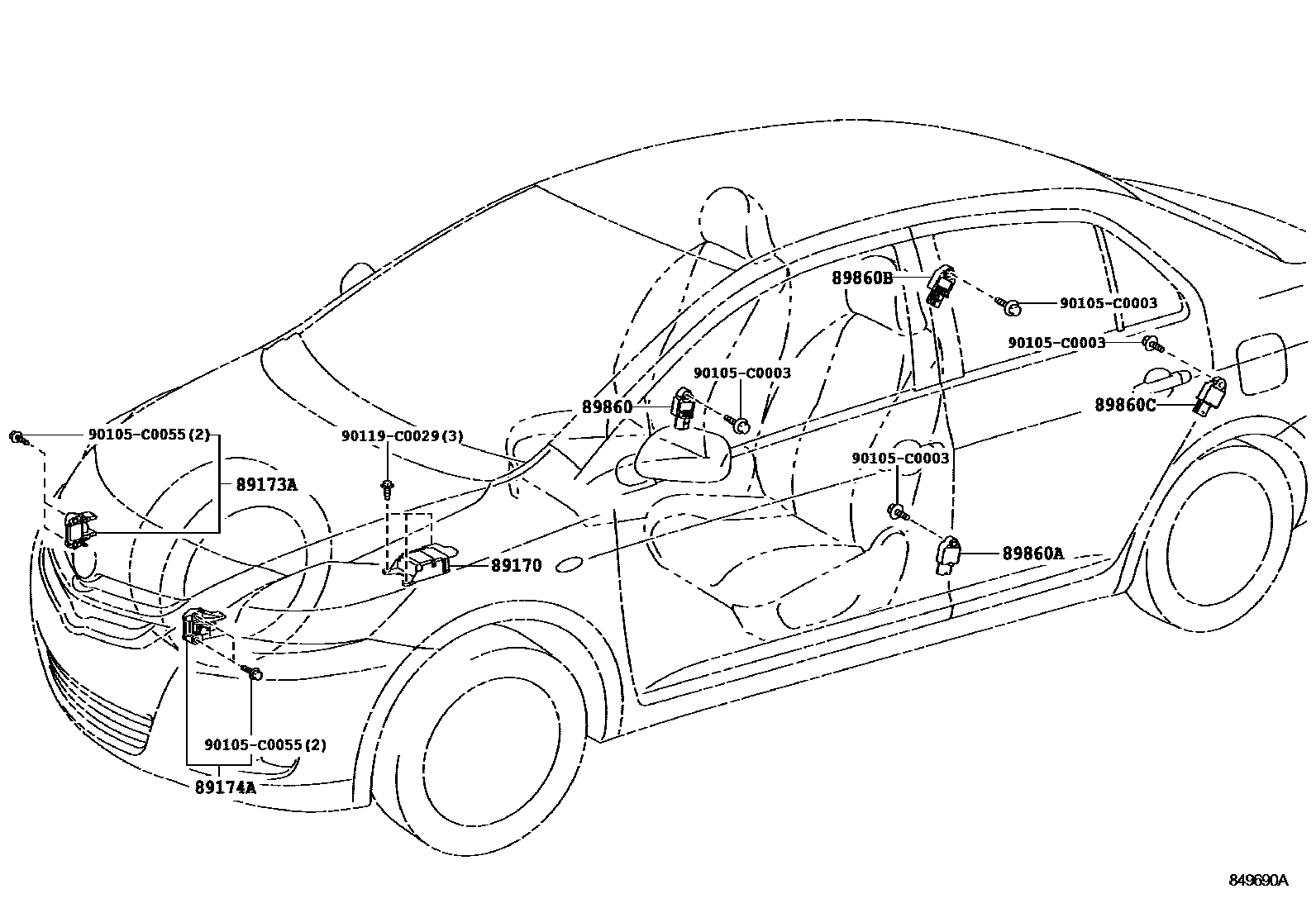

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-0D360iNCP92,ZSP92200802-201008

main89170-0D500iZSP92..GLI200810-201008

SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)

89173ASENSOR, AIRBAG, FRONT RH

main89173-09520iNCP92,ZSP92200802-201008

89174ASENSOR, AIRBAG, FRONT LH

main89173-09520iZSP92..GLS201008-201303

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0P010iZSP92..GLI200810-201008

SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0P010iZSP92..GLI200810-201008

SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-0P020iZSP92..GLI200810-201008

SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-0P020iZSP92..GLI200810-201008

SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)

90105C0003

main90105-C0003

90105C0055

main90105-C0055

90119C0029

main90119-C0029

10 parts on this diagram · 1 diagram in section
