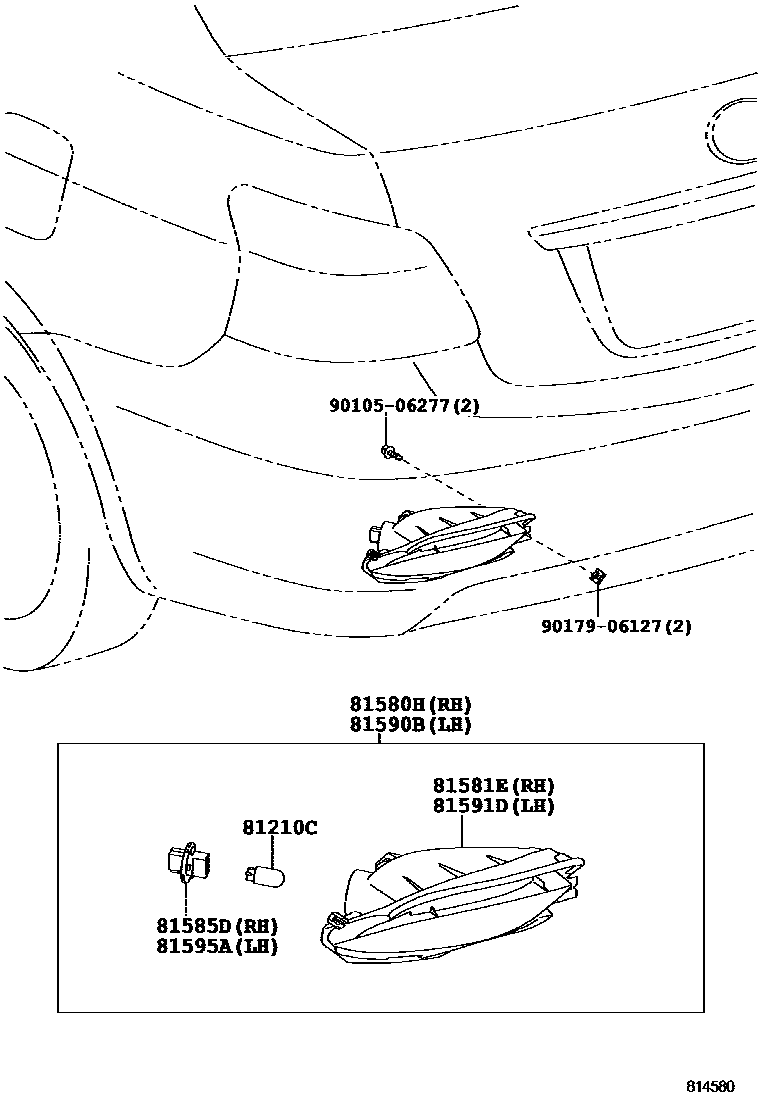

REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main90981-13043×2iNCP92,ZSP92200802-201008

12V 21W

81580HLAMP ASSY, REAR FOG, RH

main81580-0D030iNCP92,ZSP92200802-201008

81581ELENS AND BODY, REAR FOG LAMP, RH

main81581-0D030iNCP92,ZSP92200802-201008

81585DSOCKET & WIRE, REAR FOG LAMP, RH

main81585-0D030iNCP92,ZSP92200802-201008

81590BLAMP ASSY, REAR FOG, LH

main81590-0D030iNCP92,ZSP92200802-201008

81591DLENS AND BODY, REAR FOG LAMP, LH

main81591-0D030iNCP92,ZSP92200802-201008

81595ASOCKET & WIRE, REAR FOG LAMP, LH

main81585-0D030iNCP92,ZSP92200802-201008

9010506277

main90105-06277

9017906127

main90179-06127

9 parts on this diagram · 1 diagram in section
