FRONT SEAT & SEAT TRACK

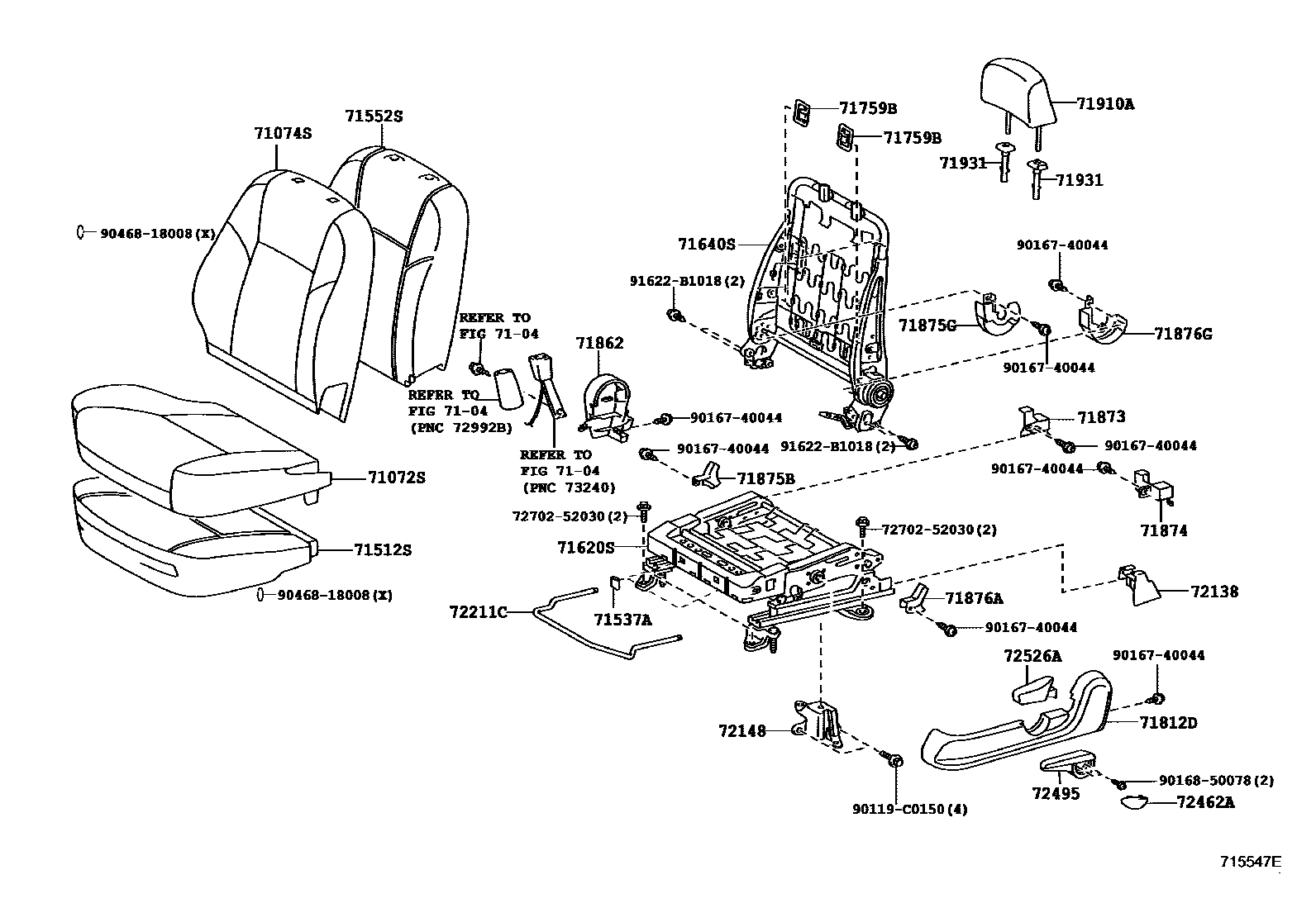

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0D510-E0i201007-201008
GREGE,TRIM4#; SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),GREGE,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#
main71072-0D520-B2i200802-201006
DK.GRAY,TRIM1#
main71072-0D520-E2i200802-201006
GREGE,TRIM4#
main71072-0D521-B2i201007-201008
DK.GRAY,TRIM1#
main71072-0D521-E2i201007-201008
GREGE,TRIM4#
main71072-0D830-E1i201008-201307
GREGE,TRIM4#&056 ,1F7 ,209 ,3L8 ,3P1 ,580
main71072-0D511-E0×2i201007-201008
SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),GREGE,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#
main71072-0D620-E0i200810-201006
SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#
main71072-0D621-E0i201007-201008
SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#
main71072-0D850-E1i201008-201304
SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0D380-E0i200802-201006
GREGE,TRIM4#; SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),GREGE,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#
main71074-0D390-B2i201008-201011
DK.GRAY,TRIM1#
main71074-0D390-E2i201008-201011
GREGE,TRIM4#
main71074-0D391-B2i201007-201008
DK.GRAY,TRIM1#
main71074-0D391-E2i201012-201307
GREGE,TRIM4#
main71074-0D630-E1i201008-201307
GREGE,TRIM4#&056 ,1F7 ,209 ,3L8 ,3P1 ,580
main71074-0D381-E0×2i201007-201008
SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),GREGE,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#
main71074-0D470-E0i200810-201006
SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#
main71074-0D471-E0i201007-201008
SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#
main71074-0D650-E1i201008-201304
SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-0D080i200802-201007
SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER); SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
71537APROTECTOR, FRONT SEAT CUSHION
main71537-26010×4i200802-201008
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0D100i200802-201007
SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER); SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
main71552-0D170i200810-201008
SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-0D060×2i201007-201008
SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER); SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-0D100i200802-201008
71759BHOOK, FRONT SEATBACK
main71759-02010×2i200802-201007
SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER); SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0D090-B0i200802-201007
DK.GRAY,TRIM4#; SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),DK.GRAY,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),DK.GRAY,TRIM4#
main71812-0D090-E0i201008-201304
GREGE,TRIM41
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0D070-B0i200802-201007
DK.GRAY,TRIM4#; SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),DK.GRAY,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),DK.GRAY,TRIM4#
main71862-0D070-E0i201008-201304
GREGE,TRIM41
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-0D060-B0i200802-201007
DK.GRAY,TRIM4#; SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),DK.GRAY,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),DK.GRAY,TRIM4#
main71873-0D060-E0i201008-201304
GREGE,TRIM41
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-0D060-B0i200802-201007
DK.GRAY,TRIM4#; SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),DK.GRAY,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),DK.GRAY,TRIM4#
main71874-0D060-E0i201008-201304
GREGE,TRIM41
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-06220-B0i200802-201007
DK.GRAY,TRIM4#; SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),DK.GRAY,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),DK.GRAY,TRIM4#
main71875-06220-E0i201008-201304
GREGE,TRIM41
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-06340i200802-201007
SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER); SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-06340-B0i200802-201007
DK.GRAY,TRIM4#; SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),DK.GRAY,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),DK.GRAY,TRIM4#
main71876-06340-E0i201008-201304
GREGE,TRIM41
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-06340-B0i200802-201007
DK.GRAY,TRIM4#; SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),DK.GRAY,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),DK.GRAY,TRIM4#
main71876-06340-E0i201008-201304
GREGE,TRIM41
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-06370i200802-201007
SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER); SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
71910AHEADREST ASSY, FRONT SEAT
main71910-0D520-E1×2i200802-201006
GREGE,TRIM4#; SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),GREGE,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#
main71910-0D530-B2×2i201008-201011
DK.GRAY,TRIM1#
main71910-0D530-E2×2i200802-201006
GREGE,TRIM4#
main71910-0D531-B2×2i201007-201008
DK.GRAY,TRIM1#
main71910-0D531-E2×2i201007-201008
GREGE,TRIM4#
main71910-0D570-E1×2i201008-201307
GREGE,TRIM4#&056 ,1F7 ,209 ,3L8 ,3P1 ,580
main71910-0D521-E1×4i201007-201008
SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),GREGE,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-0D110-B1×2i200802-201008
W(LOCK),DK.GRAY,TRIM1#; W(LOCK),DK.GRAY,TRIM41
main71930-0D110-E0×2i200802-201008
W(LOCK),GREGE,TRIM41
main71931-0D110-B1×2i200802-201008
W/O(LOCK),DK.GRAY,TRIM1#; W/O(LOCK),DK.GRAY,TRIM41
main71931-0D110-E0×4i201007-201008
W/O(LOCK),GREGE,TRIM4#; W/O(LOCK),SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),GREGE,TRIM4#
72138COVER, SEAT TRACK, OUTER LH
main72138-0D040-B0i200802-201008
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#
main72138-0D040-E0i201008-201304
GREGE,TRIM41
72148BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
main72148-0D030i200802-201008
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-0D050×2i200802-201007
SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER); SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
72462ACOVER, VERTICAL ADJUSTER LH
main72462-0D020-B0i200802-201007
DK.GRAY,TRIM4#; SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),DK.GRAY,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),DK.GRAY,TRIM4#
main72462-0D020-E0i201304-201307
GREGE,TRIM4#
72495HANDLE, VERTICAL ADJUSTING, LH
main72494-0D020-B0i200802-201007
DK.GRAY,TRIM4#; SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),DK.GRAY,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),DK.GRAY,TRIM4#
main72494-0D020-E0i201008-201304
GREGE,TRIM41
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-0D090-B0i200802-201007
DK.GRAY,TRIM4#; SEAT BELT WARNING-WITH-D&P(BLINKING+BUZZER),DK.GRAY,TRIM4#; SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD),DK.GRAY,TRIM4#
main72526-0D090-E0i201008-201304
GREGE,TRIM41
7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-52030
90119C0150
main90119-C0150
9016740044
main90167-40044
9016850078
main90168-50078
9046818008
main90468-18008
91622B1018
main91622-B1018

32 parts on this diagram · 4 diagrams in section
