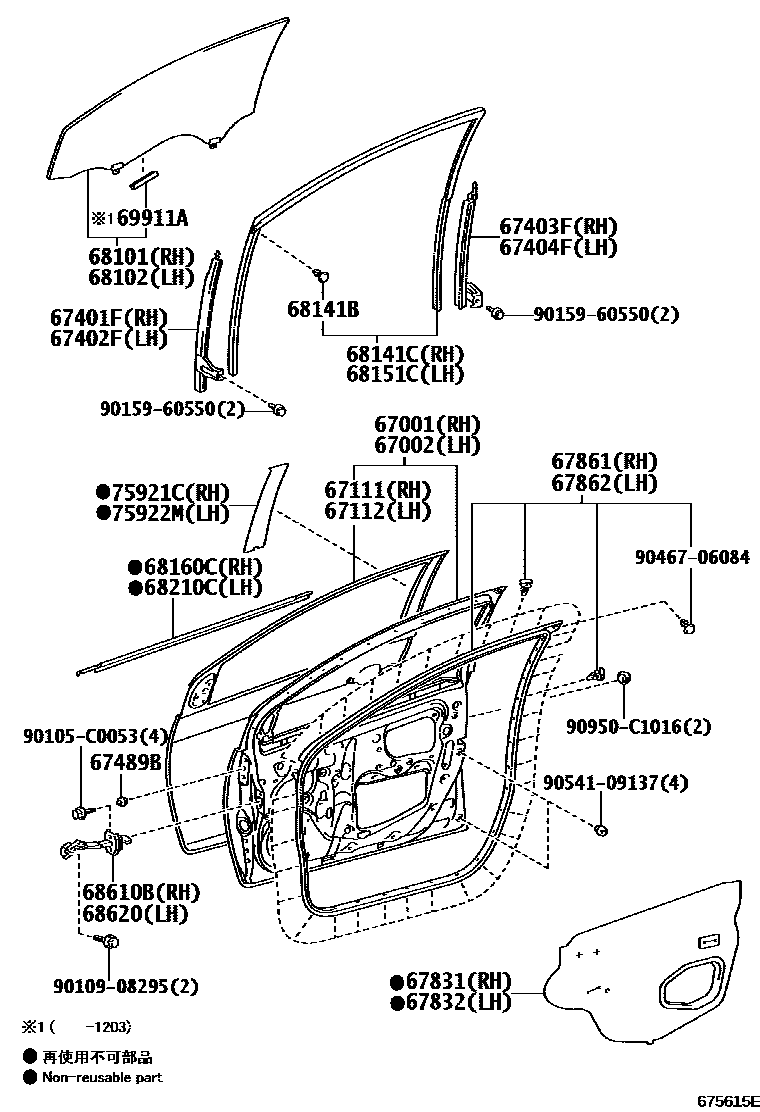

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0D210iNCP92,ZSP92200802-201008

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0D210iNCP92,ZSP92200802-201008

67111PANEL, FRONT DOOR, OUTER RH

main67111-0D090iNCP92,ZSP92200802-201008

67112PANEL, FRONT DOOR, OUTER LH

main67112-0D090iNCP92,ZSP92200802-201008

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0D030iNCP92,ZSP92200802-201008

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0D030iNCP92,ZSP92200802-201008

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0D060iNCP92,ZSP92200802-201008

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0D060iNCP92,ZSP92200802-201008

67489BPACKING, FRONT DOOR LOWER COVER

main67489-0D020×2iNCP92,ZSP92200802-201008

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0D140iNCP92,ZSP92200802-201008

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0D090iNCP92,ZSP92200802-201008

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0D110iNCP92,ZSP92200802-201008

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0D110iNCP92,ZSP92200802-201008

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-0D140iNCP92,ZSP92200802-201008

*TEM,T=3.1,GREEN

main68110-0D141iNCP92,ZSP92201207-201307

*TEM,T=3.1,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-0D140iNCP92,ZSP92200802-201008

*TEM,T=3.1,GREEN

main68120-0D141iNCP92,ZSP92201207-201307

*TEM,T=3.1,GREEN

68141BCLIP, DOOR GLASS RUN

main90467-06084×2iNCP92,ZSP92200802-201008

68141CRUN, FRONT DOOR GLASS, RH

main68141-0D130iNCP92,ZSP92200802-201008

68151CRUN, FRONT DOOR GLASS, LH

main68151-0D130iNCP92,ZSP92200802-201008

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-0D120iNCP92,ZSP92200802-201008

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-0D120iNCP92,ZSP92200802-201008

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0D020iNCP92,ZSP92200802-201008

main68610-0D021iZSP92..GLS201101-201303

68620CHECK ASSY, FRONT DOOR, LH

main68620-0D020iNCP92,ZSP92200802-201008

main68620-0D021iZSP92..GLS201101-201303

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69911-0D020×2iNCP92,ZSP92200802-201008

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0D030iZSP92200802-201008

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0D030iZSP92200802-201008

90105C0053

main90105-C0053

9010908295

main90109-08295

9015960550

main90159-60550

9046706084

main90467-06084

9054109137

main90541-09137

90950C1016

main90950-C1016

31 parts on this diagram · 2 diagrams in section
