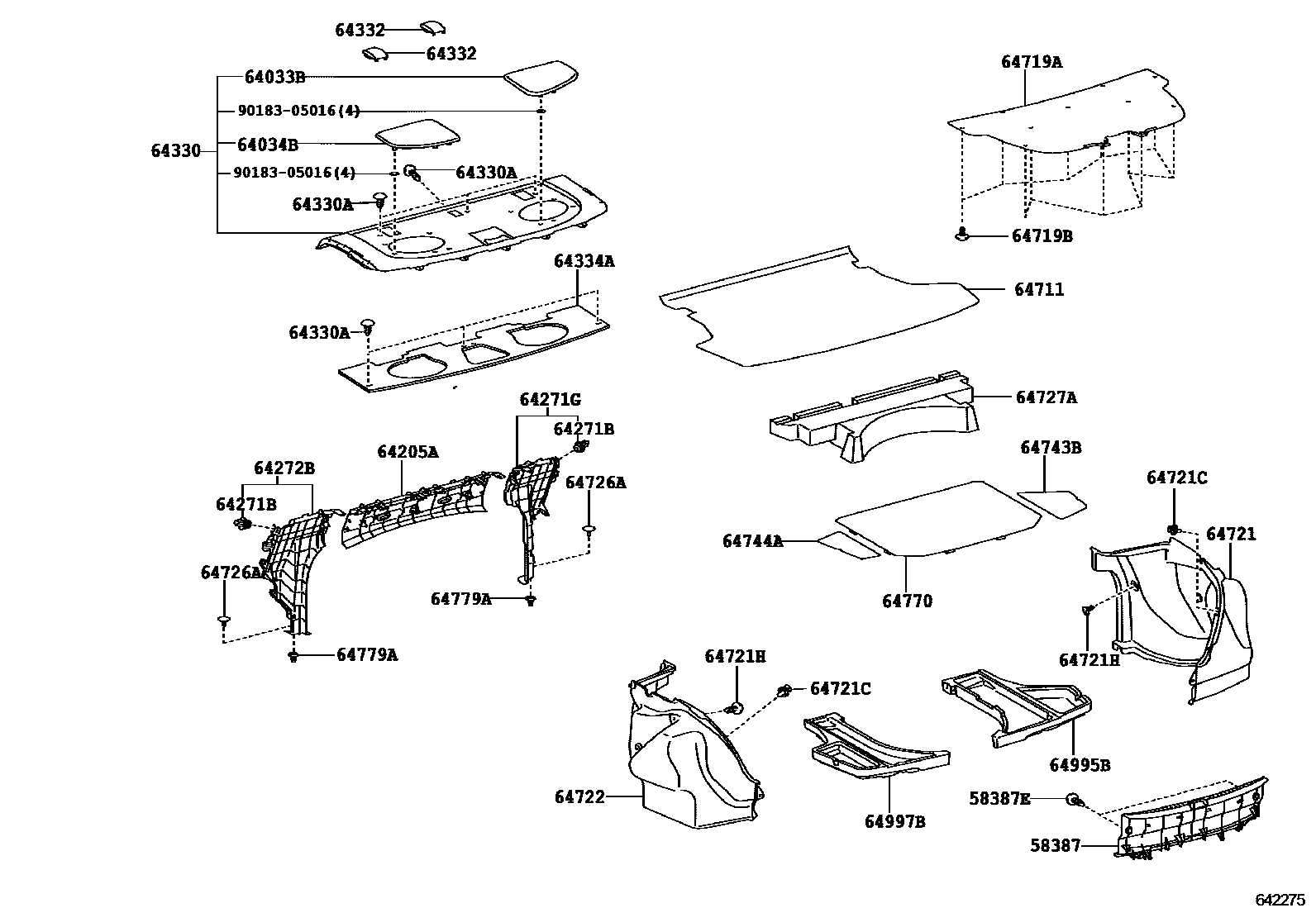

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-0D070iNCP92,ZSP92200802-201007

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-B4×2iNCP92,ZSP92201008-201307

DK.GRAY

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64383-02070-B0iZSP92..GLS200802-201008

DK.GRAY,TRIM1#

main64383-02070-E0iNCP92,ZSP92..GLI,GLXI200802-201008

GREGE,TRIM4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64384-02040-B0iZSP92..GLS200802-201008

DK.GRAY,TRIM1#

main64384-02040-E0iNCP92,ZSP92..GLI,GLXI200802-201008

GREGE,TRIM4#

64205ACOVER SUB-ASSY, ROOM PARTITION

main64275-0D040-C0iNCP92,ZSP92..GLI,GLXI; ZSP92..GLS200802-201008

BLACK,TRIM1#; BLACK,TRIM4#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-10188×2iNCP92,ZSP92200802-201007

64271GBOARD, ROOM PARTITION, RH

main64271-0D030-C0iNCP92,ZSP92..GLI,GLXI; ZSP92..GLS200802-201008

BLACK,TRIM1#; BLACK,TRIM4#

64272BBOARD, ROOM PARTITION, LH

main64272-0D020-C0iNCP92,ZSP92..GLI,GLXI; ZSP92..GLS200802-201008

BLACK,TRIM1#; BLACK,TRIM4#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-0D160-E0iNCP92,ZSP92..GLI,GLXI201008-201307

GREGE,TRIM4#

main64330-0D170-C0iZSP92..GLS201008-201303

BLACK,TRIM1#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06020-B6×7iZSP92..GLS201008-201303

DK.GRAY,TRIM1#

main90467-06020-E7×7iNCP92,ZSP92..GLI,GLXI200802-201008

GREGE,TRIM4#

64332COVER, PACKAGE TRAY TRIM

main64332-0D020-B0×2iZSP92..GLS201008-201303

DK.GRAY,TRIM1#

main64332-0D020-E0×2iNCP92,ZSP92..GLI,GLXI200802-201008

GREGE,TRIM4#

64334APAD, PACKAGE TRAY TRIM

main64334-0D060iNCP92,ZSP92200802-201007

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-0D090-C0iNCP92,ZSP92..GLI,GLXI; ZSP92..GLS200802-201008

BLACK,TRIM1#; BLACK,TRIM4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-0D020-C0iNCP92,ZSP92..GLI,GLXI; ZSP92..GLS200802-201008

BLACK,TRIM1#; BLACK,TRIM4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-B4×11iNCP92,ZSP92200802-201008

DK.GRAY

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-0D060-C0iNCP92,ZSP92..GLI,GLXI; ZSP92..GLS200802-201008

BLACK,TRIM1#; BLACK,TRIM4#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-B4×8iNCP92,ZSP92200802-201008

DK.GRAY

64721HCLIP(LUGGAGE COMPARTMENT)

main90467-10183×2iNCP92,ZSP92200802-201007

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-0D060-C0iNCP92,ZSP92..GLI,GLXI; ZSP92..GLS200802-201008

BLACK,TRIM1#; BLACK,TRIM4#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-26010-B1×2iNCP92,ZSP92200802-201008

DK.GRAY

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-0D030iNCP92,ZSP92200802-201007

main64727-0D070iNCP92,ZSP92..GLI,GLXI201008

64743BDOOR, DECK SIDE BOX, RH

main64743-0D020iNCP92,ZSP92200802-201007

64744ADOOR, DECK SIDE BOX, LH

main64744-0D020iNCP92,ZSP92200802-201007

64770COVER ASSY, SPARE WHEEL

main64770-0D110-C0iZSP92..GLS201008-201303

BLACK,TRIM1#

main64770-0D140-C0iNCP92,ZSP92..GLI,GLXI; ZSP92..GLS200802-201008

BLACK,TRIM1#; BLACK,TRIM4#

64779ASTOPPER, SPARE WHEEL COVER

main64779-0D030×2iNCP92,ZSP92200802-201007

64995BBOX, DECK FLOOR, RH

main64995-0D050iNCP92,ZSP92200802-201007

64997BBOX, DECK FLOOR, LH

main64997-0D050iNCP92,ZSP92200802-201007

9018305016

main90183-05016

28 parts on this diagram · 1 diagram in section
