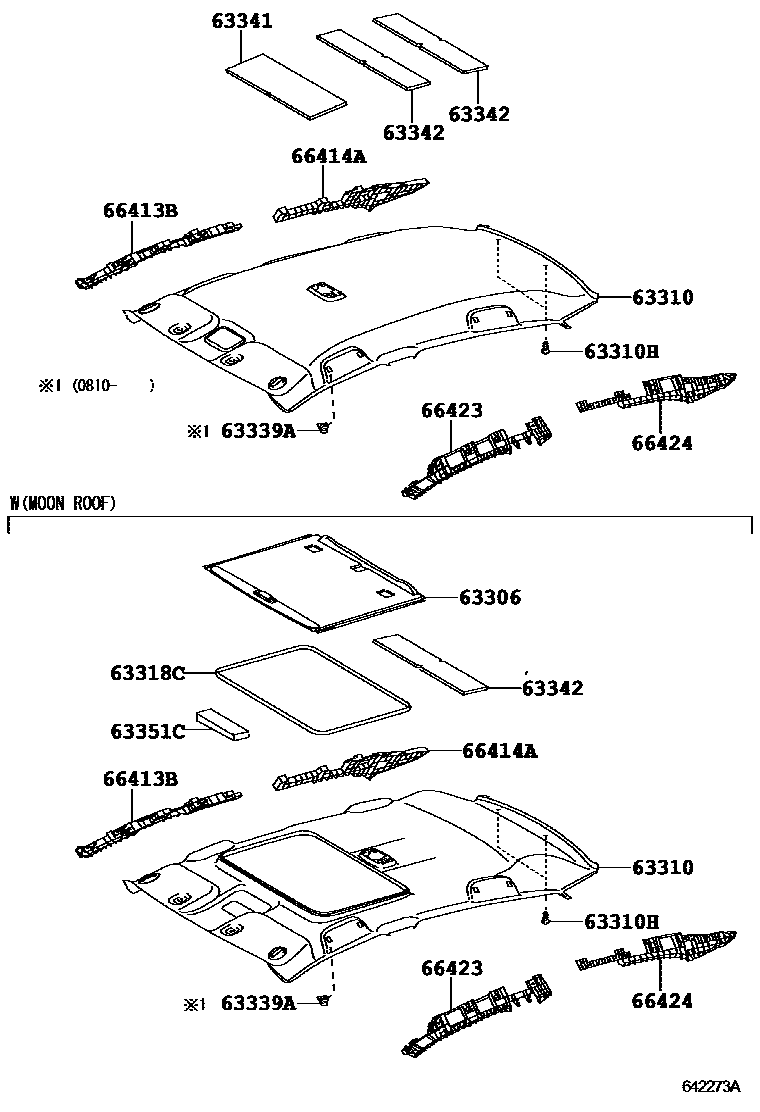

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(CURTAIN SHIELD AIR BAG)

63306TRIM SUB-ASSY, SUNSHADE

main63306-0D040-E0iZSP92..GLI201008-201304

MOON ROOF-WITH,GREGE,TRIM4#

63310HEADLINING ASSY, ROOF

main63310-0D320-B0iZSP92..GLS200802-200810

GRAY,TRIM1#

main63310-0D320-E0iNCP92,ZSP92..GLI,GLXI200802-200810

GREGE,TRIM4#

main63310-0D321-B0iZSP92..GLS201008-201303

GRAY,TRIM1#

main63310-0D321-E0iNCP92,ZSP92..GLI,GLXI200810-201008

GREGE,TRIM4#

main63310-0D330-E0iZSP92..GLI201008-201304

MOON ROOF-WITH,GREGE,TRIM4#

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-B6×2iZSP92..GLS200802-201008

GRAY,TRIM1#

main90467-05164-E2×2iNCP92,ZSP92..GLI,GLXI200802-201008

GREGE,TRIM4#

main90467-C0016-B0×2iZSP92..GLS201201-201303

GRAY,TRIM1#

main90467-C0016-E0×2iNCP92,ZSP92..GLI,GLXI201201-201307

GREGE,TRIM4#

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-12110-E0iZSP92..GLXI200802-201008

L=2215,MOON ROOF-WITH,GREGE,TRIM4#

63339ACOVER, ROOF HEADLINING SERVICE HOLE

main63339-52030-B1×2iZSP92..GLS200810-201008

GRAY,TRIM1#

main63339-52030-E0×2iZSP92..GLI201008-201304

GREGE,TRIM4#

63341PAD, ROOF SILENCER, NO.1

main63343-0D010iNCP92201008

63342PAD, ROOF SILENCER, NO.2

main63341-0D010×2iNCP92; ZSP92..GLXI201008

63351CPAD, ROOF HEADLINING

main63351-0D010iZSP92..GLXI200802-201008

MOON ROOF-WITH

66413BSPACER, SIDE RAIL, FRONT RH

main66413-0D140iZSP92..GLS201008-201303

main66413-0D150iZSP92..GLI201008-201304

MOON ROOF-WITH

main66413-0D180supersedes 66413-0D150iZSP92..GLI201008-201304

SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)

66414ASPACER, SIDE RAIL, REAR RH

main66414-0D140iZSP92..GLS201008-201303

main66414-0D150iZSP92..GLXI200802-201008

MOON ROOF-WITH

main66414-0D180supersedes 66414-0D150iZSP92..GLI200810-201008

SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)

66423SPACER, SIDE RAIL, FRONT LH

main66423-0D130iNCP92,ZSP92200802-201008

main66423-0D140iZSP92..GLXI200802-201008

MOON ROOF-WITH

main66423-0D170supersedes 66423-0D140iZSP92..GLI200810-201008

SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)

66424SPACER, SIDE RAIL, REAR LH

main66424-0D140iNCP92,ZSP92200802-201008

main66424-0D150iZSP92..GLI201008-201304

MOON ROOF-WITH

main66424-0D180supersedes 66424-0D150iZSP92..GLI201008-201304

SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)

12 parts on this diagram · 2 diagrams in section
