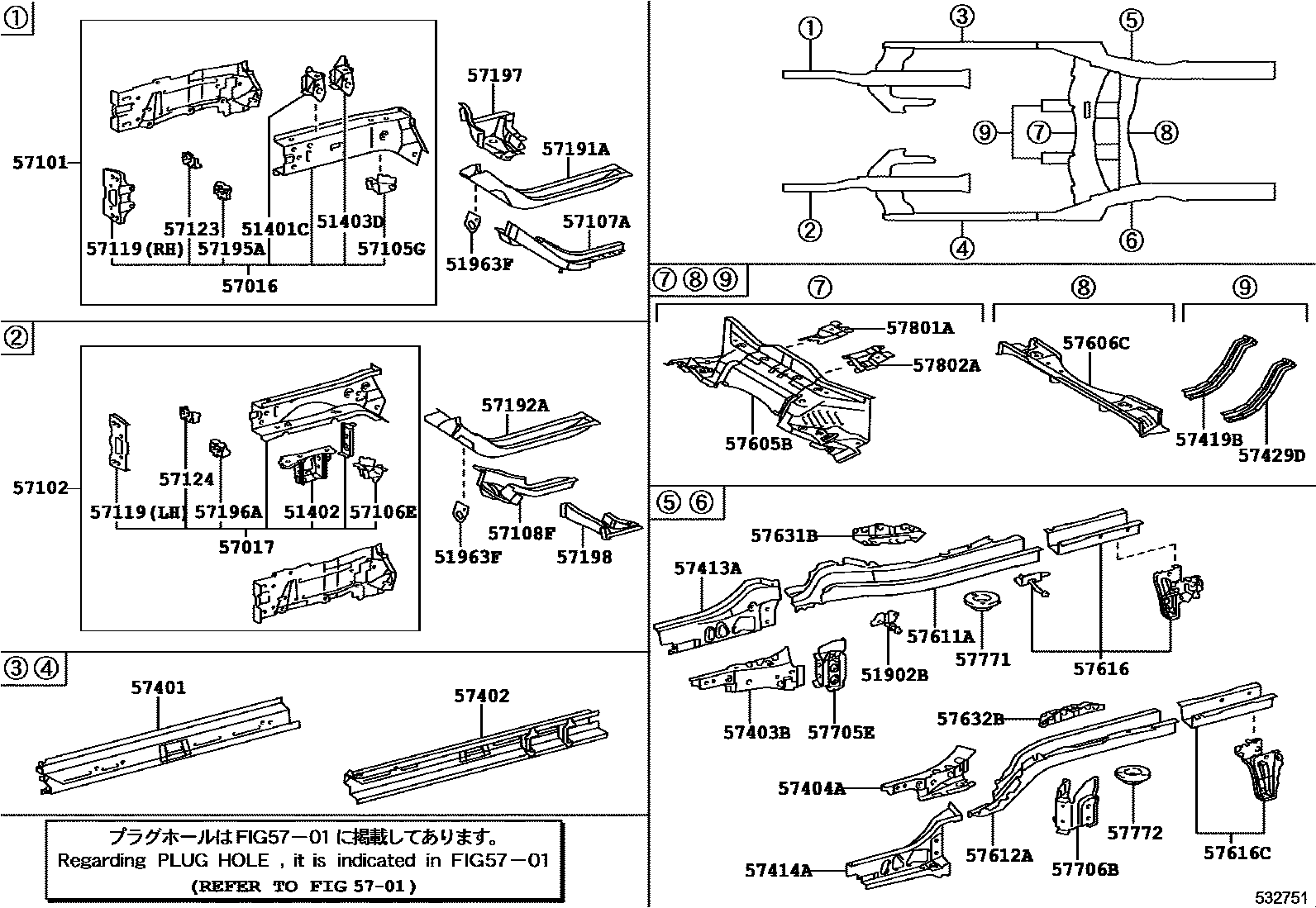

51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0D020i201008-201303

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0D020i200802-201008

51403DBRACKET SUB-ASSY, ENGINE REAR MOUNTING

main51403-0D020i200802-201008

51902BHANGER SUB-ASSY, EXHAUST PIPE, NO.2

main51902-0D020i200802-201008

51963FHOOK, TRANSPORT

main51963-0D030i200802-201008

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0D070i200802-201008

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0D130i200802-201008

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57016-0D902i200802-201008

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57017-0D902i200802-201008

57105GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH

main57105-0D040i200802-201008

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-0D020i200802-201008

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-0D060i200802-201008

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-0D060i201008-201303

57119PLATE, FRONT SIDE MEMBER, FRONT

main57119-0D020i201008

RH

main57129-0D020i201008-201303

LH

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-0D020i200802-201008

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-0D020i200802-201008

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-52020i200802-201008

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-52020i200802-201008

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-0D020i200802-201008

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-0D020i200802-201008

57197BOX, TORQUE, FRONT RH

main57197-0D040i200802-201008

57198BOX, TORQUE, FRONT LH

main57198-0D040i201008

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-0D130i200802-201008

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-0D130i200802-201008

57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-0D010i200802-201008

57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-0D010i200802-201008

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57413-52110i200802-201008

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57414-52110i200802-201008

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-0D050i200802-201008

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-0D050i200802-201008

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0D060i200802-201008

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0D060i200802-201008

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-52070i200802-201008

57612AMEMBER, REAR FLOOR SIDE, LH

main57612-52100i200802-201008

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-0D903i200802-201008

57616CMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0D903i200802-201008

57631BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT RH

main57631-0D050i200802-201008

57632BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT LH

main57632-0D050i200802-201008

57705EBRACKET SUB-ASSY, REAR SUSPENSHION MEMBER MOUNTING, RR RH

main57705-0D020i200802-200810

main57705-0D021i200810-201008

57706BBRACKET SUB-ASSY, REAR SUSPENSION ARM, REAR LH

main57706-0D020i200802-200810

main57706-0D021i200810-201008

57771PLATE, REAR SPRING, RH

main57771-0D050i200802-201008

57772PLATE, REAR SPRING, LH

main57771-0D050i200802-201008

57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH

main57801-0D050i200802-201008

57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH

main57802-0D040i200802-201008
