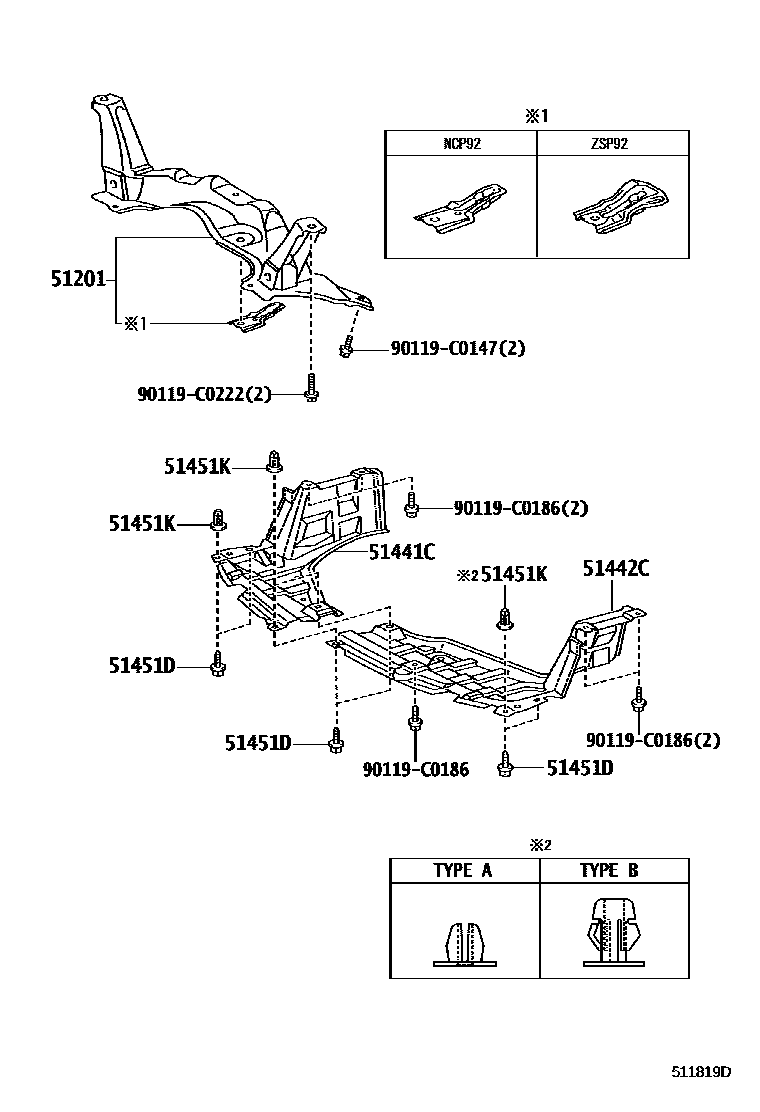

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0D110iNCP92200802-201004

main51201-0D111iNCP92201008-201204

main51201-0D112iNCP92201205

main51201-0D120iZSP92200802-201004

main51201-0D121iZSP92201008-201204

main51201-0D122iZSP92..GLS201205-201303

51441CCOVER, ENGINE UNDER, RH

main51408-0D010iZSP92..GLI,GLXI201008

main51441-0D180iNCP92200802-201007

51442CCOVER, ENGINE UNDER, LH

main51409-0D010iZSP92..GLI,GLXI201008

main51442-0D110iNCP92201008

51451DSCREW, NO.1

main90159-60383×6iNCP92,ZSP92200802-201008

main90159-C0007×6iNCP92,ZSP92201101-201307

51451KGROMMET, SCREW, NO.1

main90189-06076iNCP92,ZSP92200802-201008

90119C0147

main90119-C0147

90119C0186

main90119-C0186

90119C0222

main90119-C0222

8 parts on this diagram · 1 diagram in section
