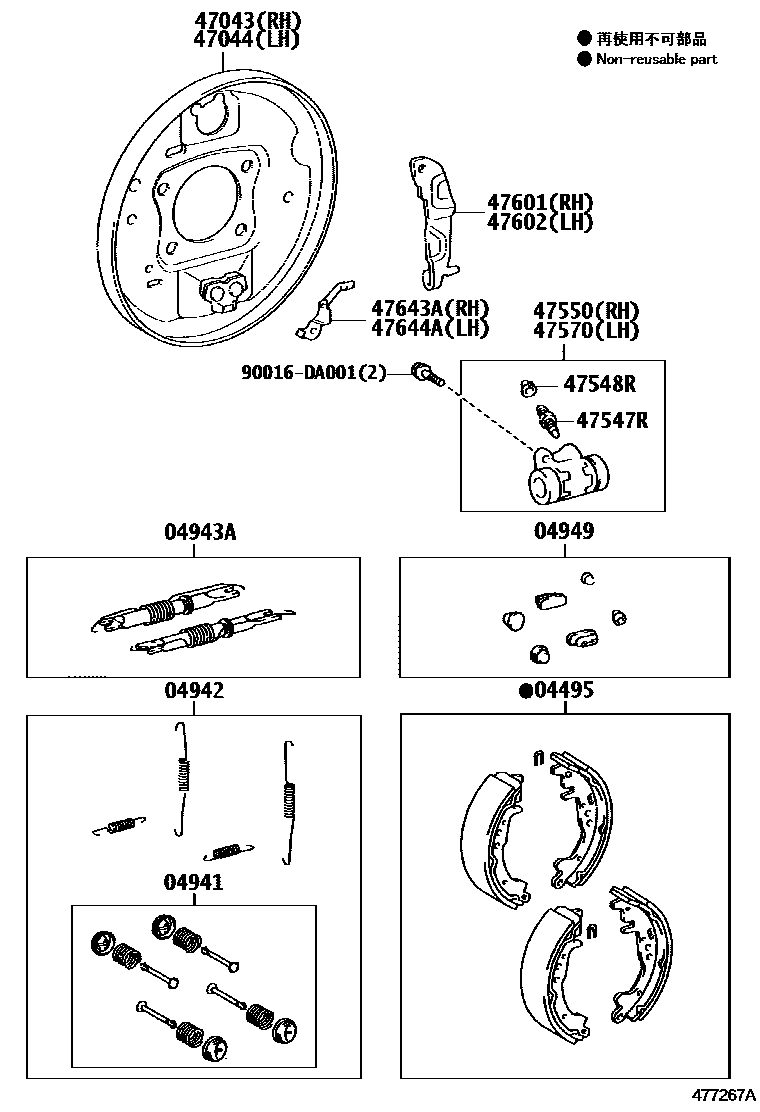

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-0D070iNCP92,ZSP92200802-201303

MARK SABC LN521-FF

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-0D070iNCP92,ZSP92200802-201303

04942SPRING KIT, REAR BRAKE

main04942-0D080iNCP92,ZSP92200802-201303

04943ASTRUT KIT, REAR BRAKE

main04943-0D050iNCP92,ZSP92200802-201303

04949PLUG KIT, REAR BRAKE

main04949-0D040iNCP92,ZSP92200802-201303

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0D070iNCP92,ZSP92200802-201303

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0D070iNCP92,ZSP92200802-201303

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iNCP92,ZSP92200802-201303

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iNCP92,ZSP92200802-201303

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-0D060iNCP92,ZSP92200802-201303

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-0D040iNCP92,ZSP92200802-201303

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-0D070iNCP92,ZSP92200802-201303

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-0D070iNCP92,ZSP92200802-201303

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0D070iNCP92,ZSP92200802-201303

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-0D070iNCP92,ZSP92200802-201303

90016DA001

main90016-DA001

16 parts on this diagram · 1 diagram in section
