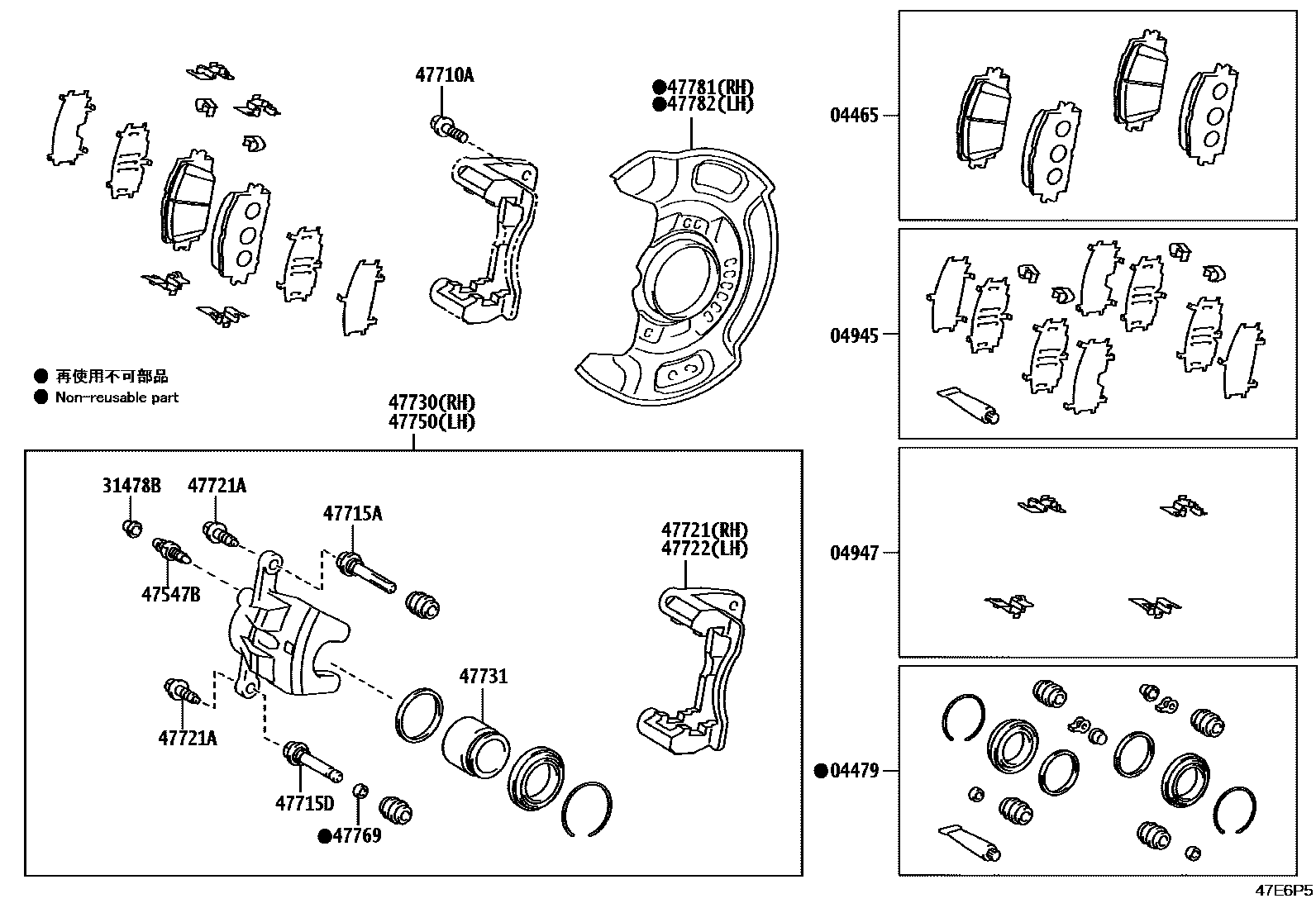

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0D110iZSP92..GLS201203-201303

MARK AK PA563H

main04465-52260iNCP92,ZSP92200802-201202

MARK AK PA563H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D090iZSP92..GLS200802-201303

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0D060iNCP92,ZSP92200802-201303

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02100iNCP92,ZSP92..GLI,GLXI200802-201303

sub04947-0R020

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010iNCP92,ZSP92200802-201303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNCP92,ZSP92200802-201303

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-C0021iNCP92,ZSP92200802-201307

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-06270iNCP92,ZSP92200802-201303

sub47714-0R020

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-06270iZSP92..GLS200802-201303

sub47715-0D210

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0D130iNCP92,ZSP92200802-201303

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iNCP92,ZSP92200802-201303

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0D130iNCP92,ZSP92200802-201303

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D130iNCP92,ZSP92200802-201303

47731PISTON, FRONT DISC BRAKE

main47731-0D130iNCP92,ZSP92200802-201303

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D130iNCP92,ZSP92200802-201303

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0P010iNCP92,ZSP92200802-201303

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D080iNCP92,ZSP92200802-201307

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0D080iNCP92,ZSP92200802-201307

18 parts on this diagram · 1 diagram in section
