STEERING WHEEL

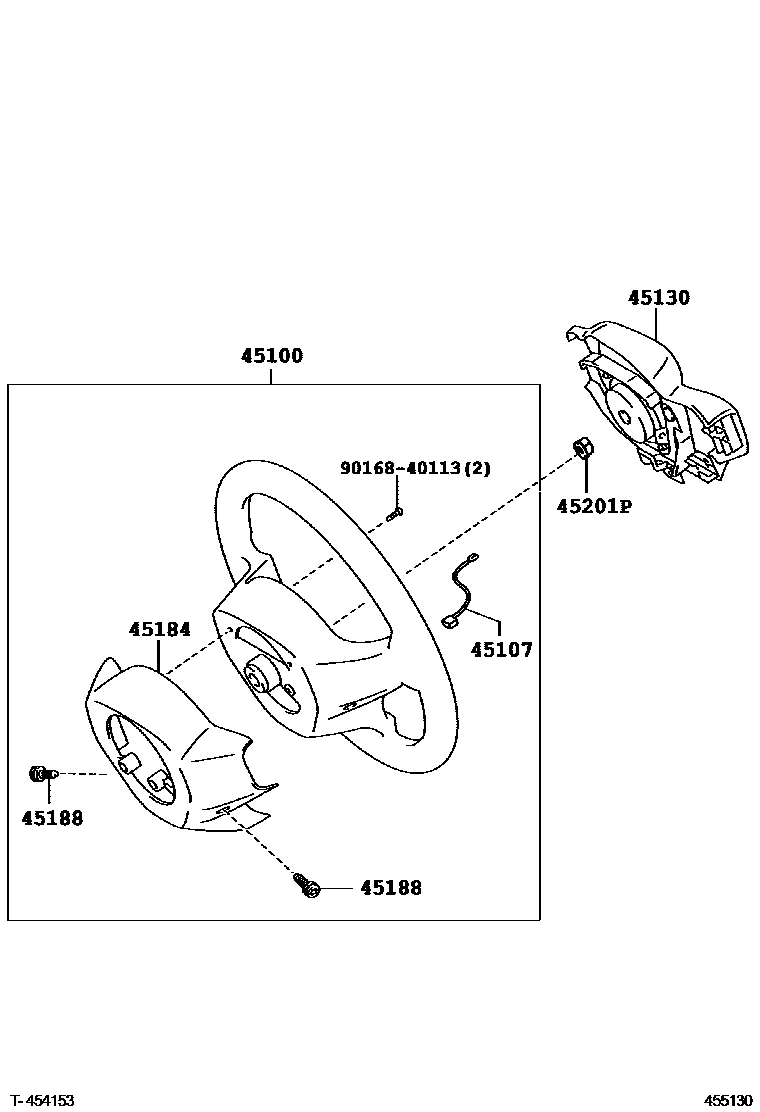

Parts diagram

45100WHEEL ASSY, STEERING

main45100-0D220-B0i200802-201008

3-SPOKE,URETHANE,DK.GRAY,TRIM1#; 3-SPOKE,URETHANE,DK.GRAY,TRIM4#

main45100-0D220-E0i201008-201307

3-SPOKE,URETHANE,ASH BROWN,TRIM4#

main45100-0D470-B0i201008-201303

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-0D470-E0i201008-201307

3-SPOKE,URETHANE,ASH BROWN,TRIM4#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-48010i200802-201008

45130BUTTON ASSY, HORN

main45130-0D210-B0i200802-201008

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main45130-0D210-E0i201008-201307

ASH BROWN,TRIM4#

main45130-0D330-B0i201008-201303

DK.GRAY,TRIM1#

main45130-0D330-E0i201008-201307

ASH BROWN,TRIM4#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-0D090-B0i200802-201008

DK.GRAY,TRIM1#; DK.GRAY,TRIM4#

main45184-0D090-E0i201008-201307

ASH BROWN,TRIM4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200802-201008

L=18

45201PNUT, STEERING WHEEL SET

main90178-C0025i200802-201008

9016840113

main90168-40113

7 parts on this diagram · 2 diagrams in section
