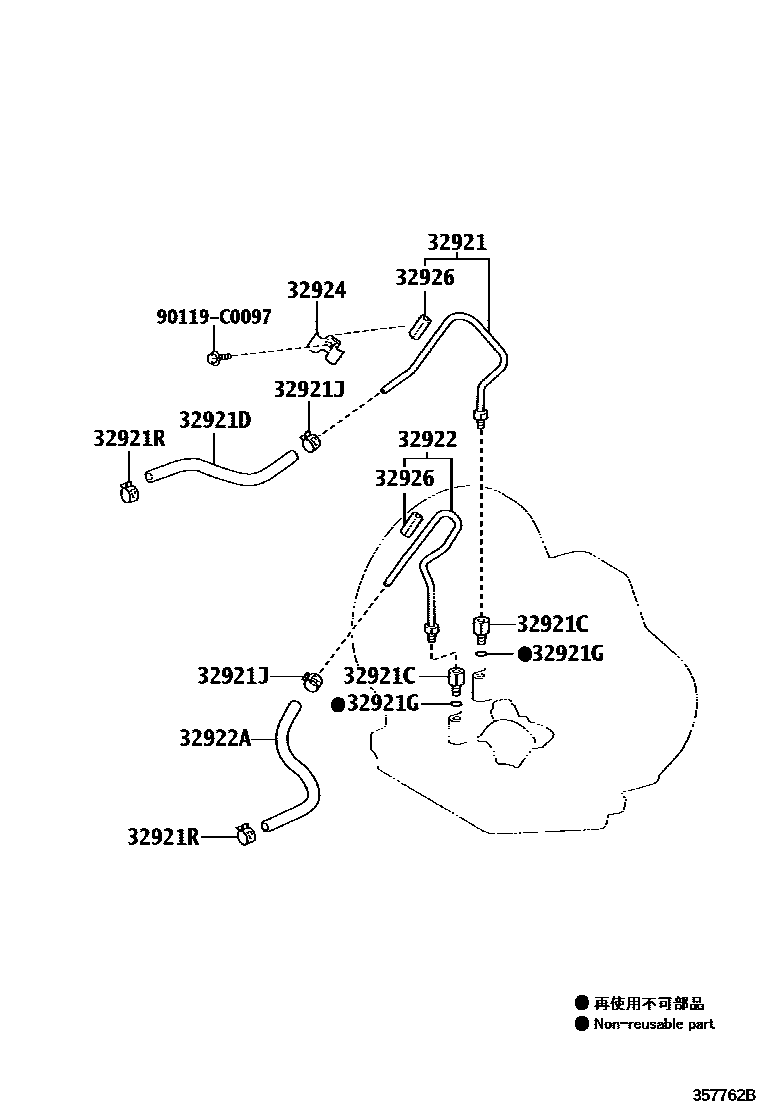

OIL COOLER & TUBE (ATM)

0001 1U441E 0002 1U340E

32921TUBE, OIL COOLER INLET, NO.1

main32921-0D040iNCP92..4FC201008

main32921-0D050iZSP92..GLS201008-201303

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iZSP92..GLS201008-201303

OUTLET

main90407-14003iZSP92..GLS201008-201303

INLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-C0002iZSP92..4FC..(GLI,GLXI)201008

main90445-C0008iNCP92..4FC201008

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iNCP92,ZSP92..4FC200802-201008

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300×2iNCP92,ZSP92..4FC200802-201004

main96137-41501×2iNCP92,ZSP92..4FC201005-201008

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main96135-51300×2iNCP92,ZSP92..4FC201008-201011

main96137-41501×2iNCP92,ZSP92..4FC201012-201307

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0D040iNCP92..4FC201008

main32922-0D050iZSP92..4FC..(GLI,GLXI)201008

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-C0002iZSP92..4FC..(GLI,GLXI)201008

main90445-C0003iNCP92..4FC200802-201008

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-52010iZSP92..4FC..(GLI,GLXI)201008

main90462-10127iNCP92..4FC201008

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×2iZSP92..4FC200802-201008

L=30,ID=8

main32926-30011×2iNCP92..4FC200802-201008

L=25,ID=8

90119C0097

main90119-C0097

11 parts on this diagram · 2 diagrams in section
