TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

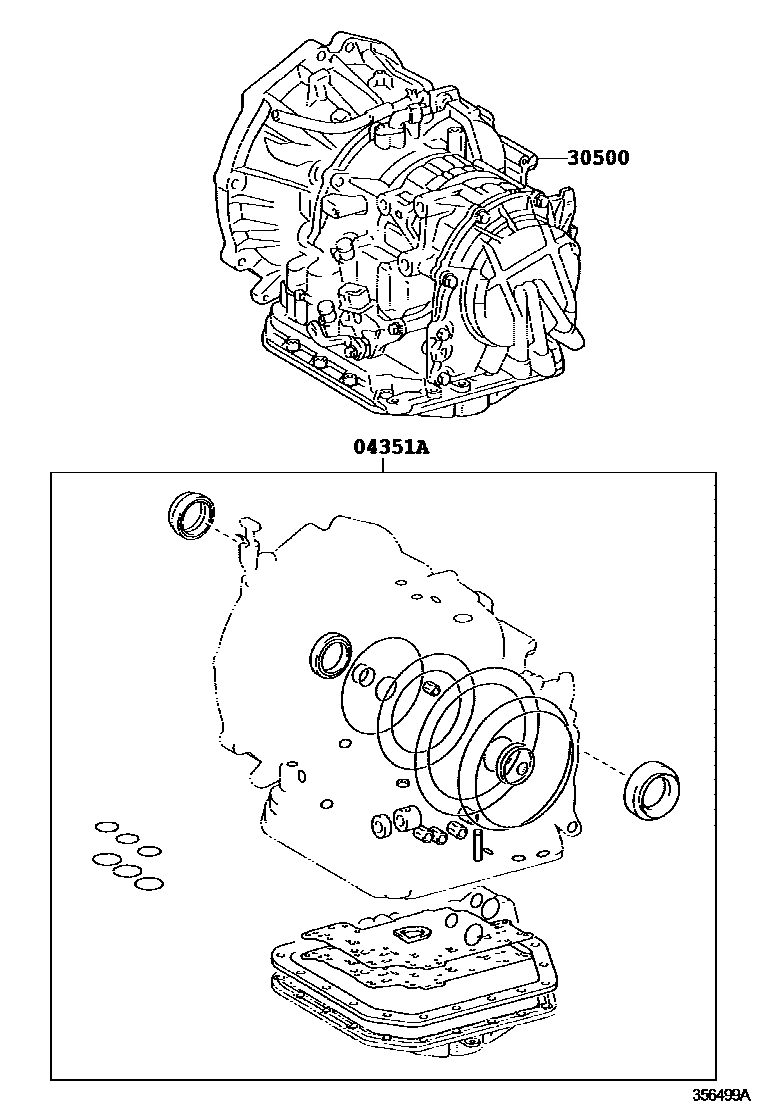

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-52510i200802-201003

main04351-52511supersedes 04351-52590i201003-201008

main04351-52512i201201-201307

main04351-52540i200802-201008

30500TRANSAXLE ASSY, AUTOMATIC

main30500-52340i200802-200909

U441E

main30500-52410i200802-201008

U340E

main30500-52470i200909-201008

U441E

main30500-52480supersedes 30500-52410i201011-201303

U340E

2 parts on this diagram · 2 diagrams in section
