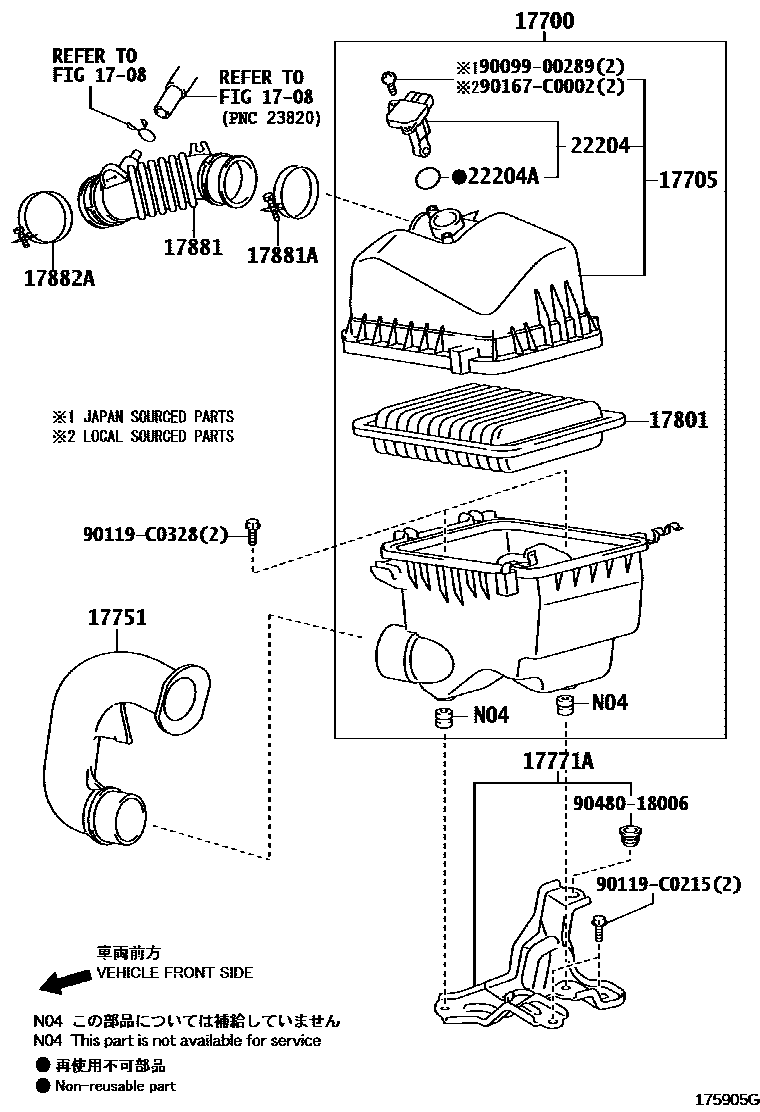

AIR CLEANER

0001 1 0002 1

1708VACUUM PIPING

→ Go to FIG 17-08

17700CLEANER ASSY, AIR

main17700-0M050i2NZFE..NCP92200802-201008

main17700-0T030i1ZRFE..ZSP92200802-201008

main17700-0T160supersedes 17700-0T030i1ZRFE..ZSP92..GLS201011-201303

17705CAP SUB-ASSY, AIR CLEANER

main17705-0M050i2NZFE..NCP92201008

main17705-0T030i1ZRFE..ZSP92200802-201008

main17705-0T160supersedes 17705-0T030i1ZRFE..ZSP92201011-201103

main17705-0T161i1ZRFE..ZSP92..GLS201104-201303

17751INLET, AIR CLEANER, NO.1

main17751-0T020i1ZRFE..ZSP92; 2NZFE..NCP92200802-201008

17771ABRACKET, AIR CLEANER

main17771-21050i1ZRFE..ZSP92; 2NZFE..NCP92200802-201008

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0T020i1ZRFE..ZSP92..GLI,GLXI; 2NZFE..NCP92201008

17881HOSE, AIR CLEANER, NO.1

main17880-0M060i2NZFE..NCP92200802-201008

main17880-0T030i1ZRFE..ZSP92200802-201008

main17880-0T260supersedes 17880-0T030i1ZRFE..ZSP92..GLS201011-201303

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690supersedes 96111-10780i2NZFE..NCP92200802-201008

main96111-10750i1ZRFE..ZSP92..GLI,GLXI201008

NO.2

main96111-10780i1ZRFE..ZSP92200802-201008

NO.1

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10690i2NZFE..NCP92200802-201008

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T010i1ZRFE..ZSP92200802-201008

main22204-0T040supersedes 22204-0T010i1ZRFE..ZSP92201011-201104

main22204-22010i2NZFE..NCP92200802-201008

main22204-28010i1ZRFE..ZSP92201104-201307

MARK 22204-28010

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i2NZFE..NCP92201008

9009900289

main90099-00289

90119C0215

main90119-C0215

90119C0328

main90119-C0328

90167C0002

main90167-C0002

9048018006

main90480-18006

16 parts on this diagram · 2 diagrams in section
