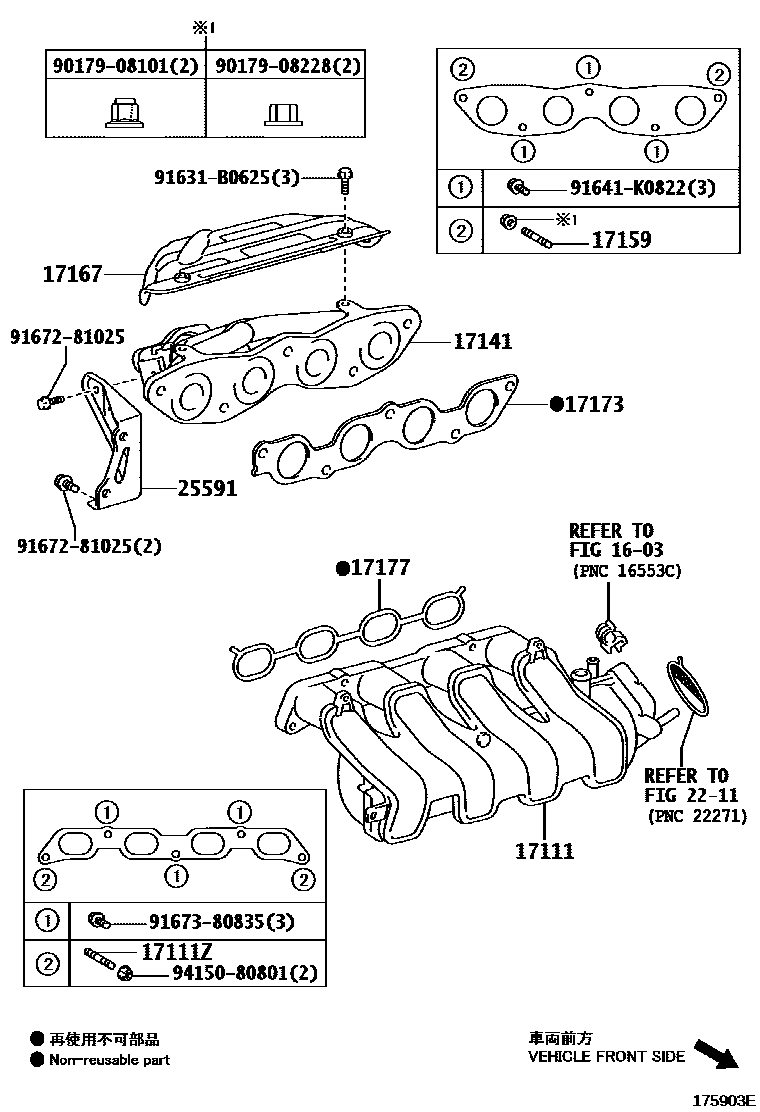

Toyota VIOS (CHINA)140 — MANIFOLD

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

17111MANIFOLD, INTAKE

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

17141MANIFOLD, EXHAUST

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17173GASKET, EXHAUST MANIFOLD TO HEAD

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25591BRACKET, MANIFOLD SUPPORT

9017908101

9017908228

91631B0625

91641K0822

9167281025

9167380835

9415080801

17 parts on this diagram · 2 diagrams in section

MANIFOLD for Toyota VIOS (CHINA)140

This section contains 34 genuine Toyota parts for the MANIFOLD system of the Toyota VIOS (CHINA)140. Key components include: MOUNTING, JOINT, ENGINE COVER, RADIATOR & WATER OUTLET, MANIFOLD, INTAKE, BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD).
