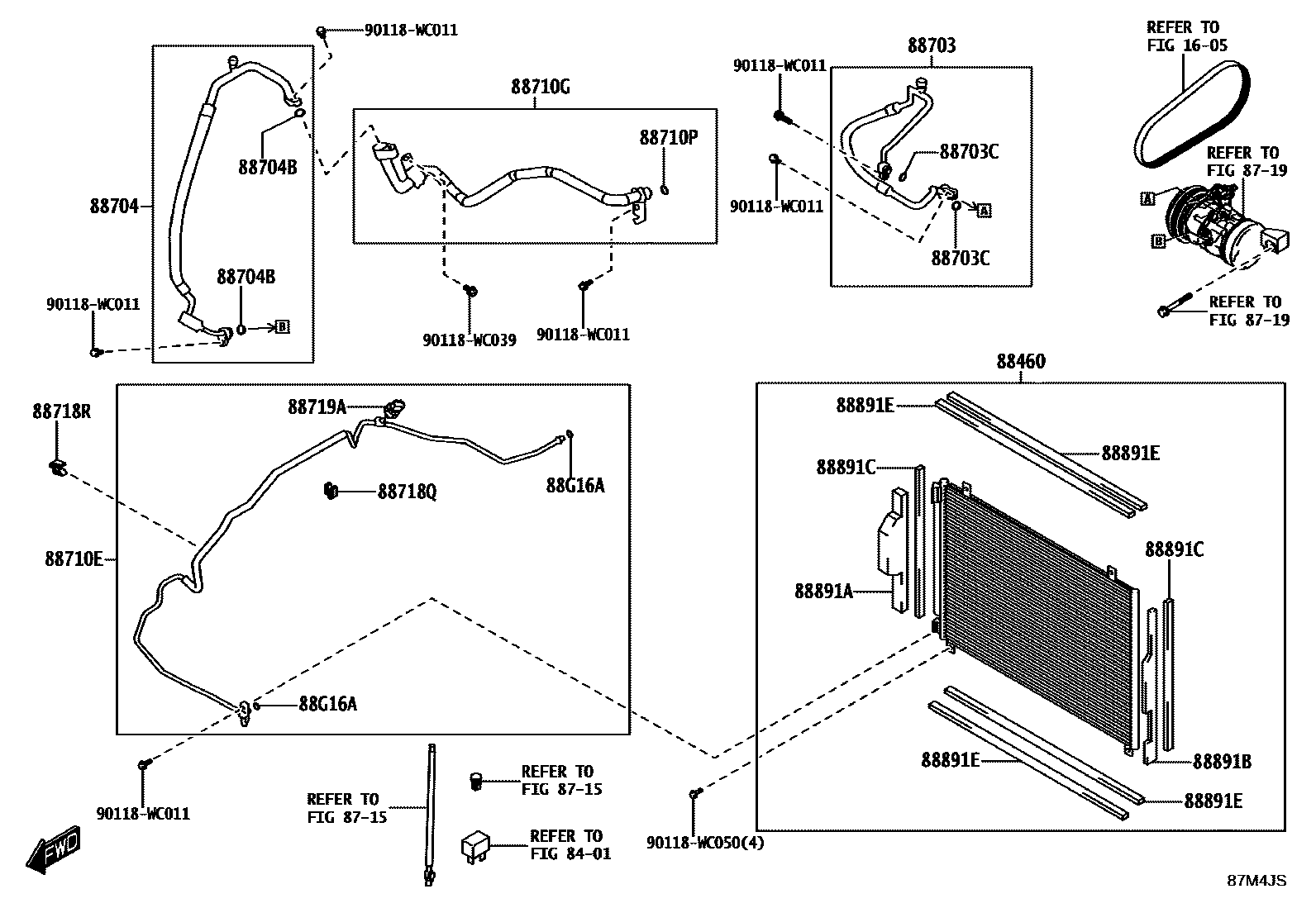

HEATING & AIR CONDITIONING - COOLER PIPING

1605V-BELT

→ Go to FIG 16-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88460-WC006iK15B202404

88703HOSE SUB-ASSY, DISCHARGE

main88711-WC005iK15B202404

88703CRING, O(FOR DISCHARGE HOSE)

main90118-WC634iK15B202404

ID=10.8,OD=13.2

88704HOSE SUB-ASSY, SUCTION

main88704-WC016iK15B202404

88704BRING, O(FOR SUCTION HOSE)

main90118-WC635iK15B202404

ID=13.4,OD=15.8

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88706-WC016iK15B202404

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88707-WC002iK15B202404

88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90118-WC635iK15B202404

ID=13.4,OD=15.8

88718QCLAMP, PIPING

main88718-WC001iK15B202404

88718RCLAMP, PIPING

main90118-WC243iK15B202404

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-WC004iK15B202404

88891APACKING A (FOR COOLER)

main88578-WC024iK15B202404

88891BPACKING B (FOR COOLER)

main88578-WC023iK15B202404

88891CPACKING C (FOR COOLER)

main88578-WC022iK15B202404

88891EPACKING E (FOR COOLER)

main88578-WC021iK15B202404

88G16ARING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)

main90118-WC633iK15B202404

ID=6.7,OD=8.5

90118WC011

main90118-WC011

90118WC039

main90118-WC039

90118WC050

main90118-WC050

23 parts on this diagram · 1 diagram in section
