Toyota URBAN CRUISER 134 — TELEPHONE & MAYDAY

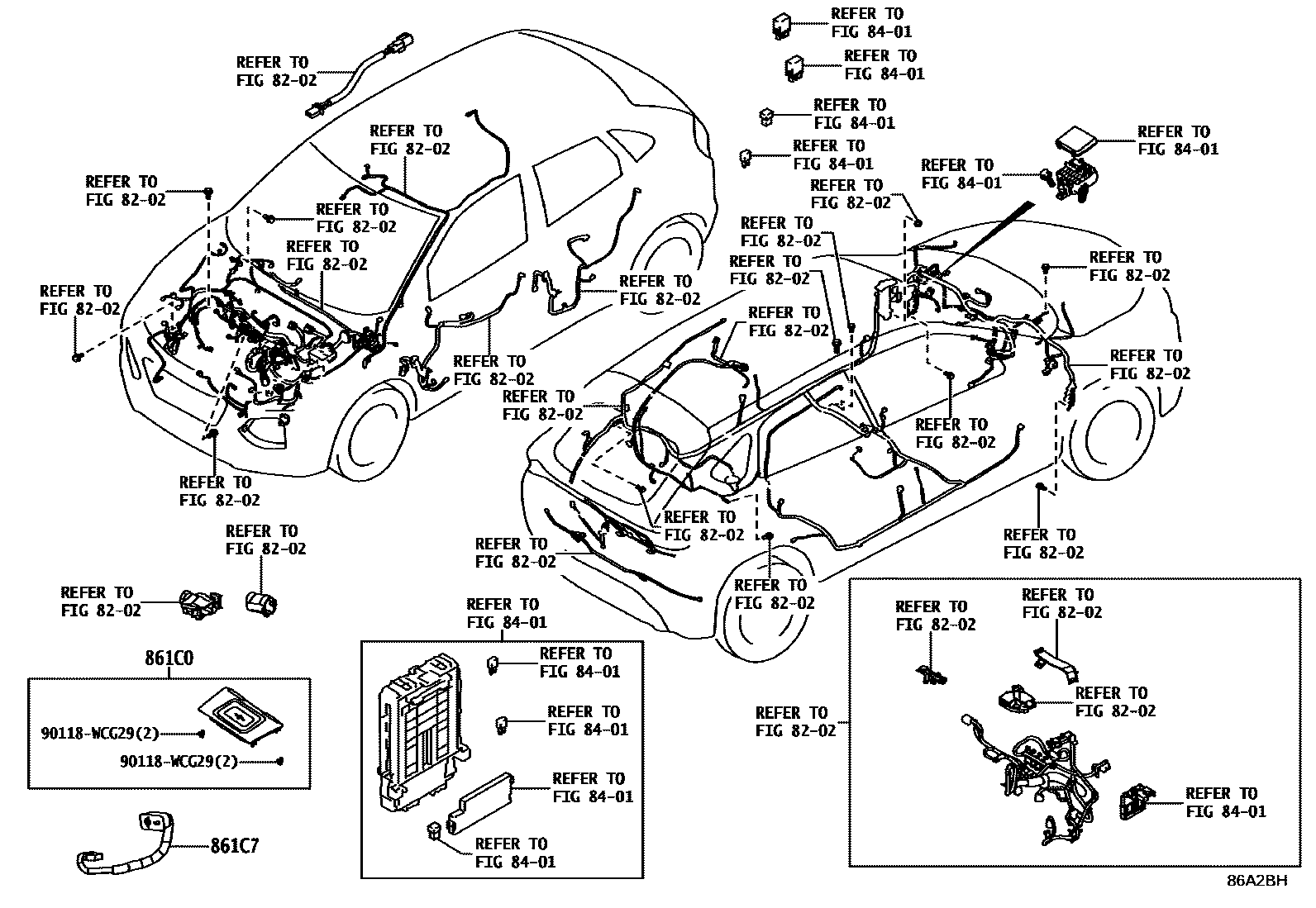

Parts diagram
8202WIRING & CLAMP
→ Go to FIG 82-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
861C0CRADLE ASSY, MOBILE WIRELESS CHARGER
861C0-WC003
861C7CORD, MOBILE WIRELESS CHARGER
861C7-WC001
90118WCG29
90118-WCG29

5 parts on this diagram · 1 diagram in section

TELEPHONE & MAYDAY for Toyota URBAN CRUISER 134

This section contains 5 genuine Toyota parts for the TELEPHONE & MAYDAY system of the Toyota URBAN CRUISER 134. Key components include: WIRING & CLAMP, SWITCH & RELAY & COMPUTER, CRADLE ASSY, MOBILE WIRELESS CHARGER, CORD, MOBILE WIRELESS CHARGER.
