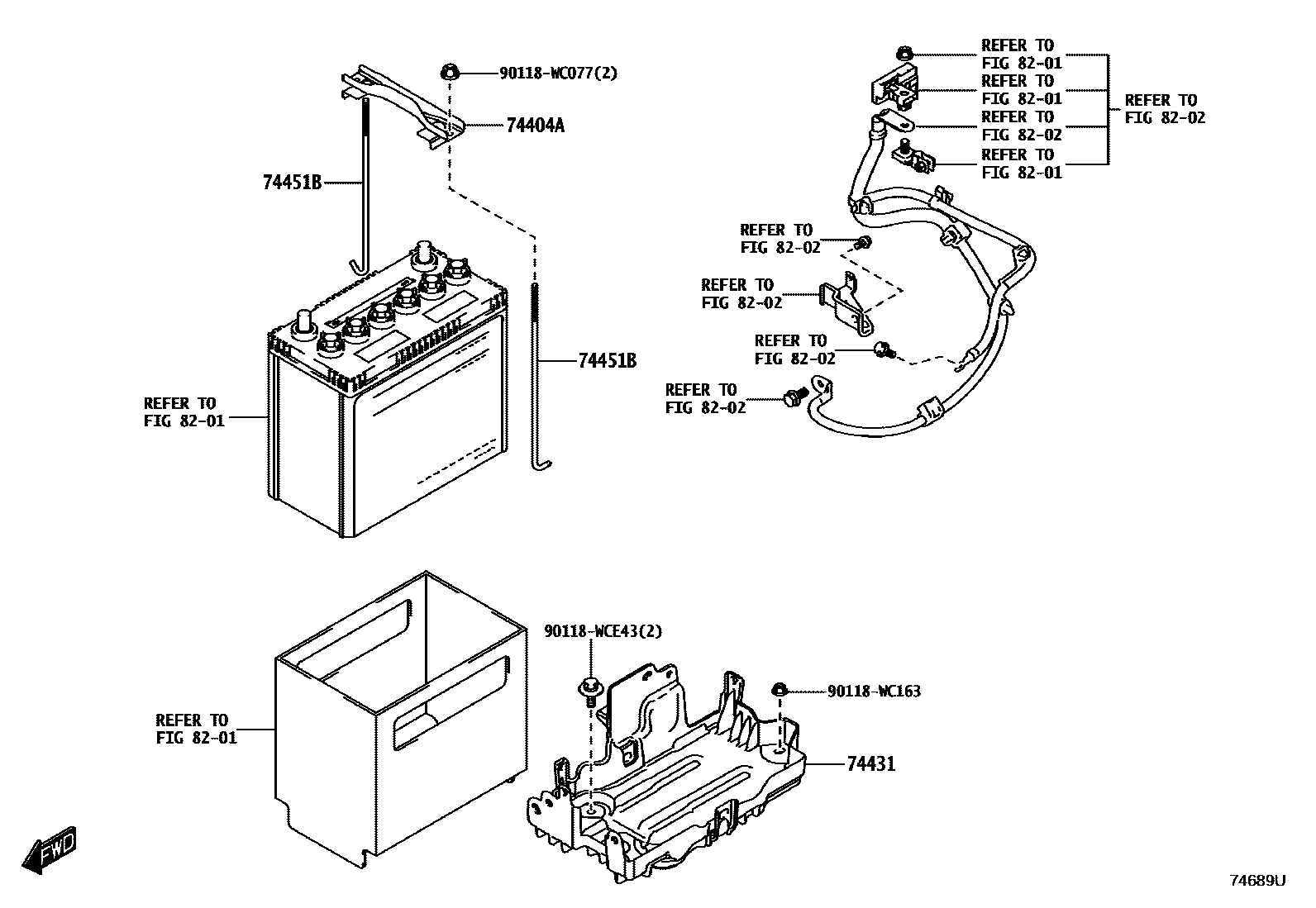

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-WC005iK15B202404

74431TRAY, BATTERY

main74410-WC014iK15B202404

74451BBOLT, BATTERY CLAMP

main74451-WC001iK15B202404

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

8202WIRING & CLAMP

→ Go to FIG 82-02

90118WC077

main90118-WC077

90118WC163

main90118-WC163

90118WCE43

main90118-WCE43

8 parts on this diagram · 1 diagram in section
