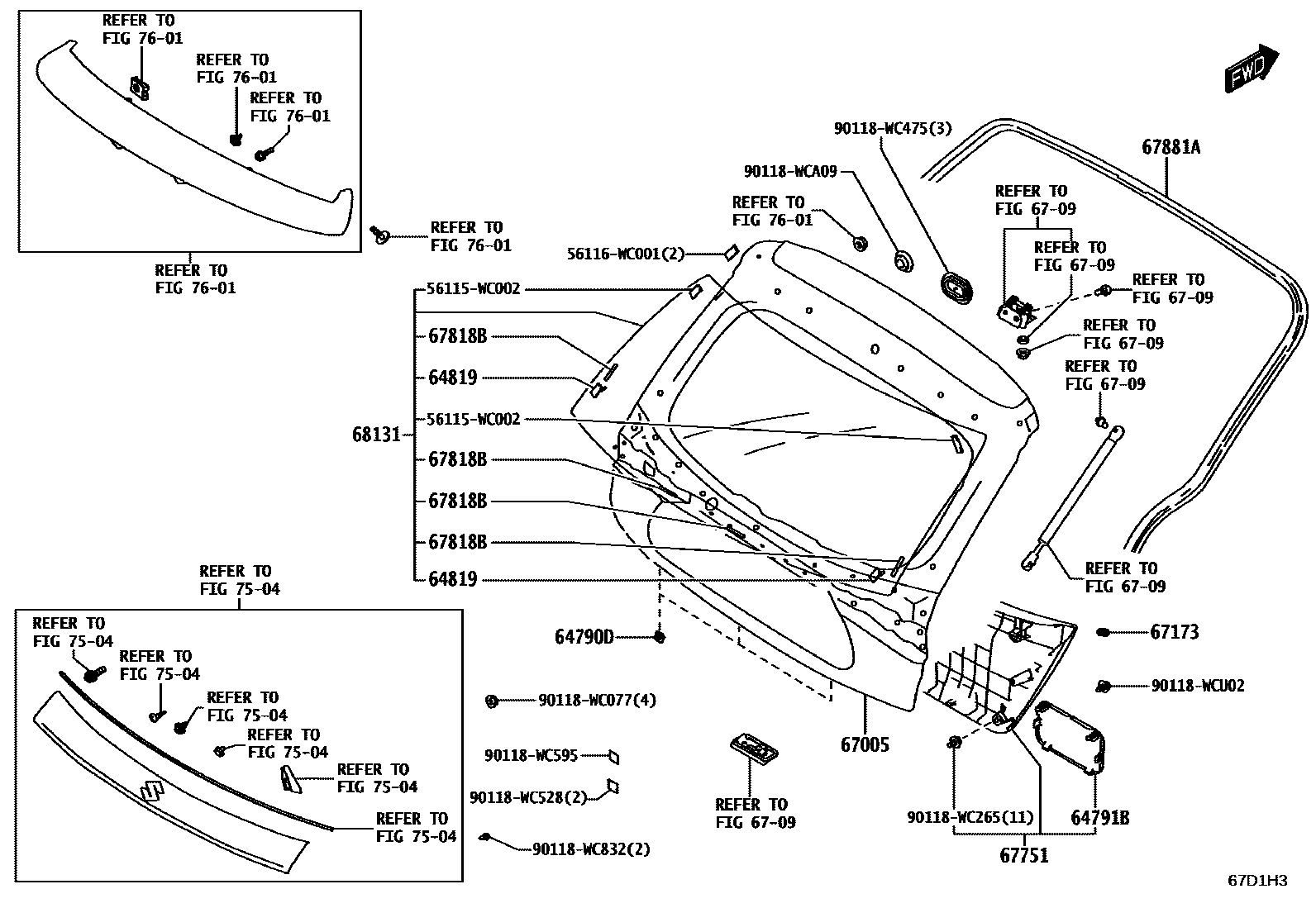

BACK DOOR PANEL & GLASS

64790DCAP, BACK DOOR TRIM PANEL

main90118-WCF63iK15B202404

64791BCOVER, BACK DOOR TRIM

main64791-WC001iK15B202404

64819SPACER, BACK WINDOW GLASS, NO.2

main64827-WC001iK15B202404

67005PANEL SUB-ASSY, BACK DOOR

main67005-WC021iK15B202404

6709

67173CUSHION, BACK DOOR

main90118-WCG72iK15B202404

67751BOARD, BACK DOOR TRIM

main67751-WC010iK15B202404

67818BSPACER, BACK WINDOW GLASS

main56116-WC002iK15B202404

67881AWEATHERSTRIP, BACK DOOR

main67881-WC009iK15B202404

68131GLASS, BACK DOOR

main68105-WC020

main68105-WC021

7504

7601

56115WC002FILM, INNER REAR VIEW MIRROR TO WINDSHIELD

main56115-WC002

56116WC001SPACER, WINDSHIELD GLASS

main56116-WC001

90118WC077

main90118-WC077

90118WC265

main90118-WC265

90118WC475

main90118-WC475

90118WC528

main90118-WC528

90118WC595

main90118-WC595

90118WC832

main90118-WC832

90118WCA09

main90118-WCA09

90118WCU02

main90118-WCU02

22 parts on this diagram · 1 diagram in section
