Toyota URBAN CRUISER 134 — ROOF SIDE VENTILATOR

5701HOLE PLUG

→ Go to FIG 57-01

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

62940CDUCT ASSY, QUARTER VENT

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

7503SIDE MOULDING

→ Go to FIG 75-03

7701FUEL TANK & TUBE

→ Go to FIG 77-01

6 parts on this diagram · 1 diagram in section

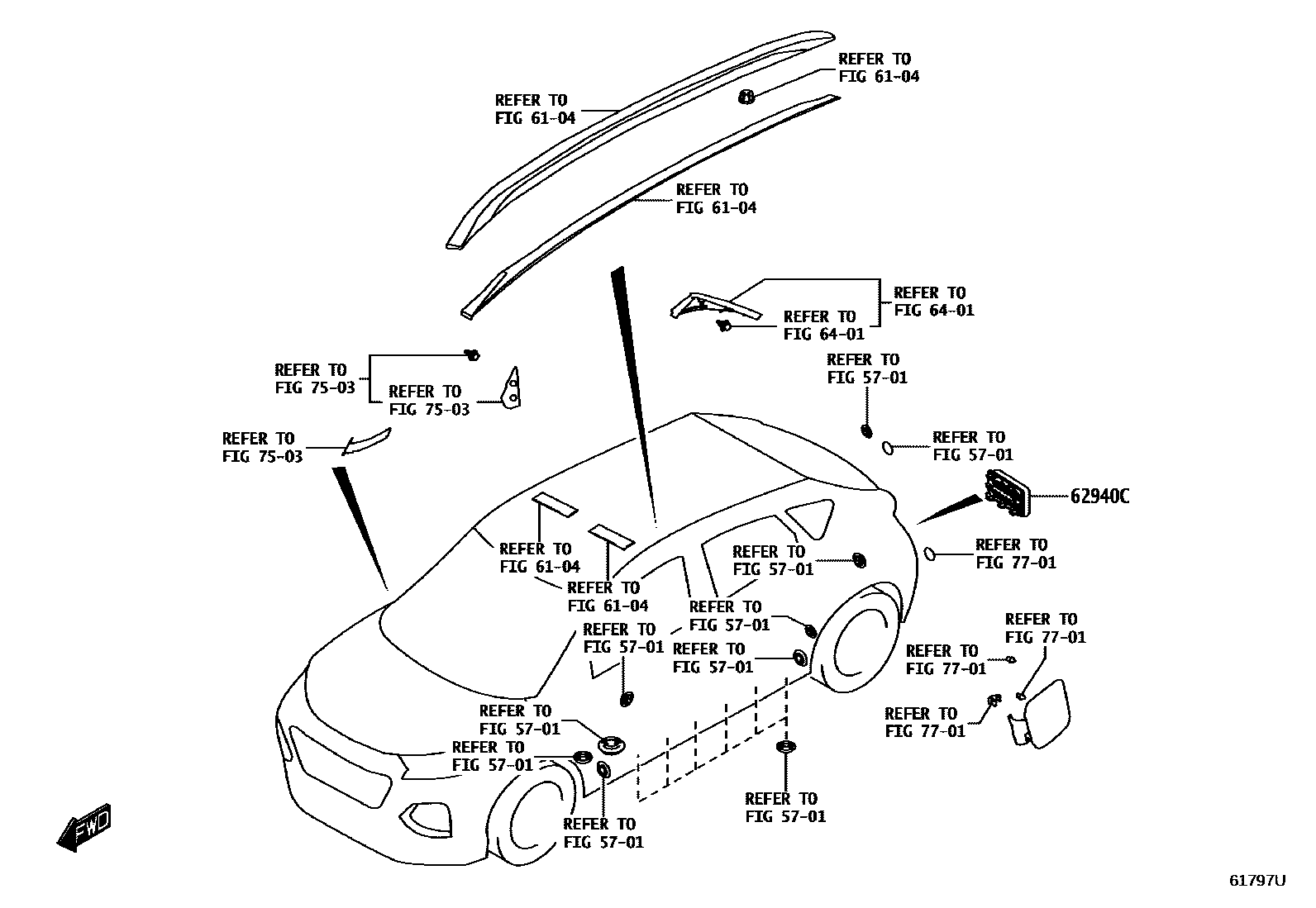

ROOF SIDE VENTILATOR for Toyota URBAN CRUISER 134

This section contains 6 genuine Toyota parts for the ROOF SIDE VENTILATOR system of the Toyota URBAN CRUISER 134. Key components include: HOLE PLUG, ROOF PANEL & BACK WINDOW GLASS, DUCT ASSY, QUARTER VENT, INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING, SIDE MOULDING.
