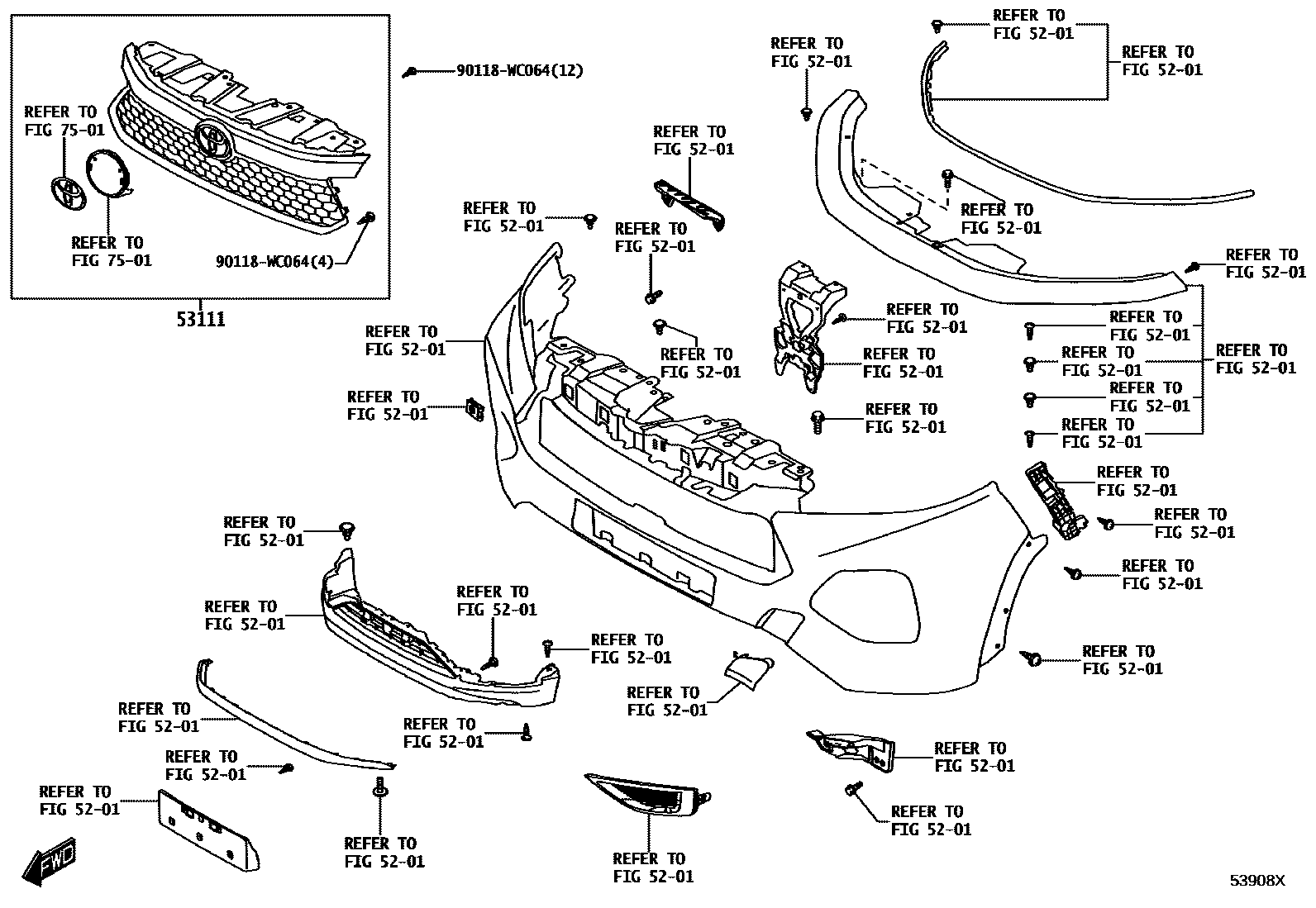

RADIATOR GRILLE

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53111GRILLE, RADIATOR

main53111-WC014iK15B..LHD..4FC..M; K15B..LHD..5F; K15B..RHD..4FC..M; K15B..RHD..5F..M202404

POS.1; POS.2; POS.4; POS.5; POS.8; POS.9

main53111-WC016iK15B..5F..P; K15B..LHD..P; K15B..RHD..4FC..P202404

POS.10; POS.3; POS.6; POS.7

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

90118WC064

main90118-WC064

4 parts on this diagram · 1 diagram in section
