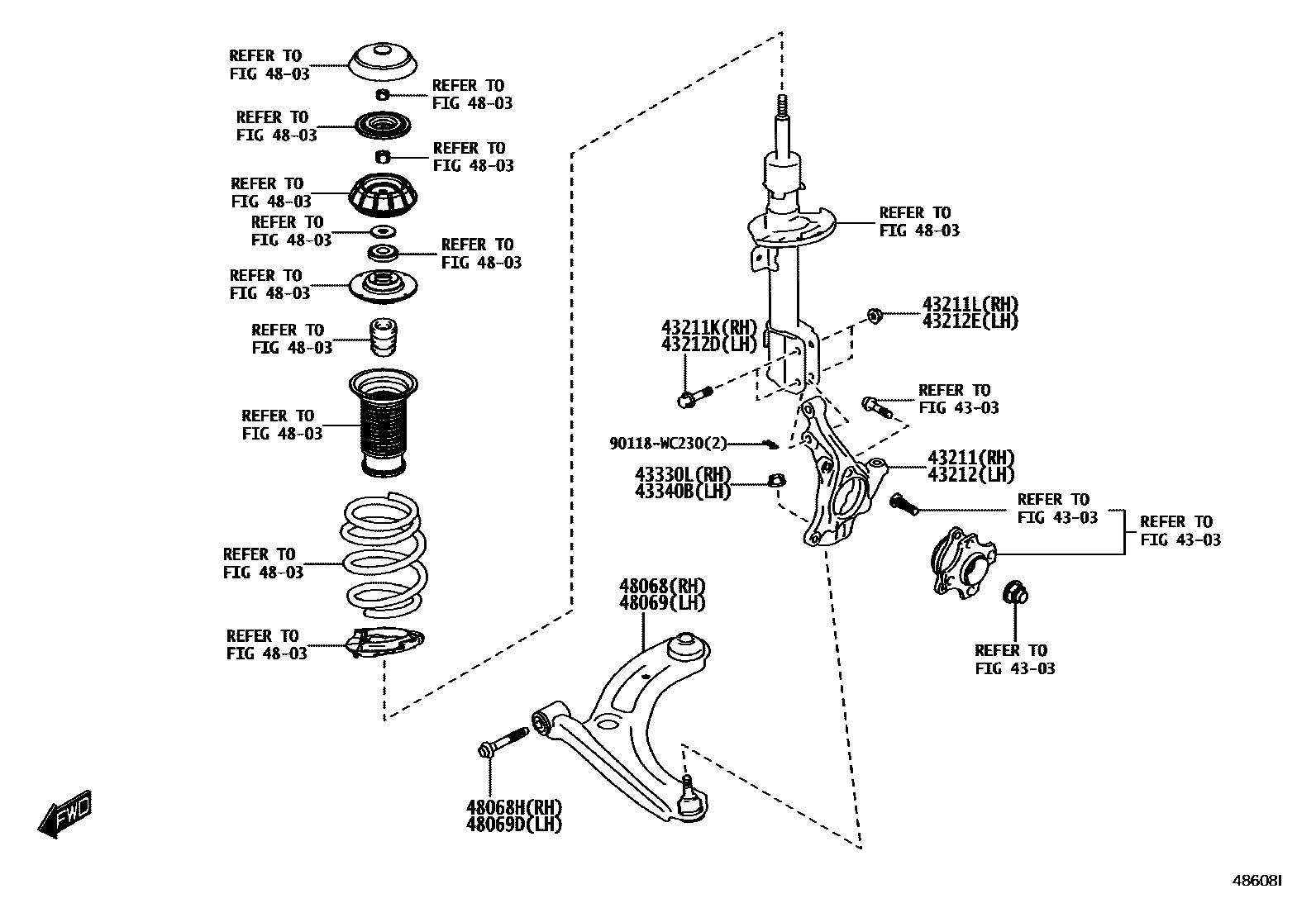

FRONT AXLE ARM & STEERING KNUCKLE

4303

43211KNUCKLE, STEERING, RH

main43211-WC008iK15B202404

43211KBOLT (FOR STEERING KNUCKLE RH)

main90118-WCG05×2iK15B202404

43211LNUT (FOR STEERING KNUCKLE RH)

main90118-WC488×2iK15B202404

43212KNUCKLE, STEERING, LH

main43212-WC008iK15B202404

43212DBOLT (FOR STEERING KNUCKLE LH)

main90118-WCG05×2iK15B202404

43212ENUT (FOR STEERING KNUCKLE LH)

main90118-WC488×2iK15B202404

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90118-WC167iK15B202404

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90118-WC167iK15B202404

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-WC006iK15B202404

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90118-WC530iK15B202404

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-WC006iK15B202404

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90118-WC530iK15B202404

90118WC230

main90118-WC230

15 parts on this diagram · 1 diagram in section
