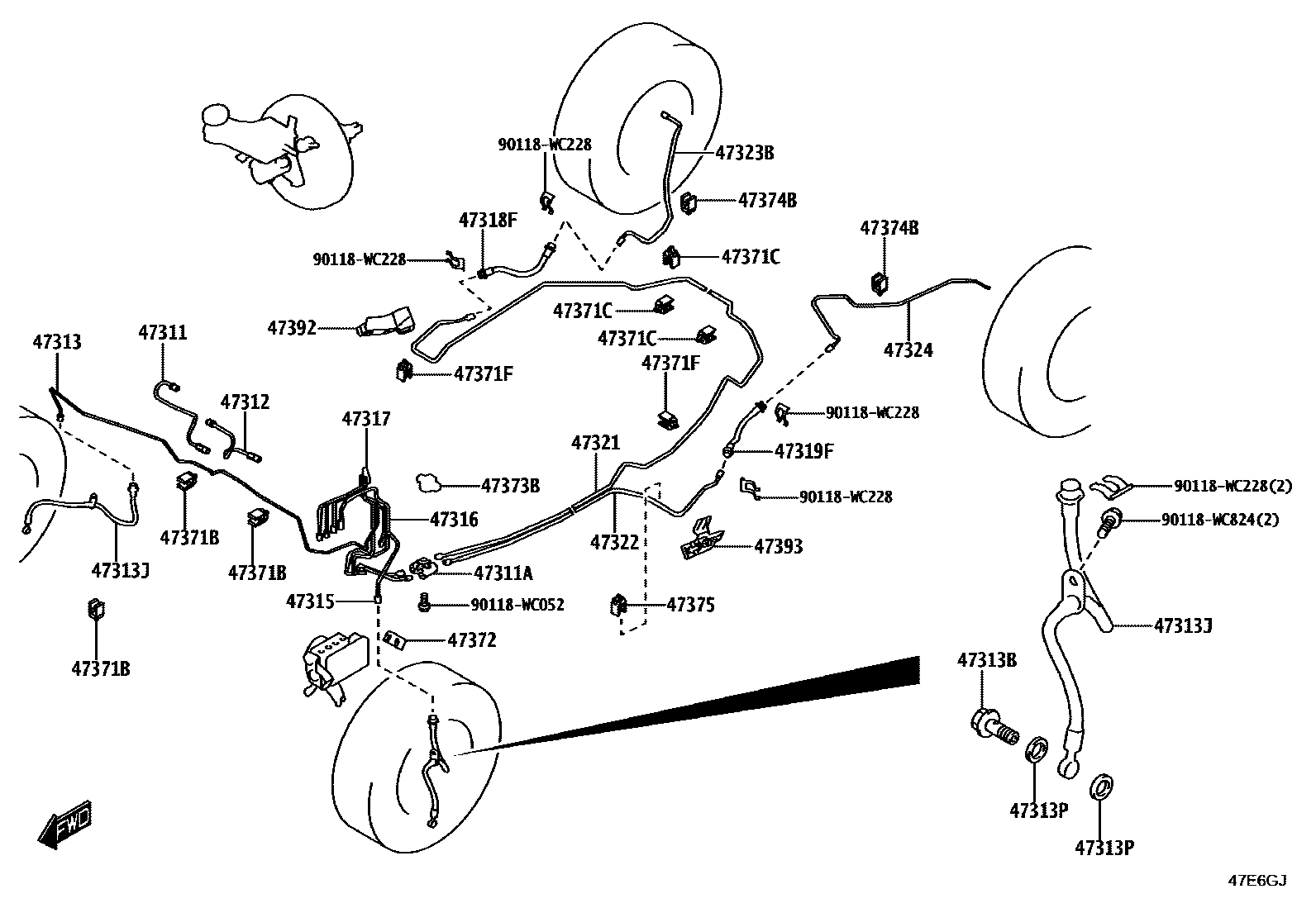

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
POS.10; POS.2; POS.5; POS.7; POS.8; POS.9
POS.1; POS.3; POS.4; POS.6
47311AWAY(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
POS.10; POS.2; POS.5; POS.7; POS.8; POS.9
POS.1; POS.3; POS.4; POS.6
47313TUBE, FRONT BRAKE, NO.3
POS.1; POS.3; POS.4; POS.6
POS.10; POS.2; POS.5; POS.7; POS.8; POS.9
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47315TUBE, FRONT BRAKE, NO.5
47316TUBE, FRONT BRAKE, NO.6
47317TUBE, FRONT BRAKE, NO.7
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47323BTUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371FCLAMP, BRAKE TUBE, NO.10
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
47392INSULATOR, BRAKE TUBE HEAT
47393INSULATOR, BRAKE TUBE HEAT
90118WC052
main90118-WC052
90118WC228
main90118-WC228
90118WC824
main90118-WC824
28 parts on this diagram · 3 diagrams in section
