Toyota URBAN CRUISER 134 — FRONT AXLE HOUSING & DIFFERENTIAL

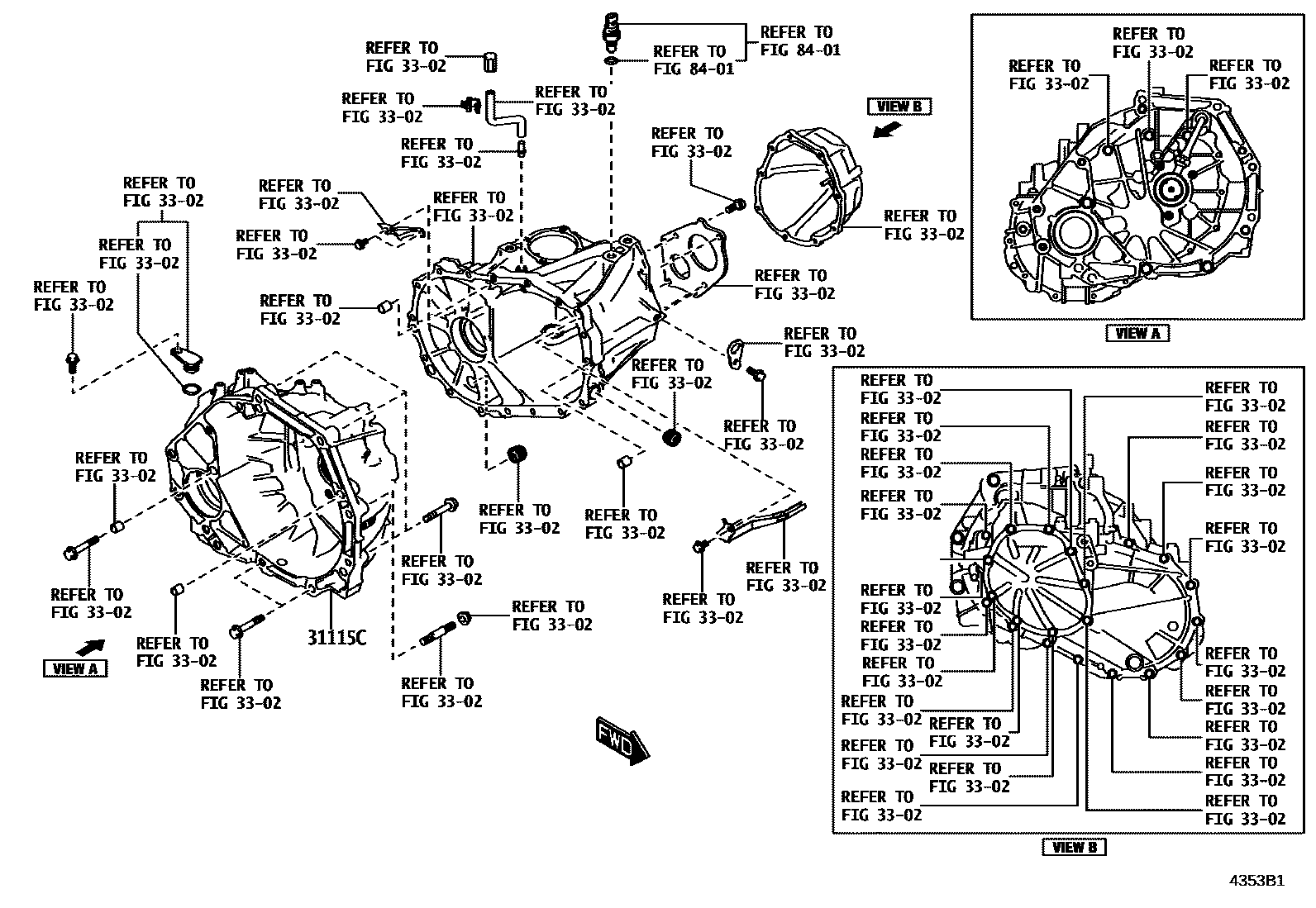

31115CCASE, FRONT TRANSAXLE(MTM)

3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)

→ Go to FIG 33-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

3 parts on this diagram · 4 diagrams in section

FRONT AXLE HOUSING & DIFFERENTIAL for Toyota URBAN CRUISER 134

This section contains 22 genuine Toyota parts for the FRONT AXLE HOUSING & DIFFERENTIAL system of the Toyota URBAN CRUISER 134. Key components include: CASE, FRONT TRANSAXLE(MTM), CLUTCH HOUSING & TRANSMISSION CASE (MTM), TRANSMISSION CASE & OIL PAN (ATM), HOUSING, TRANSAXLE, PINION, DIFFERENTIAL DRIVE.
