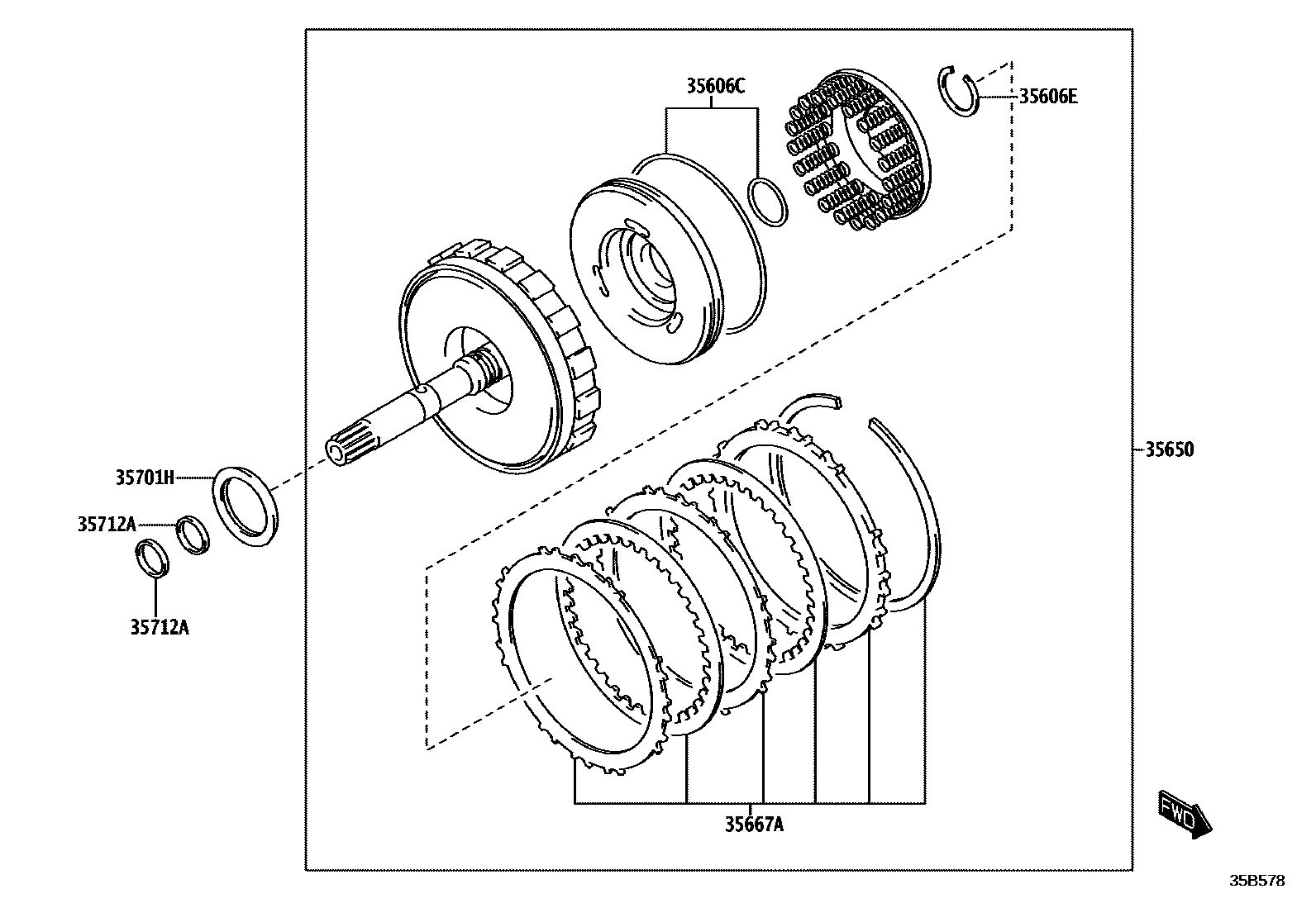

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1 0002 1 0003 1

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90118-WC766iK15B..LHD..P202404

POS.4

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90118-WC768iK15B..LHD..P202404

POS.4

35650CLUTCH ASSY, REAR MULTIPLE DISC

main35650-WC002iK15B..LHD..P202404

POS.4

35667ADISK, DIRECT CLUTCH

main35667-WC002iK15B..LHD..P202404

POS.4

35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)

main90118-WC752iK15B..LHD..P202404

POS.4

35712ARING, INPUT SHAFT OIL SEAL

main35712-WC001×2iK15B..LHD..P202404

POS.4

6 parts on this diagram · 3 diagrams in section
