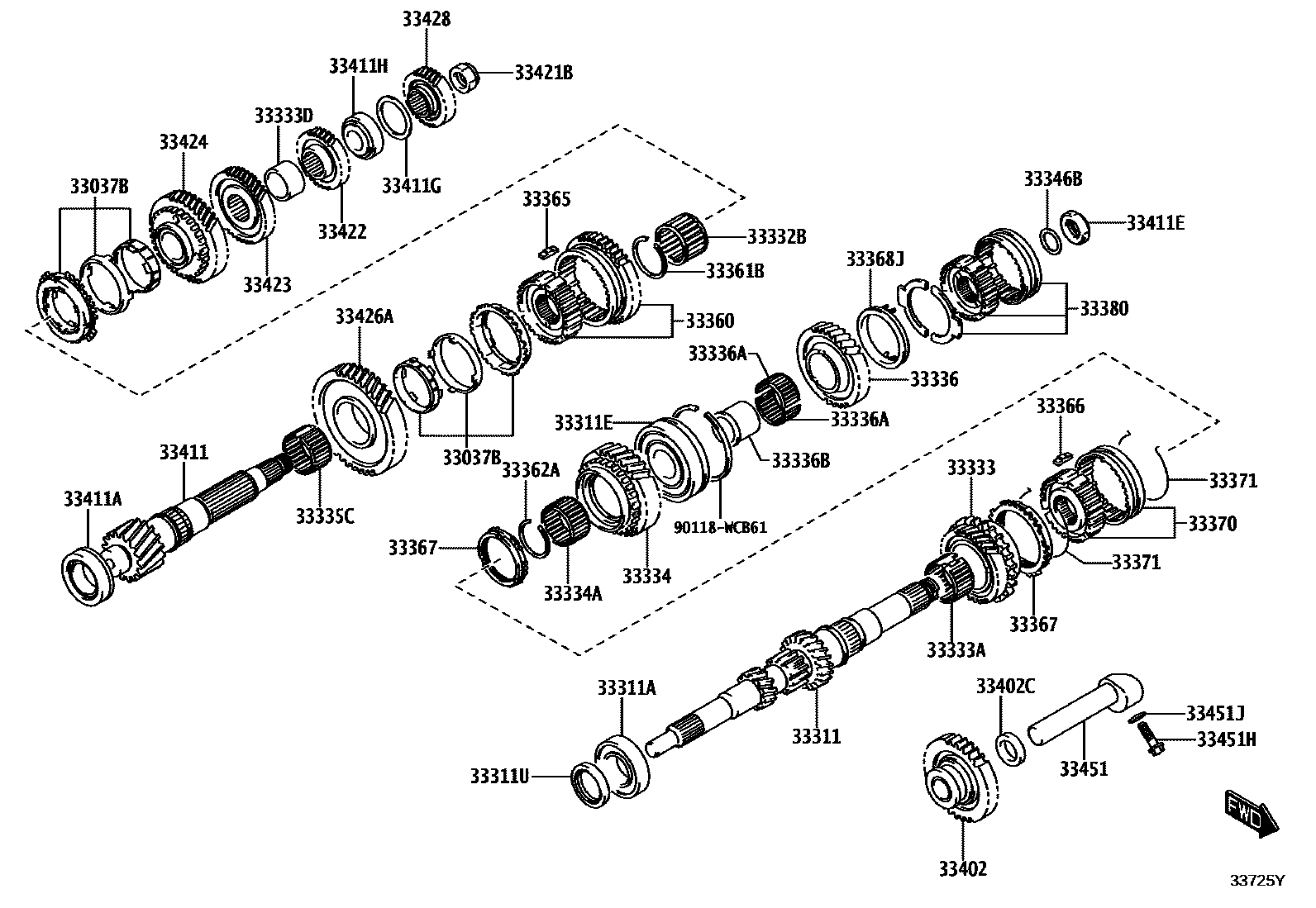

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
POS.1
33311SHAFT, INPUT
POS.1
33311ABEARING (FOR INPUT SHAFT FRONT)
POS.1
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
POS.1
33311USEAL, OIL (FOR INPUT SHAFT)
POS.1
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
POS.1
33333GEAR, 3RD
POS.1
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
POS.1
33333DSPACER (FOR 3RD GEAR)
POS.1
33334GEAR, 4TH
POS.1
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
POS.1
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
POS.1
33336GEAR, 5TH
POS.1
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
POS.1
33336BSPACER (FOR 5TH GEAR BEARING)
POS.1
33346BWASHER, 5TH GEAR THRUST
POS.1
33360HUB ASSY, SYNCHRONIZER, NO.1
POS.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
POS.1
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
POS.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
POS.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
POS.1
33367RING, SYNCHRONIZER, NO.1
POS.1
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
POS.1
33370HUB ASSY, SYNCHRONIZER, NO.2
POS.1
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
POS.1
33380HUB ASSY, SYNCHRONIZER, NO.3
POS.1
33402GEAR SUB-ASSY, REVERSE IDLER
POS.1
33402CWASHER, PLATE (FOR REVERSE IDLER)
POS.1
33411COUNTERSHAFT
POS.1
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
POS.1
33411ENUT(FOR COUNTER GEAR SHAFT)
POS.1
33411GSHIM(FOR COUNTER GEAR SHAFT BEARING SETTING)
T=0.65,POS.1
T=0.70,POS.3
T=0.75,POS.1
T=0.80,POS.1
T=0.85,POS.8
T=0.90,POS.2
T=0.95,POS.2
T=1.00,POS.8
T=1.05,POS.1
T=1.10,POS.8
T=1.15,POS.3
T=1.20,POS.2
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
POS.1
33421BSPRING, COUNTER GEAR THRUST CORN
POS.1
33422GEAR, COUNTERSHAFT 4TH SPEED
POS.1
33423GEAR, COUNTERSHAFT 3RD SPEED
POS.1
33424GEAR, COUNTERSHAFT 2ND SPEED
POS.1
33426AGEAR, COUNTERSHAFT, 1ST SPEED
POS.1
33428GEAR, COUNTERSHAFT 5TH
POS.1
33451SHAFT, REVERSE IDLER GEAR
POS.1
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
POS.1
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
POS.1
90118WCB61
main90118-WCB61
43 parts on this diagram · 2 diagrams in section
