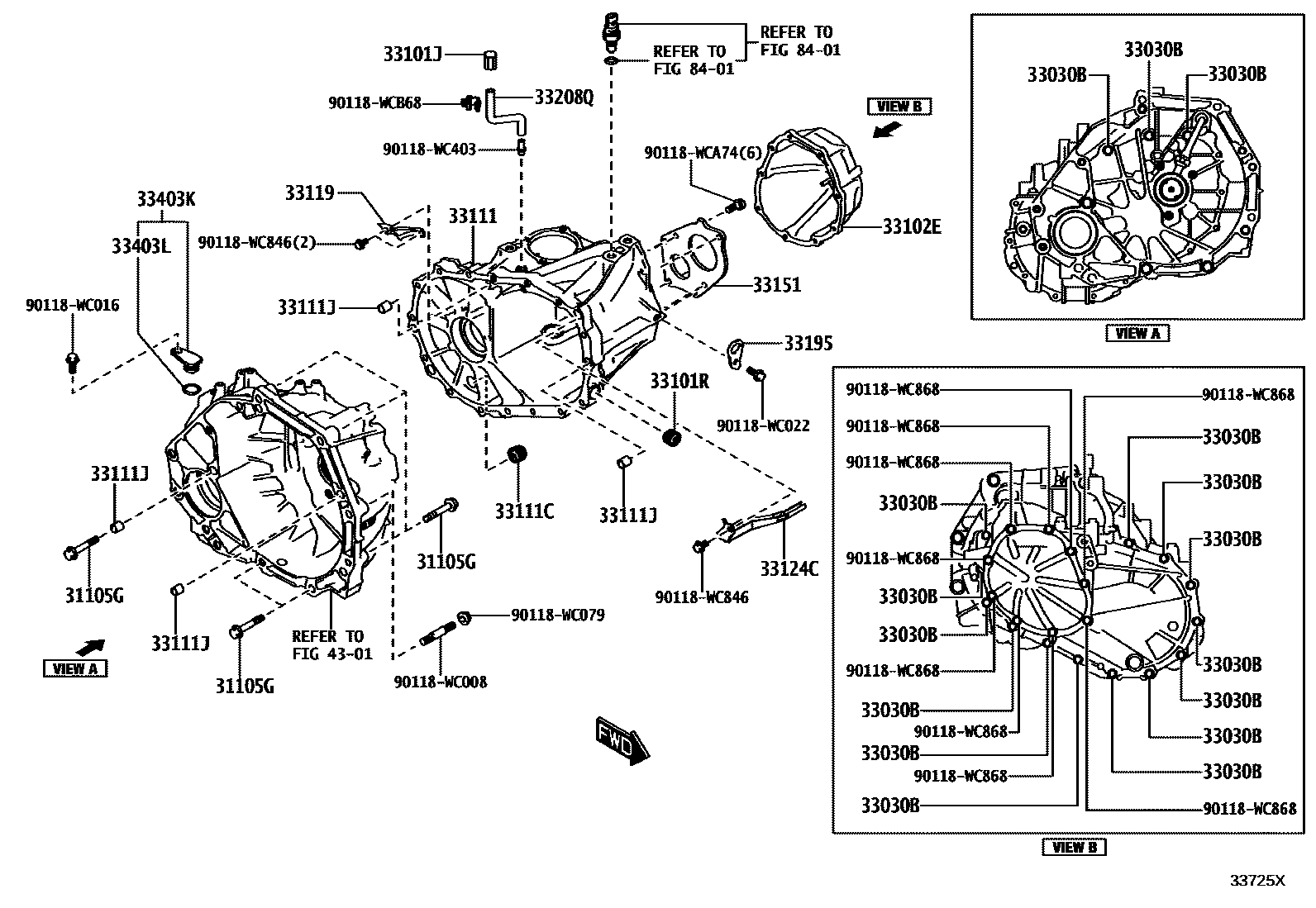

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

33101JPLUG, BREATHER

33101RPLUG, NO.2(FOR TRANSMISSION CASE)

33102ECOVER SUB-ASSY, MANUAL TRANSMISSION CASE

33111CASE, MANUAL TRANSMISSION

main33111-WC015

main90118-WC066

main90118-WC200

33111CPLUG(FOR TRANSMISSION CASE)

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

33119PLATE, STIFFENER, LH(MTM)

main33199-WC002

33124CPIPE, OIL RECEIVER, NO.1(MTM)

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main90118-WCE29

33195HANGER, TRANSMISSION CASE, NO.1

main33195-WC003

33208QHOSE, BREATHER

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

33403LRING, O

4301

8401

90118WC008

main90118-WC008

90118WC016

main90118-WC016

90118WC022

main90118-WC022

90118WC079

main90118-WC079

90118WC403

main90118-WC403

90118WC846

main90118-WC846

90118WC868

main90118-WC868

90118WCA74

main90118-WCA74

90118WCB68

main90118-WCB68

26 parts on this diagram · 1 diagram in section
