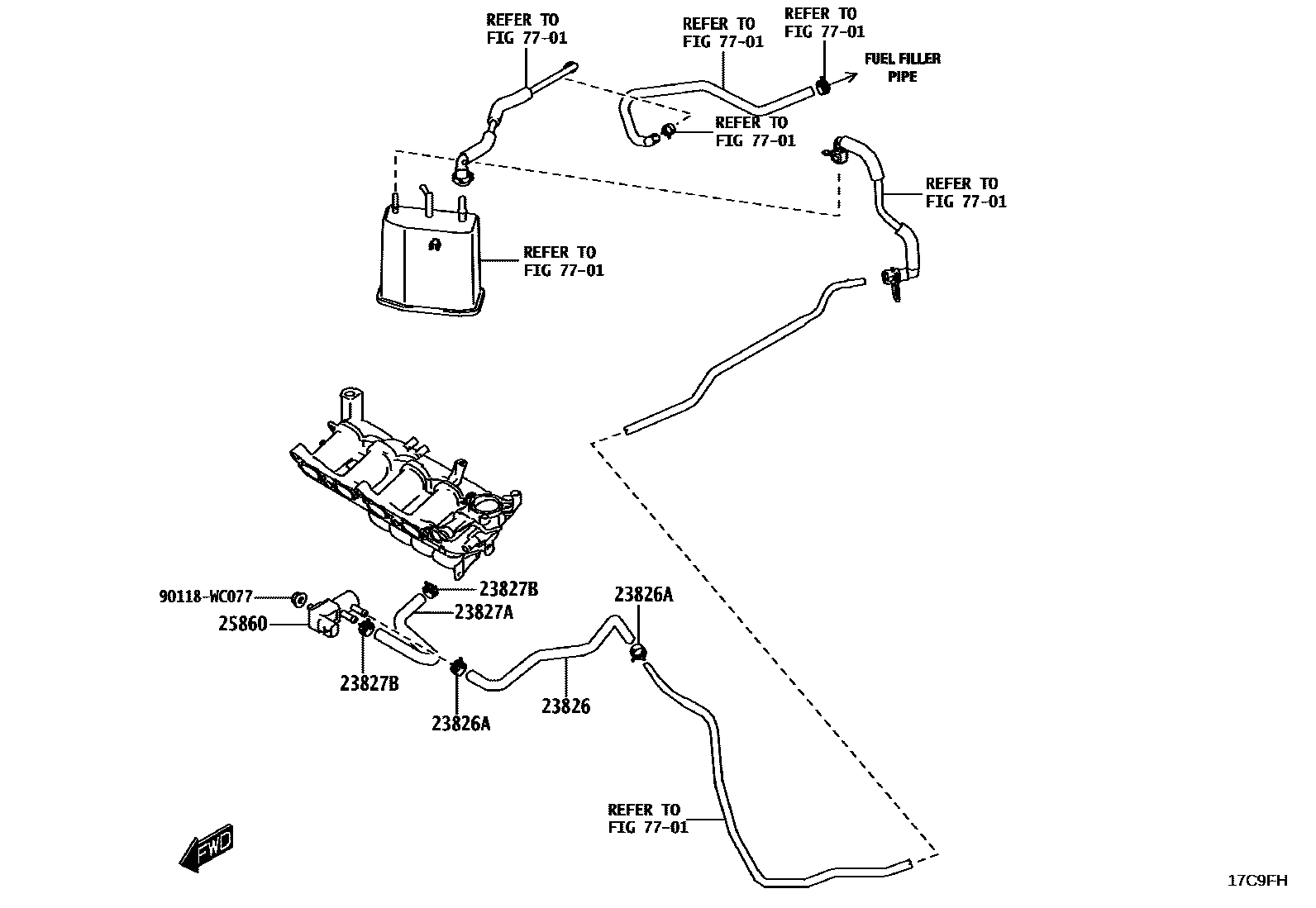

VACUUM PIPING

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-WC003iK15B..K15B..5F..P; K15B..K15B..RHD..4FC..M; K15B..K15B..RHD..4FC..P; K15B..K15B..RHD..5F..M202404

POS.1; POS.3; POS.4; POS.6

main77701-WC003iK15B..K15B..LHD..4FC..M; K15B..K15B..LHD..5F; K15B..K15B..LHD..P202404

POS.10; POS.2; POS.5; POS.7; POS.8; POS.9

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90118-WC234×2iK15B..K15B202404

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-WC010iK15B..K15B202404

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90118-WC234×2iK15B..K15B202404

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-WC001iK15B..K15B202404

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90118WC077

main90118-WC077

7 parts on this diagram · 1 diagram in section
