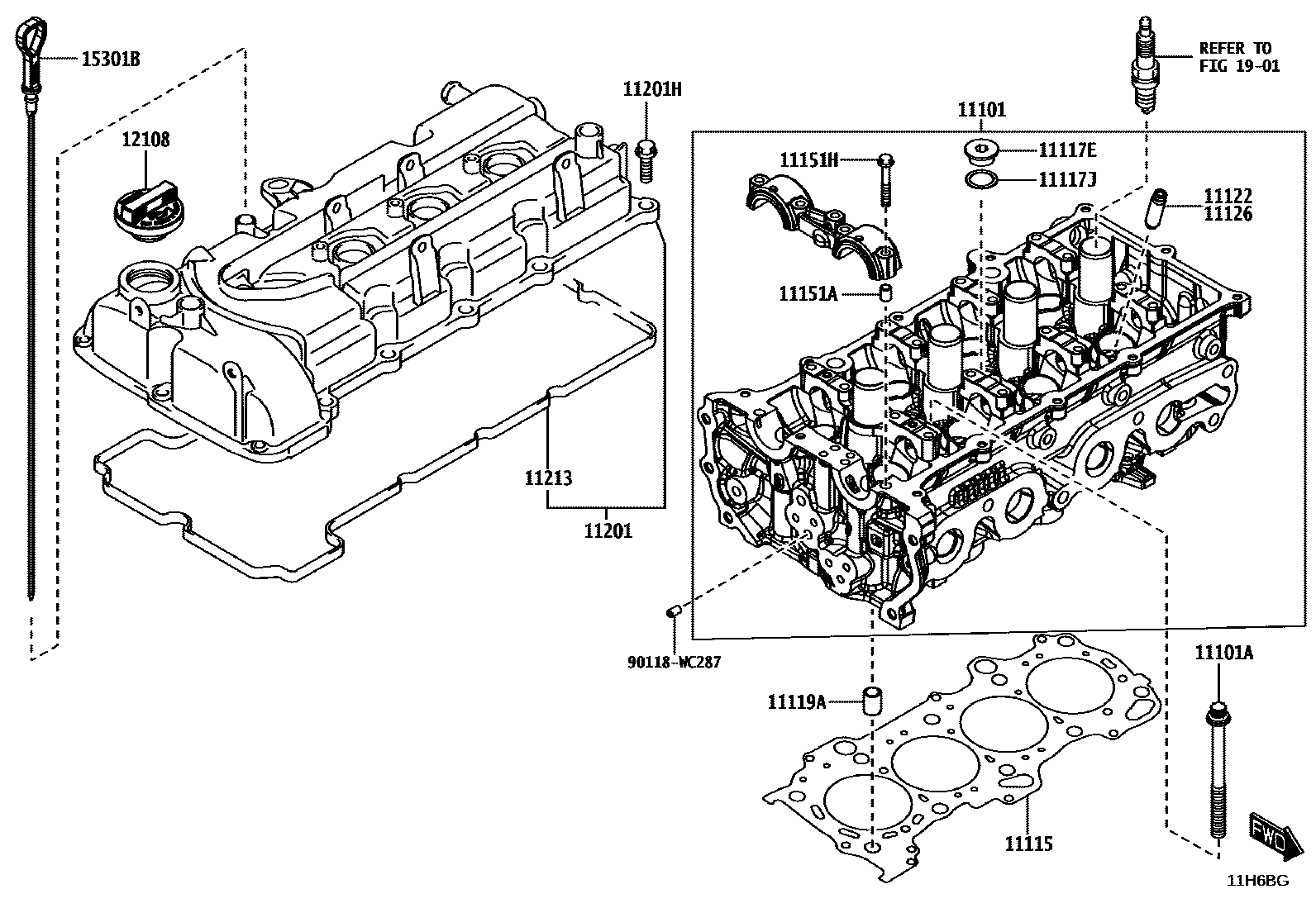

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-WC004iK15B..K15B202404

11101ABOLT(FOR CYLINDER HEAD SET)

main90118-WCA42×10iK15B..K15B202404

11115GASKET, CYLINDER HEAD

main11115-WC003iK15B..K15B202404

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90118-WC202×3iK15B..K15B202404

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90118-WC640×3iK15B..K15B202404

11119APIN, STRAIGHT, NO.1

main90118-WC067×2iK15B..K15B202404

11122BUSH, INTAKE VALVE GUIDE

main11122-WC002×8iK15B..K15B202404

STD

11126BUSH, EXHAUST VALVE GUIDE

main11122-WC002×8iK15B..K15B202404

STD

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90118-WC195×16iK15B..K15B202404

L=11,OD=8

11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

main90118-WCA43×21iK15B..K15B202404

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-WC003iK15B..K15B202404

11201HBOLT(FOR CYLINDER HEAD COVER)

main90118-WC292×14iK15B..K15B202404

11213GASKET, CYLINDER HEAD COVER

main11213-WC003iK15B..K15B202404

12108CAP SUB-ASSY, OIL FILLER

main12180-WC004iK15B..K15B202404

15301BGAGE SUB-ASSY, OIL LEVEL

main15301-WC001iK15B..K15B202404

1901IGNITION COIL & SPARK PLUG / GLOW PLUG

→ Go to FIG 19-01

90118WC287

main90118-WC287
