1605V-BELT

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

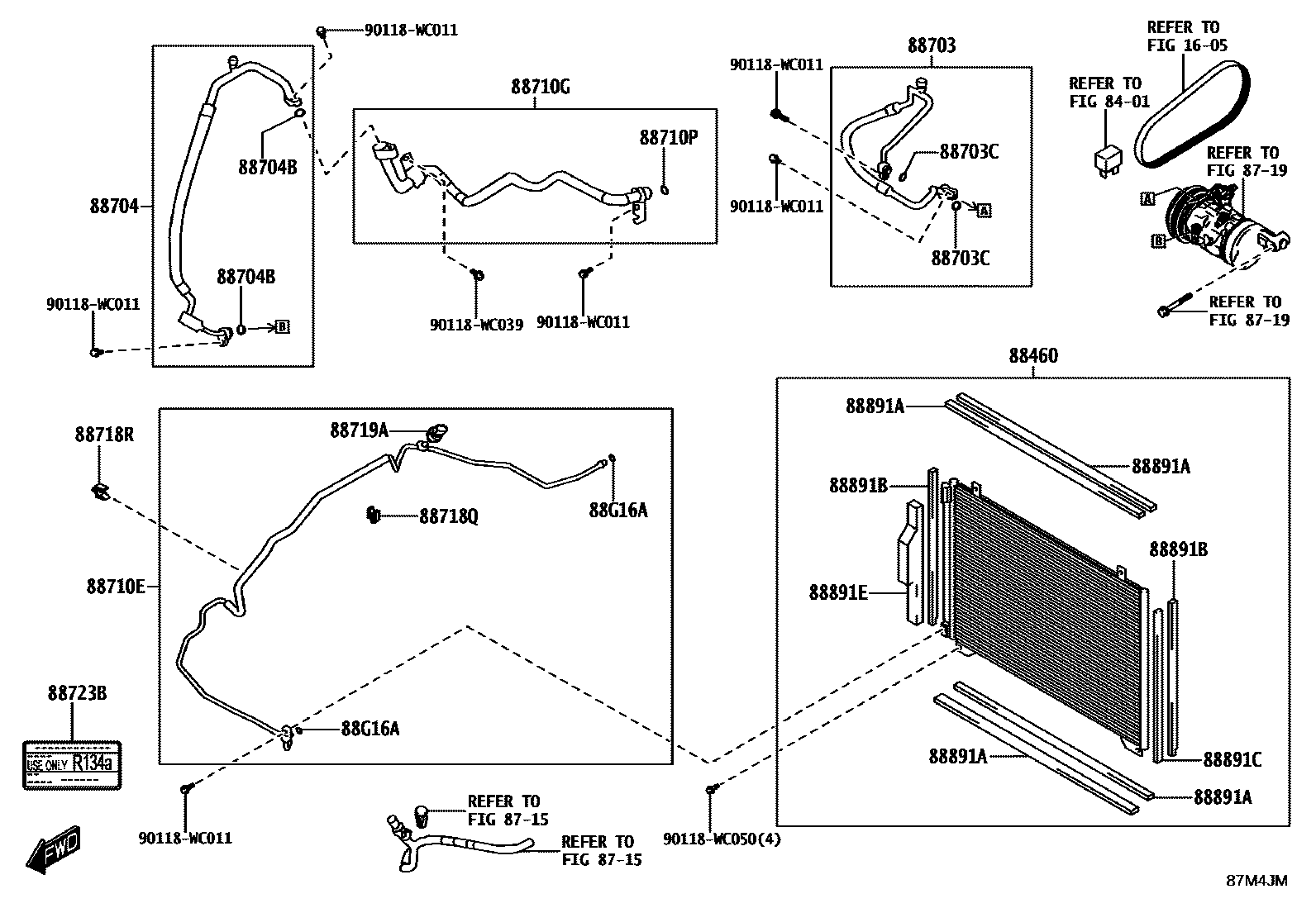

88460CONDENSER ASSY, COOLER

main88460-WC006i202404

88703HOSE SUB-ASSY, DISCHARGE

main88711-WC005i202404

POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.20; POS.27; POS.28; POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.7; POS.8; POS.9

main88711-WC012i202404

POS.1; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6

88703CRING, O(FOR DISCHARGE HOSE)

main90118-WC634×2i202404

ID=10.8,OD=13.2

88704HOSE SUB-ASSY, SUCTION

main88704-WC016i202404

POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.17; POS.18; POS.19; POS.20; POS.27; POS.28; POS.29; POS.30; POS.31; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.40; POS.7; POS.8; POS.9

main88704-WC028i202404

POS.1; POS.2; POS.21; POS.22; POS.23; POS.24; POS.25; POS.26; POS.3; POS.4; POS.5; POS.6

88704BRING, O(FOR SUCTION HOSE)

main90118-WC635×2i202404

ID=13.4,OD=15.8

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88706-WC016i202404

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88707-WC002i202404

88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90118-WC635i202404

ID=13.4,OD=15.8
